Introduction:

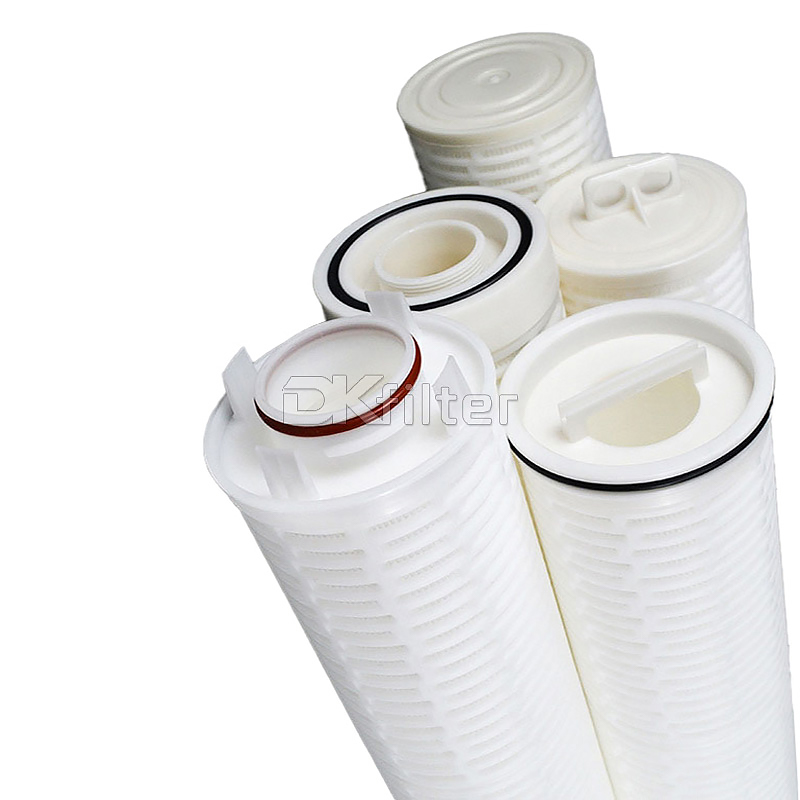

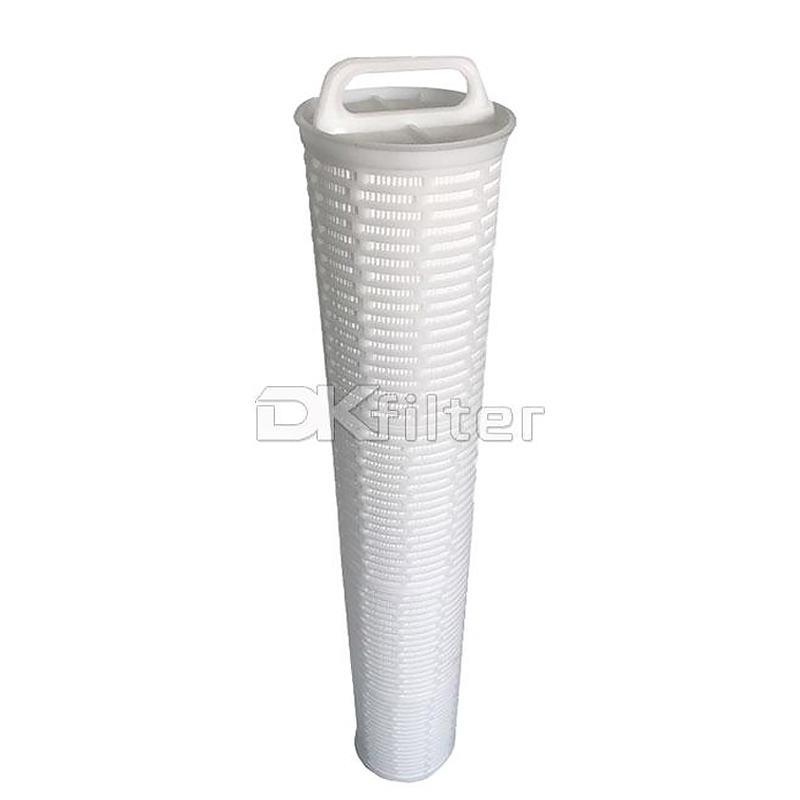

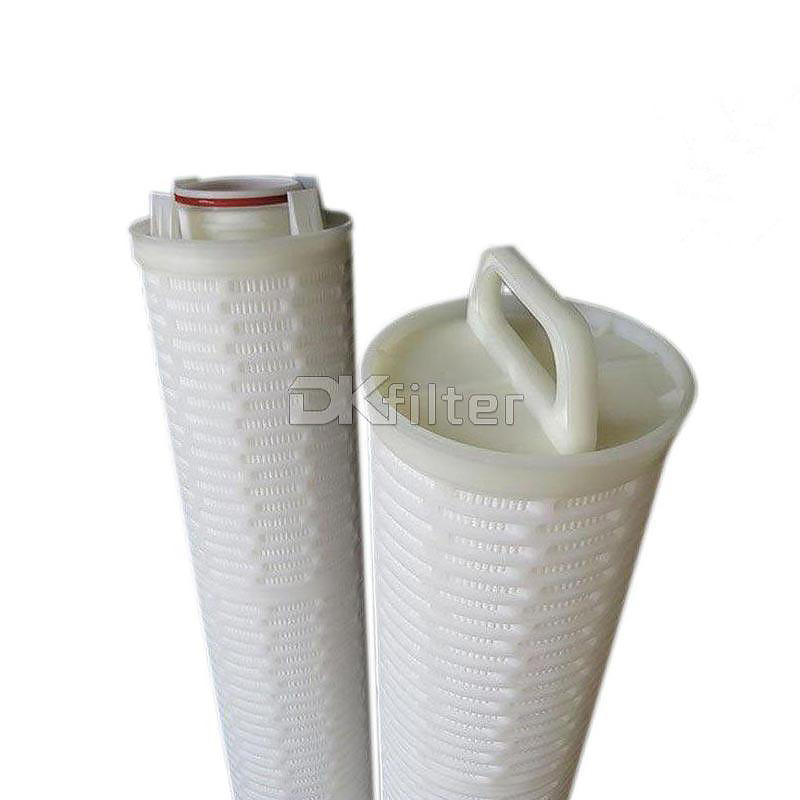

HFU660UY100H high flow filter cartridges is used for cleaning water fluids, effectively intercepting tiny particles and colloidal debris, with a filtration efficiency of up to 99.8%. The microporous pleated filter element uses ultra-fine polypropylene fiber membrane, and the ultra-fine fiber has stable filtration accuracy; the multi-layer structure design provides It has a high dirt-holding space and filtering area, and has the characteristics of large dirt-holding capacity and long use time.
HFU660UY100H is belong to warter filter series and flow pattern of filtered fluid is from outside to inside. The large diameter design of the filter element and the increased effective filtering area can greatly reduce the number of filter elements and reduce the size of the housing. Due to its large flow rate and long filtration life, it can reduce investment and labor costs in many applications.
HFU660UY100H Application fields:
1)RO cartridge filtration and seawater desalination pretreatment
2)Filtration of condensed water in power plants
3)Filtration of bulk drug, solvent and water in bio-pharmacy industry
4)Filtration of bottled water,liquid glucose,edible oil,juice,soft drink and milk
5)Painting, petrochemical industry
6)Micro-electronics, film, fiber, resin
HFU660UY100H Product features:
1)The structure of gradual aperture.
2)Maximum flow of one filter can be up to 110m3/h during the water filtering.
3)Filtration system size can be reduced by 50% in maximum.

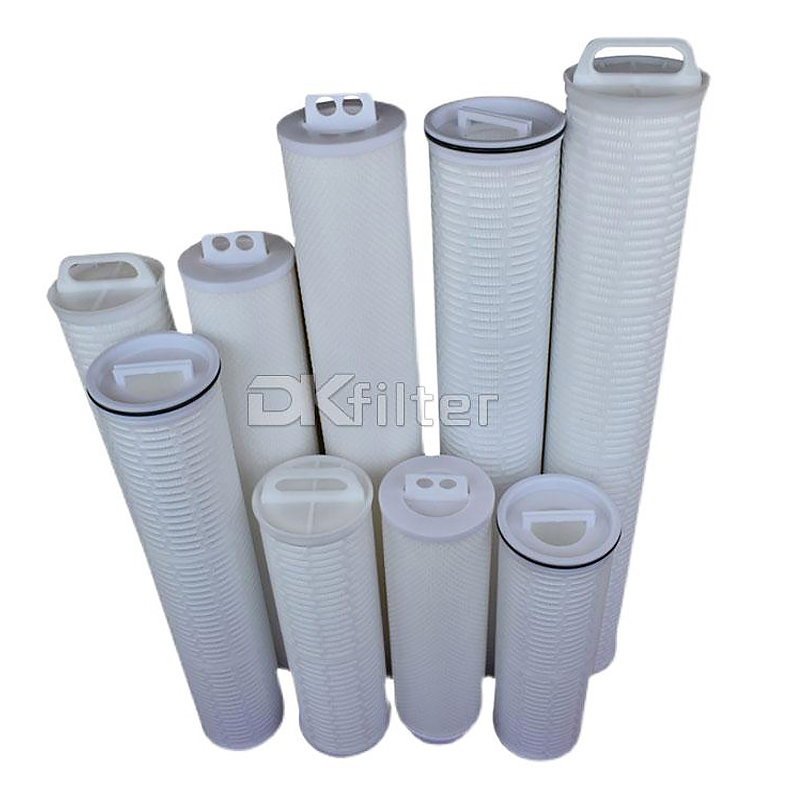

4)Filters with the length of 20", 40" and 60" can be offered.
Inside-out directions guarantee all impurities to be left inside the filters.
Technical specifications:
1) Filter size:
OD: 6 inches (152 mm)
Length: 20 inches (528 mm) 40 inches (1022 mm) 60 inches (1538 mm)
2) Parts materials:

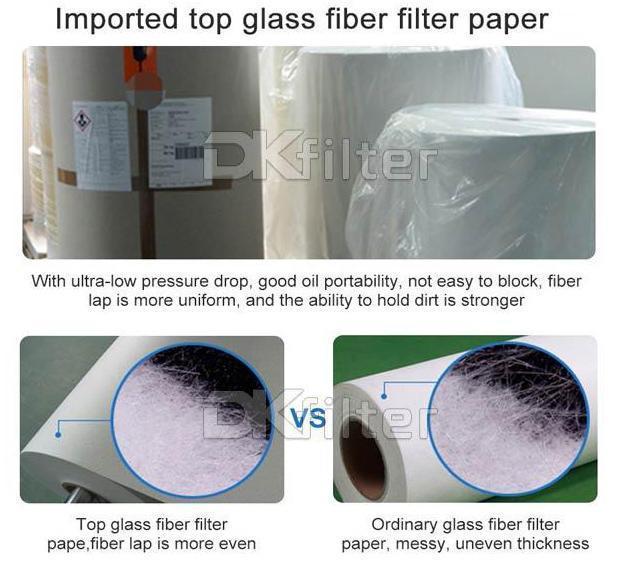

Filter material: pleated fiberglass pleated deep polypropylene (PP) MBPP
Supporting/diversion layer: polypropylene (PP)
End caps: reinforced polypropylene with fiberglass
Sealing material: EPR BNR
3) Performance:
Filtering accuracy: 1micron 4.5micron 6micron 10micron 20micron 40micron 70micron 100micron
Highest operating temperature: 121℃ for pleated fiberglass 82℃ for pleated deep polypropylene (PP) 65℃ for MBPP
Maximum pressure drop: 3.4bar for pleated fiberglass 3.4bar for pleated deep polypropylene (PP) 1.03bar for MBPP
Recommended pressure drop for filter replacement: 2.4bar 20℃
Recommended maximum filtering water flow: 660L/min for 20inch filter 1300L/min for 40inch filter 1900L/min for 60inch filter
