Introduction:

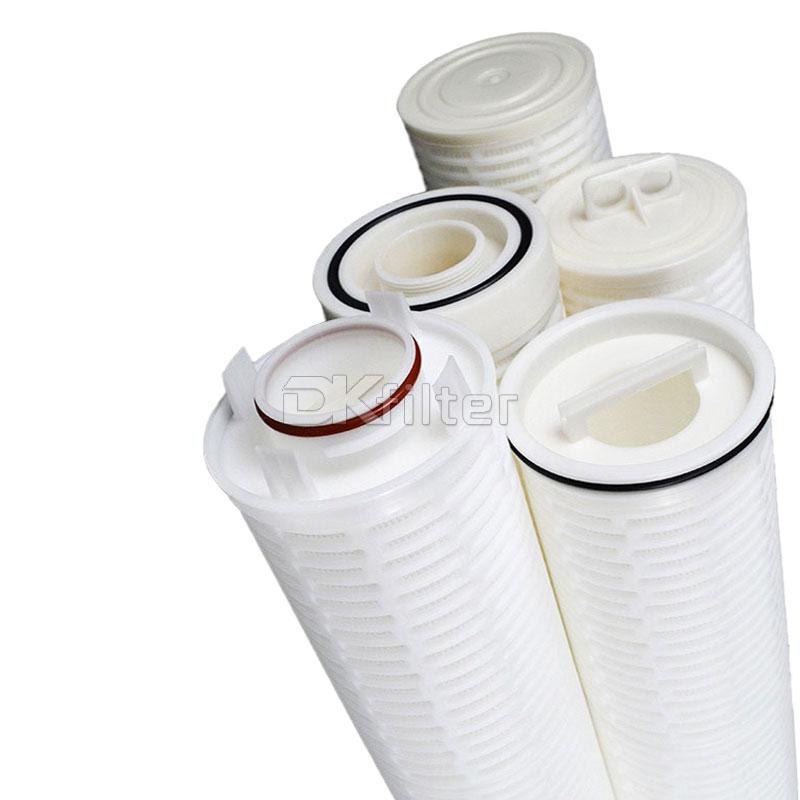

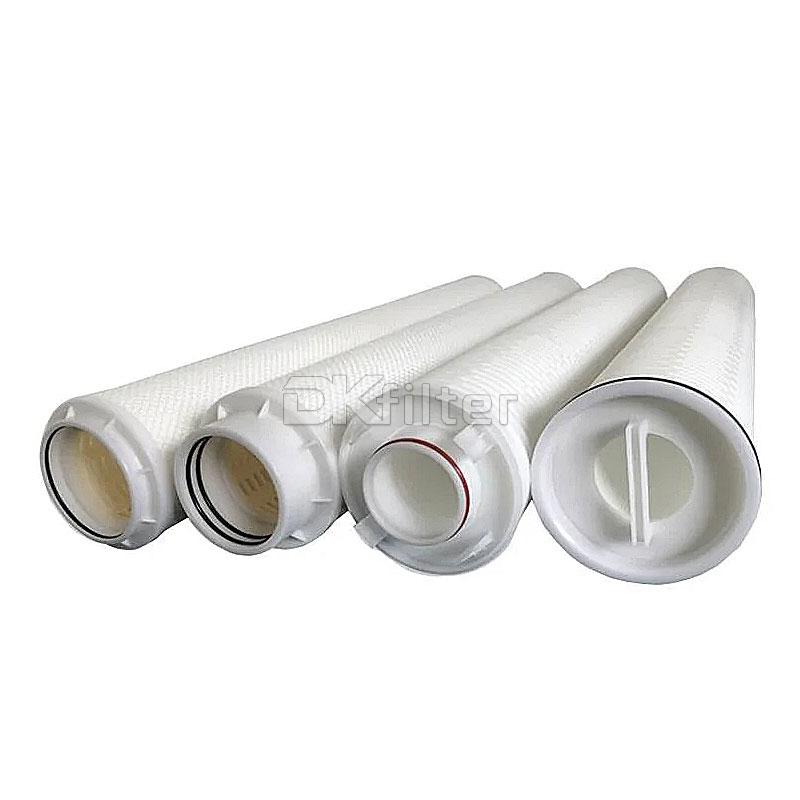

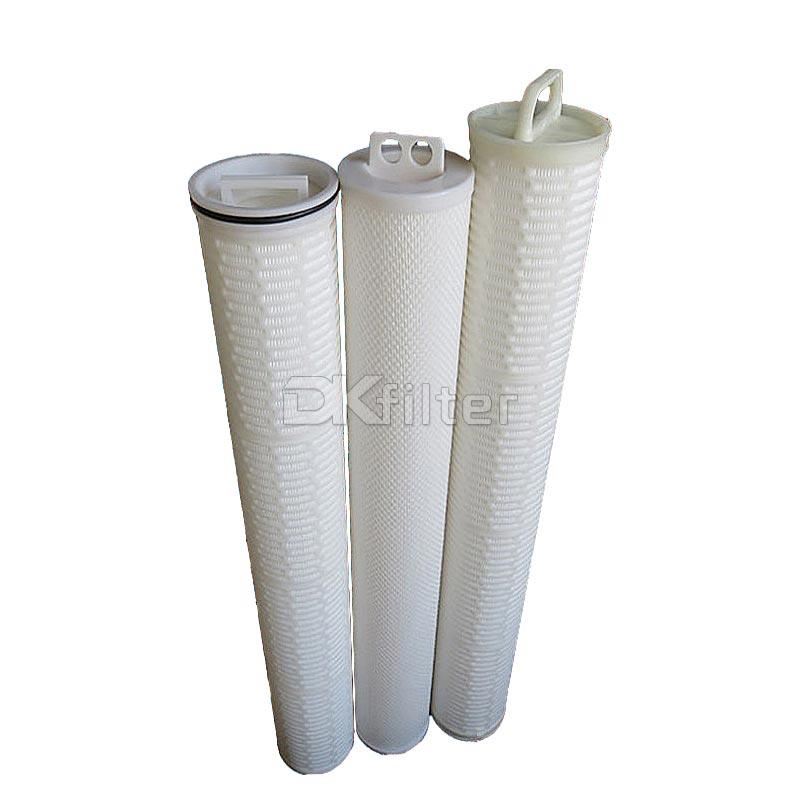

RMHM-P050-40EP high flow water cartridge filter structure adopts multi-layer stepped folding w-pleated corrugated shape UP media technology design to achieve the maximum processing capacity of pollutants and excellent pollutant absorption capacity and interception efficiency, ensuring that the required filtration cleaning standards are met. The water cartridge filter material complies with FDA requirements, has strong mechanical strength and extensive chemical resistance, and is suitable for various filtration scenarios.
Material Flow Characteristics:
RMHM-P050-40EP high flow water cartridge filter production process is environmentally friendly, pollution-free and leak-free. 100% integrity tested during production, manufactured, rinsed, tested and packaged in a clean room.
RMHM-P050-40EP high flow water cartridge filter can meet many key industries such as water treatment, food and beverage, pharmaceutical filtration, solvents, semiconductors, cosmetics, bottled water, etc.
....
Core filter material：

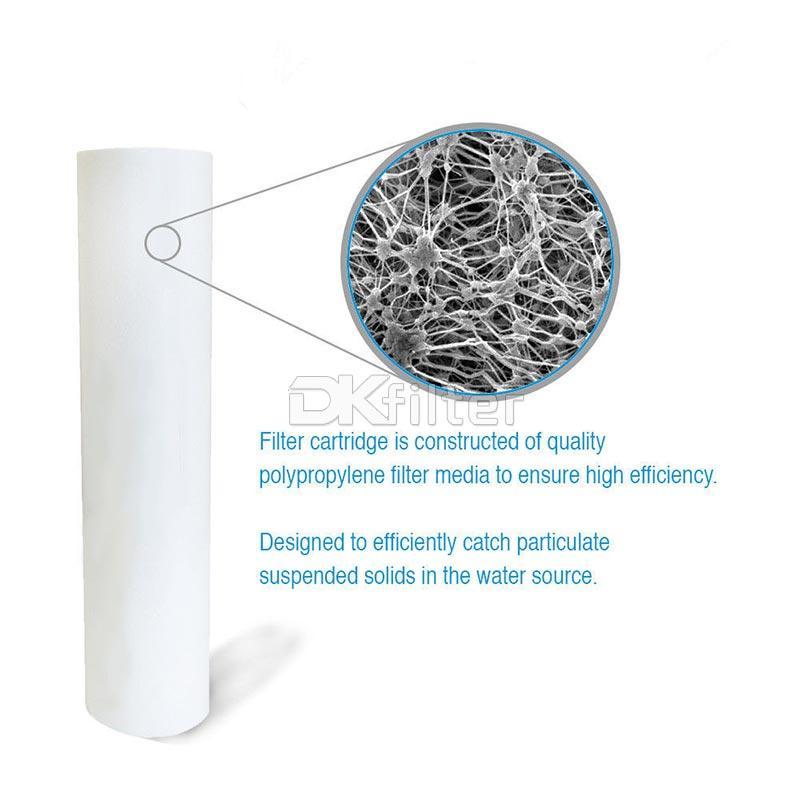

RMHM-P050-40EP high flow water cartridge filter manufacturing materials are made of high-quality, safe and environmentally friendly filter membranes, and imported non-woven fabrics or mesh fabrics are used as the support layer, with full batch material traceability. The filter housing, center rod, and end caps adopt hot-melt welding technology without using any adhesives, additives, or lubricants, and without any fiber shedding.
....
Technical Parameters：
| parameter | values |
|---|
| Filter Material | Pleated Fiberglass, Pleated Deep Polypropylene (PP), MBPP |
| Maximum pressure drop | pleated fiberglass 4.0bar, pleated deep polypropylene (PP) 3.4bar, MBPP 1.03bar |
| Maximum temperature | wrinkled fiberglass 121℃, deeply wrinkled polypropylene (PP) 82℃, MBPP 65℃ |
| Support Layer | Polypropylene (PP) |
| Sealing material | EPDM, BNR |
| End cap | fiberglass reinforced polypropylene |
| Center pole | polypropylene |
| Filter element surface | PP melt-blown, melt-blown fine lines, melt-blown grooves, melt-blown embossing |
| Gasket | silicone rubber |
| Filtration precision | 0.1μm, 0.22μm, 0.45μm, 1μm, 3μm, 5μm, 10μm, 20μm, 50μm |
Filtration performance advantages:
• High-quality filter media combined with internal multi-layered pleated depth filtration.
• High-quality filter material and hot-melt bonding process, high cleanliness, no adhesive added, no pollution to water quality.
• Deep groove folding design increases the filtration area and the pressure drop is significantly lower than ordinary filter elements
• Large diameter design increases the anti-fouling properties of the filter element, prolongs service life and reduces usage costs.
• The surface fiber structure is strengthened to prevent the filter material fibers from falling off.
• High-strength rigid external support enhances the filter element's ability to withstand pressure, making it ideal for harsh conditions and demanding applications with repeated cleaning.
Application:
• Reverse Osmosis (RO)Prefiltration
• Process Water
• Chemicals & Solvents
• Condensate
DKFILTER also offers a full range of replacement filter elements:
Parker
3M
Pall
Pentair
Peco
RMHM-P050-40EP High Flow Water Cartridge Filter Replacement
