Introduction:
RSMG030-20EPP high flow PP pleated water filter cartridge manufacturing materials are made of high-quality, safe and environmentally friendly filter membranes, and imported non-woven fabrics or mesh fabrics are used as the support layer, with full batch material traceability. The filter housing, center rod, and end caps adopt hot-melt welding technology without using any adhesives, additives, or lubricants, and without any fiber shedding.
The production process is environmentally friendly, pollution-free and leak-free. 100% integrity tested during production, manufactured, rinsed, tested and packaged in a clean room.
More Relatied Model:
RSMG045-40SPP, RSMG400-60EPP
RSMG030-40SPP, RSMG200-60EPP
RSMG045-40EPP, RSMG030-40EPP
RSMG100-60EPP, RSMG400-20SPP
RSMG045-60EPP, RSMG030-60SPP
RSMG010-40EPP, RSMG400-20EPP
RSMG200-20SPP, RSMG200-20EPP
RSMG010-60EPP, RSMG100-40EPP
Structure Parameters:
| parameter | values |
|---|
| Filter Material | Pleated Fiberglass, Pleated Deep Polypropylene (PP), MBPP |
| Maximum pressure drop | pleated fiberglass 4.0bar, pleated deep polypropylene (PP) 3.4bar, MBPP 1.03bar |
| Maximum temperature | wrinkled fiberglass 121℃, deeply wrinkled polypropylene (PP) 82℃, MBPP 65℃ |
| Diversion Layer | Polypropylene (PP) |
| Sealing material | EPDM, BNR |
| End cap | fiberglass reinforced polypropylene |
| Center pole | polypropylene |
| Filter element surface | PP melt-blown, melt-blown fine lines, melt-blown grooves, melt-blown embossing |
| Gasket | silicone rubber |
| Filtration precision | 0.1μm, 0.22μm, 0.45μm, 1μm, 3μm, 5μm, 10μm, 20μm, 50μm |

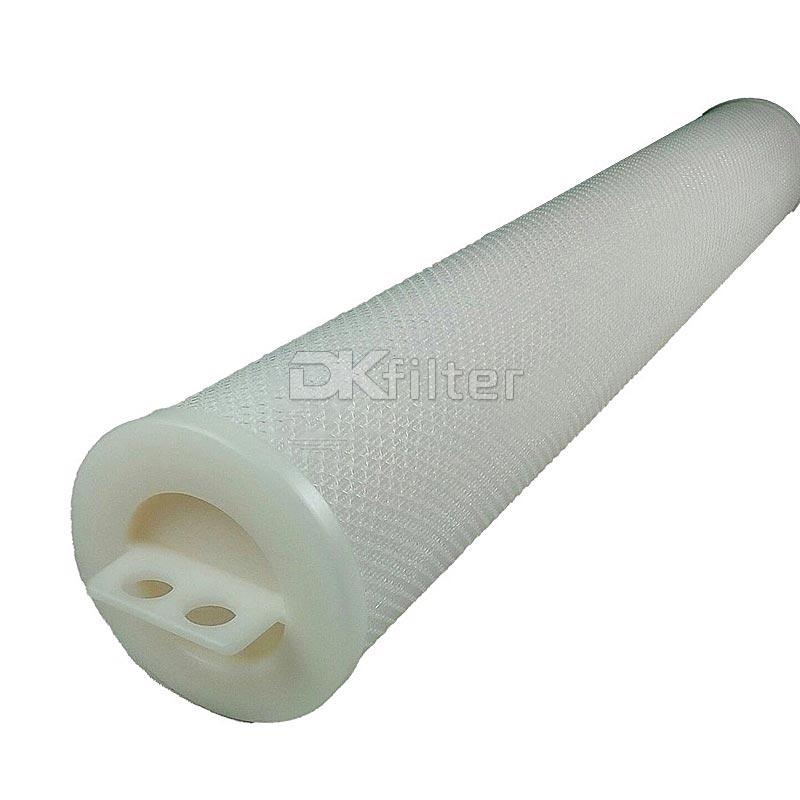

The filter material is as shown in the figure:
RSMG030-20EPP high flow PP pleated water filter cartridge structure adopts multi-layer stepped folding w-pleated corrugated shape UP media technology design to achieve the maximum processing capacity of pollutants and excellent pollutant absorption capacity and interception efficiency, ensuring that the required filtration cleaning standards are met. The filter material complies with FDA requirements, has strong mechanical strength and extensive chemical resistance, and is suitable for various filtration scenarios.
....
PP material flow characteristics:
RSMG030-20EPP High Flow PP Pleated Water Filter Cartridge is used in water fluids to efficiently remove impurities such as tiny particles and bacteria in the water fluids. The cleaning and filtration efficiency is as high as 99.8%, ensuring the original quality attributes of the water fluids. It is a high-efficiency microporous pleated water filter type.
....
Structural Advantages：
• High-quality filter material and hot-melt bonding process, high cleanliness, no adhesive added, no pollution to water quality.
• Deep groove folding design increases the filtration area and the pressure drop is significantly lower than ordinary filter elements
• Large diameter design increases the anti-fouling properties of the filter element, prolongs service life and reduces usage costs.
• The surface fiber structure is strengthened to prevent the filter material fibers from falling off.
• High-strength rigid external support enhances the filter element's ability to withstand pressure, making it ideal for harsh conditions and demanding applications with repeated cleaning.
