Introduction:

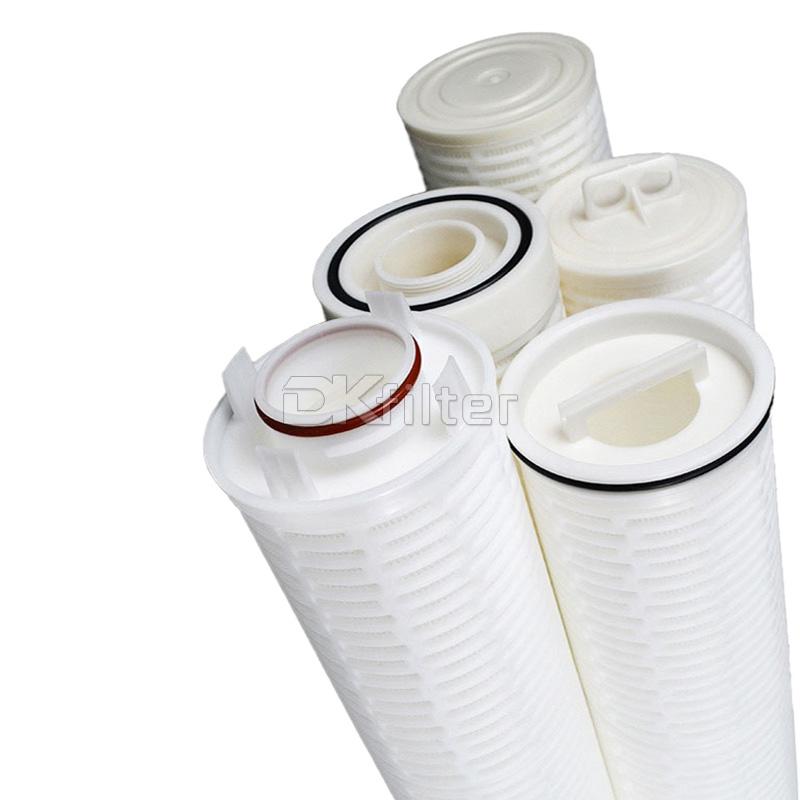

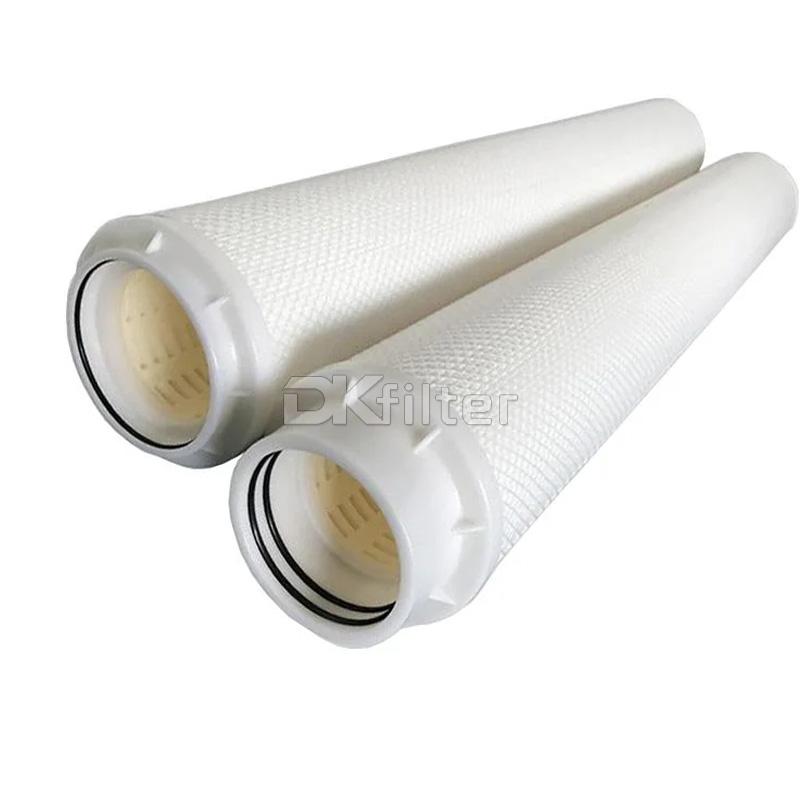

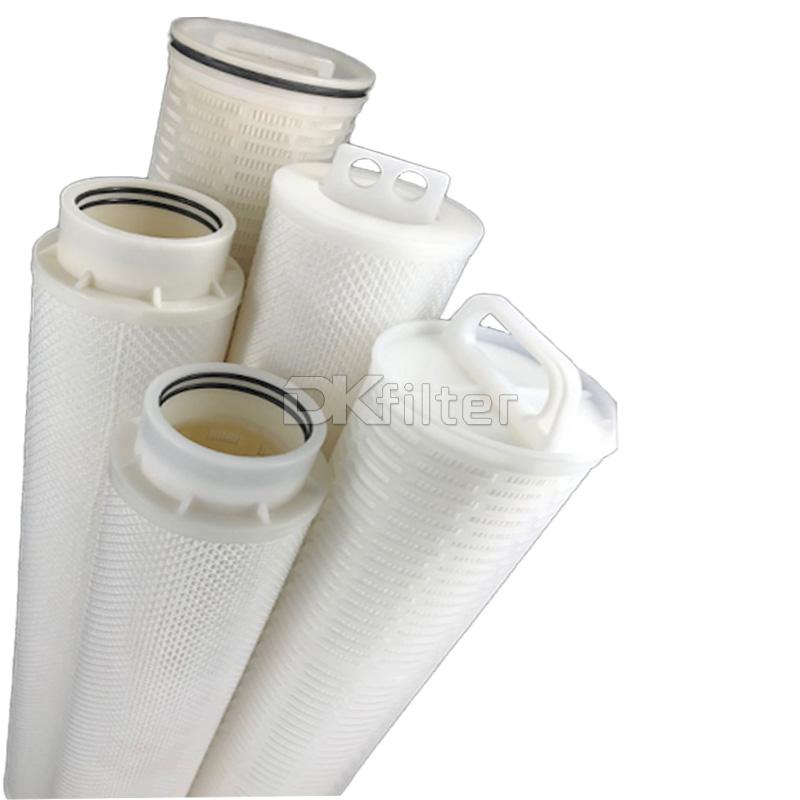

MFNP005-40N parker high flow PP water filters are used to clean and filter water fluids, effectively removing impurities such as tiny particles and bacteria in water fluids, and ensuring the original quality attributes of water fluids. It is a high-efficiency microporous pleated water filter type with a filtration efficiency as high as 99.8%.
PP material flow characteristics:
MFNP005-40N parker high flow PP water filters production process is environmentally friendly, pollution-free and leak-free. 100% integrity tested during production, manufactured, rinsed, tested and packaged in a clean room. The manufacturing materials are made of high-quality, safe and environmentally friendly filter membranes, with full batch material traceability. The filter housing, center rod, and end caps adopt hot-melt welding technology without using any adhesives, additives, or lubricants, and without any fiber shedding.
....
Filter material comparison：
MFNP005-40N parker high flow PP water filters material complies with FDA requirements, has strong mechanical strength and extensive chemical resistance, and is suitable for various filtration scenarios. The structure adopts multi-layer stepped folding w-pleated corrugated shape UP media technology design to achieve the maximum processing capacity of pollutants and excellent pollutant absorption capacity and interception efficiency, ensuring that the required filtration cleaning standards are met.
....
| parameter | values |
|---|
| Filter Material | Pleated Fiberglass, Pleated Deep Polypropylene (PP), MBPP |
| Maximum pressure drop | pleated fiberglass 4.0bar, pleated deep polypropylene (PP) 3.4bar, MBPP 1.03bar |
| Maximum temperature | wrinkled fiberglass 121℃, deeply wrinkled polypropylene (PP) 82℃, MBPP 65℃ |
| Support/Diversion Layer | Polypropylene (PP) |
| Sealing material | EPDM, BNR |
| End cap | fiberglass reinforced polypropylene |
| Center pole | polypropylene |
| Filter element surface | PP melt-blown, melt-blown fine lines, melt-blown grooves, melt-blown embossing |
| Gasket | silicone rubber |
| Filtration precision | 0.1μm, 0.22μm, 0.45μm, 1μm, 3μm, 5μm, 10μm, 20μm, 50μm |
Advatage Features:
• 100% PP high-quality filter material, high corrosion resistance.
• Made of PP microfiber with high filtration accuracy.
• High-quality filter material and hot-melt bonding process, high cleanliness, no adhesive added, no pollution to water quality.

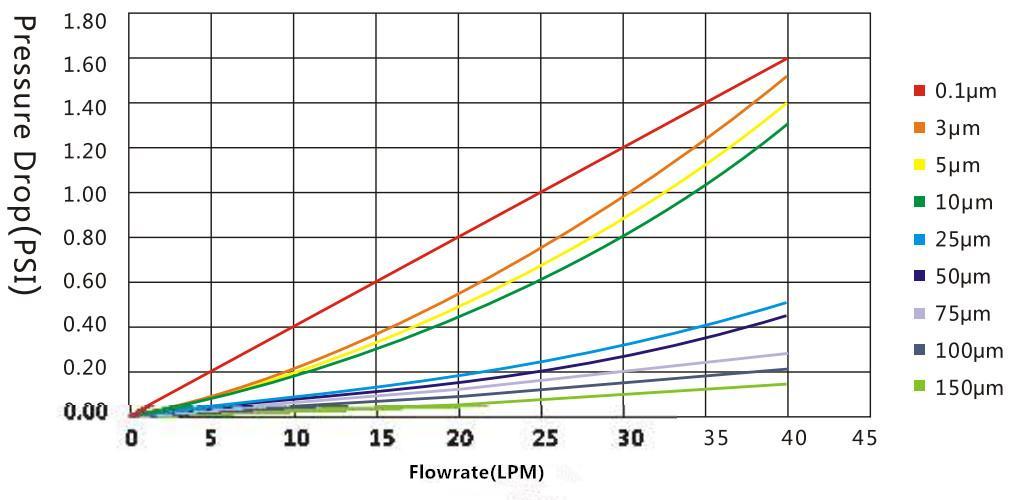

• Deep groove folding design increases the filtration area and the pressure drop is significantly lower than ordinary filter elements
• Large diameter design increases the anti-fouling properties of the filter element, prolongs service life and reduces usage costs.
• The surface fiber structure is strengthened to prevent the filter material fibers from falling off.
• High-strength rigid external support enhances the filter element's ability to withstand pressure, making it ideal for harsh conditions and demanding applications with repeated cleaning.
• Fully sealed interface design reduces the risk of side flow and ensures the tightness and reliability of filtration.
• The filter material complies with FDA requirements, has excellent chemical compatibility, and is suitable for filtering strong acids, strong bases and organic solvents.
MFNP005-40N Parker High Flow PP Water Filter Cartridge
