Introduction:
Dow Filmtec BW30HR-440i RO membrane water filter adopts BW30HR membrane technology and 28mil water inlet channel, which has better dirt resistance, cleanability and higher filtration cleaning efficiency. The biggest advantages are high water production and high salt rejection rate.
BW30HR-440i Performances:
• Delivers high quality permeate water while minimizing CAPEX and OPEX.
• Includes interlocking end caps, reducing system operating costs and the risk of o-ring leaks that can cause poor water quality.
• Offers increased active area with highly effective cleaning performance,robustness and durability due to its widest cleaning pH range (1-13) .
Product Type:
Spiral-wound element with polyamide thin-film composite membrane
....
BW30HR-440i Properties:
| Filtration area | Feed Spacer Thickness | Permeate Flow Rate | Typical Stabilized Salt Rejection | Min. Salt Rejection |
|---|
| 41㎡ | 28mil | 48m³/d | 99.7% | 99.4% |
• Sales specifications may vary as design revisions take place.
• Flow rates for individual elements may vary but will be no more than ± 15%.
• Stabilized salt rejection is generally achieved within 24-48 hours of continuous use; depending upon feed water characteristics and operating conditions.
• Permeate flow and salt (NaCl) rejection based on the following standard test conditions: 2,000 ppm NaCl, 225 psi (15.5 bar), 77°F (25°C), pH 8, 15% recovery.
• Active area guaranteed ± 3%.Active area as stated by DuPont Water Solutions is not comparable to nominal membrane area often stated by some manufacturers.

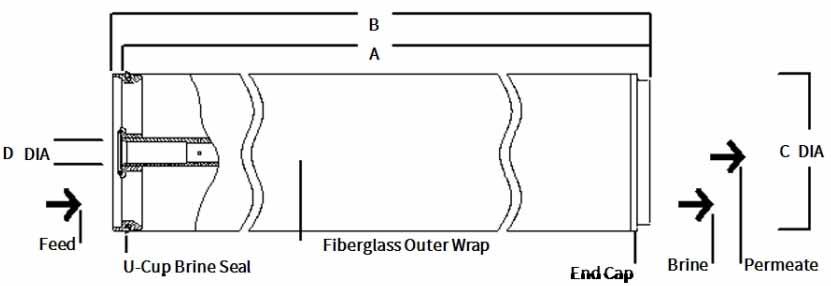

BW30HR-440i Dimensions:
....
....

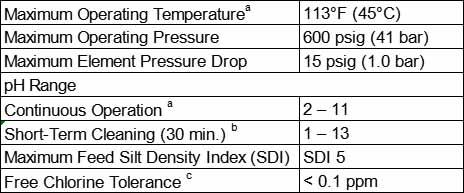

Operating and Cleaning Limits:
....
• Refer to Cleaning Guidelines in specification sheet 609-23010.
• Maximum temperature for continuous operation above pH 10 is 95°F (35°C).
• Under certain conditions,the presence of free chlorine and other oxidizing agents will cause premature membrane failure.
Since oxidation damage is not covered under warranty,Dow Water & Process Solutions recommends removing residual free chlorine by pretreatment prior to membrane exposure.
Customized Processing:
We corporation are excellent Dow Filmtec RO membrane water filter manufacturer
DOW
HYDRANAUTICS
TOYAY
CSM
VONTRON
HYDECANME
Other types are available on request
Dow Filmtec BW30HR-440i Brackish Water RO Membrane
