Brief Description:

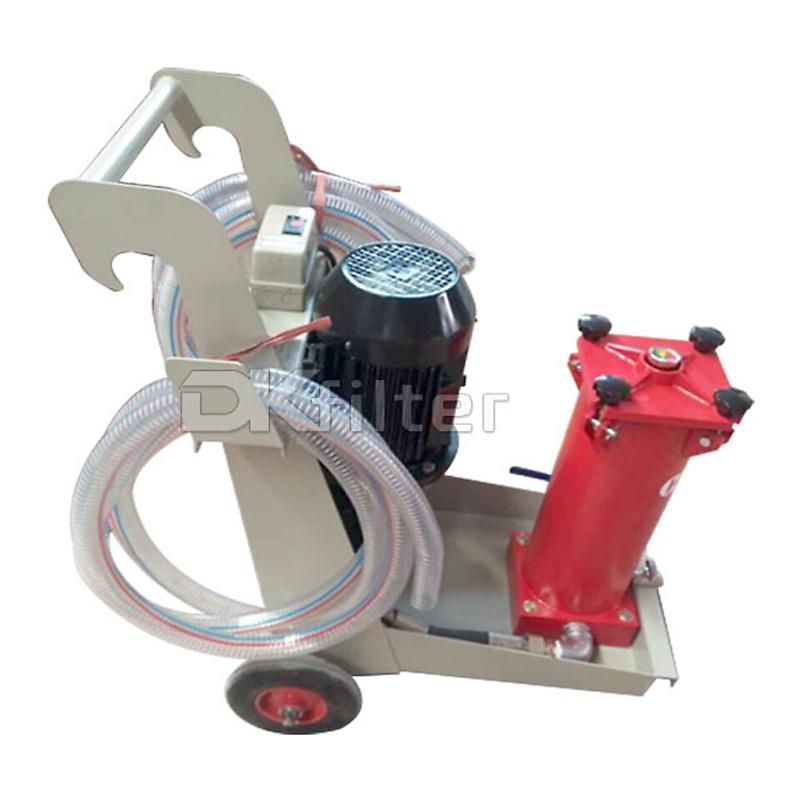

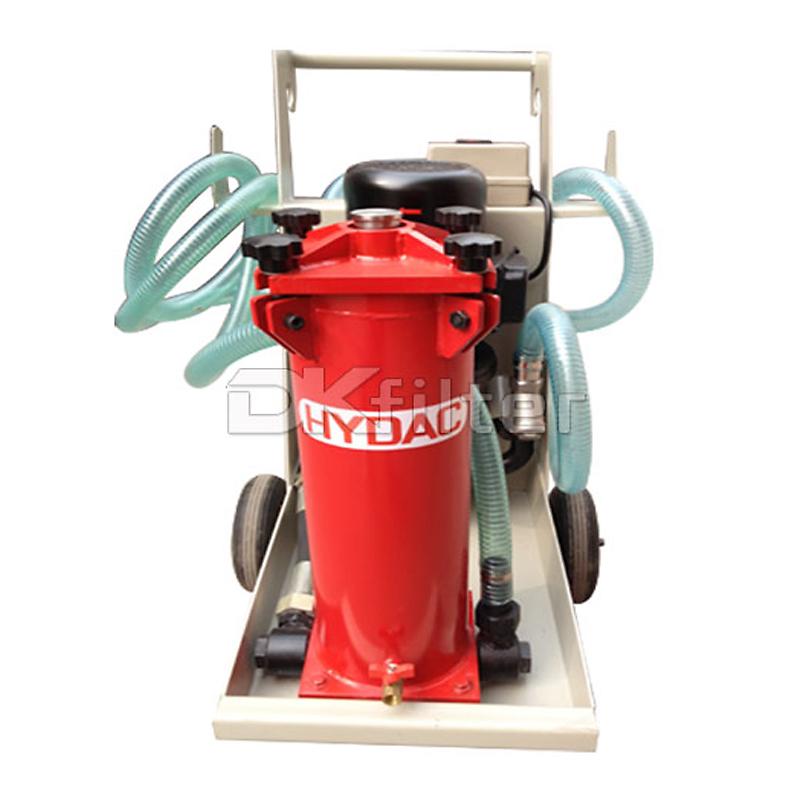

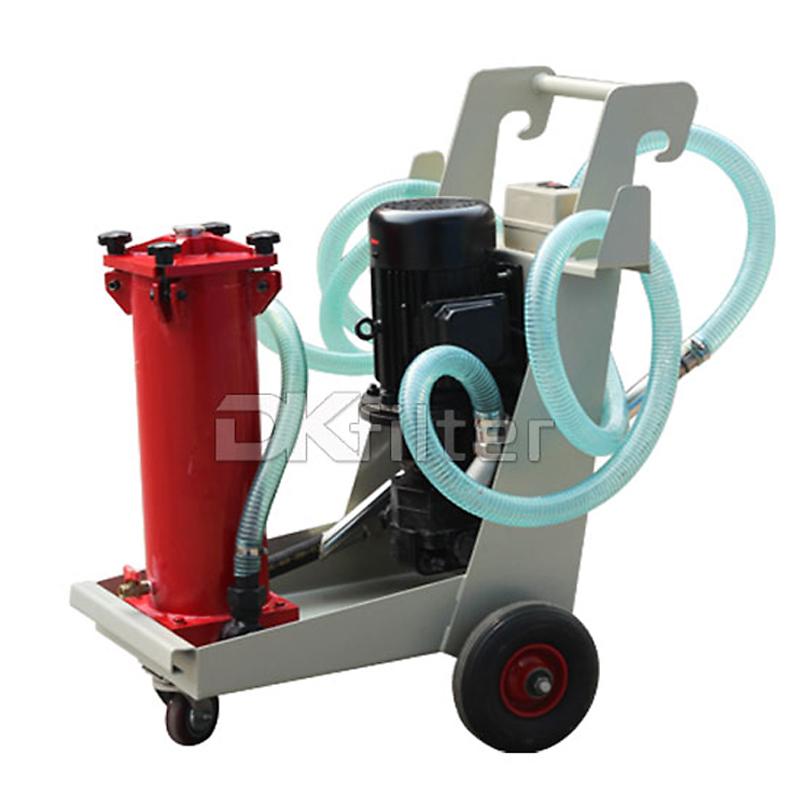

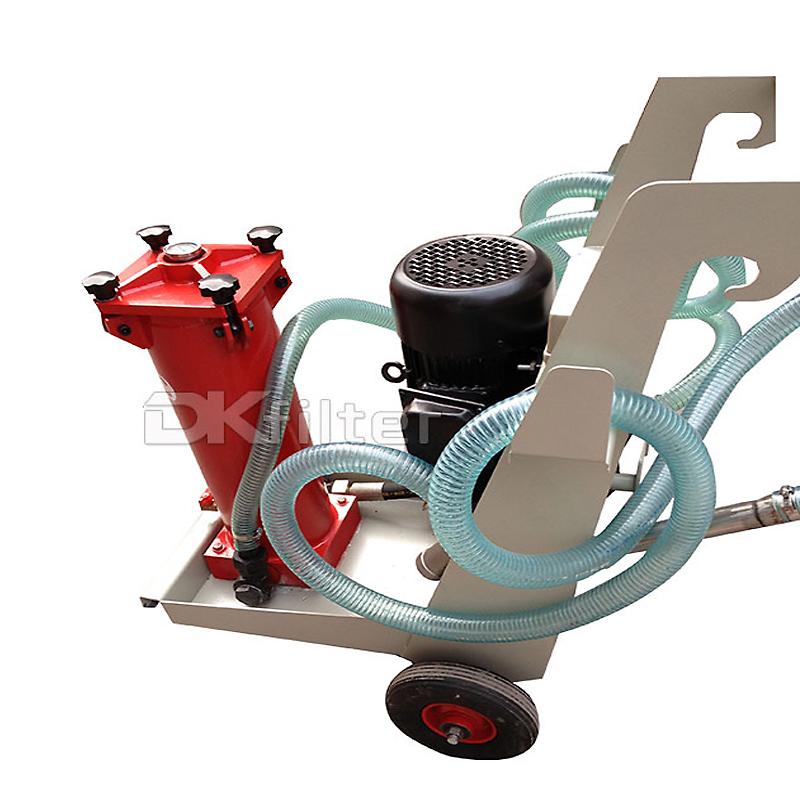

OFU10P2N2B05B Filter Pump Transfer Unit Replacement for filling systems is used to transferring hydraulic pressure and filtering lubricant oil. OFU10P2N2B05B is a mobile oil service unit. Processing oils include Hydraulic oil, mineral oil, emulsion, water glycol.
Advantages:
OFU10P2N2B05B is mobile and convenient to go different places,but it still has other advantages:
Convenient offline filtration
Easy operation
Greater system availability
Reduction in Life Cycle Cost
Applications:
OFU10P2N2B05B is widely used hydraulic and lubrication oil systems in a variety of industries as below:
• Chemical and petrochemical industry
• Pharmaceutical industry
• Food & beverage
• Plastic industry
• Process filtration
• Metallurgy industry
• Power plant
• Paper
Related Specification Filters
Hydac OFU Series Oil purifiers' Technical specifications:
| Pump type |
Gear pump |
| Max. flow rate |
100 l/min |
| Voltage |
230V 50Hz380-420V 50Hz440V-480V 60Hz |
| Micron |
3-40μm |
| Operating pressure |
10 bar max. |
| Viscosity range |
15 ... 1000 mm²/s (version-dependent) |
| Permitted operating fluid |
Mineral oil (others on request) |
| Permitted suction pressure at suction port |
-0.4 bar to +0.6 bar |
| Fluid temperature |
-10 ... 80 °C |
| Ambient temperature |
-20 ... 40 °C |
| Seals |
NBR (Option: FPM) |
| Protection class |
IP 54 |
| Suction hoes |
2.5 m |
| Power cable length |
10m |
| Pressure hose |
IP 54 |
| Protection class |
4m |
| Hose connections |
Suction hose NW 30 with lance
Pressure hose NW 25 with lance |
| Weight |
≈ 130 kg |
| Sizes |
950x630x800/1240mm |
| If you have no standard filter code numbers please send us your filters specifications or samples we can customize as your requests. |
We corporation are excellent coalescer cartridge manufacturers.
Our manufactured HYDAC series mobile oil filter trolley are guaranteed to meet or exceed OEM filter requirements
| OFU10P2N2B03B |
OFU10P2N2B05B |
OFU10P2N2B10B |
OFU10P2N2B20B |
| OFU10P2N2B40B |
OFU10P2N3B03B |
OFU10P2N3B05B |
OFU10P2N3B10B |
| OFU10P2N3B20B |
OFU10P2N3B40B |
OF7S10P1M1B03E |
OF7S10P1M1B05E |
| OF7S10P1M1B10E |
OF7S10P1M1B20E |
OF5L10P3M2B03E |
OF5L10P3M2B10E |
| OF5L10P3M2B40E |
OF5L10P6N2B03E |
OF5L10P6N2B05E |
OF5L10P6N2B10E |
| OF5L10P6N2B20E |
OF5L10P6N2B40E |
|
|
| If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests. |
