SDRLF Duplex Large Flow Rate Return Line Filter

Duplex Large Flow Rate Return Line Filter

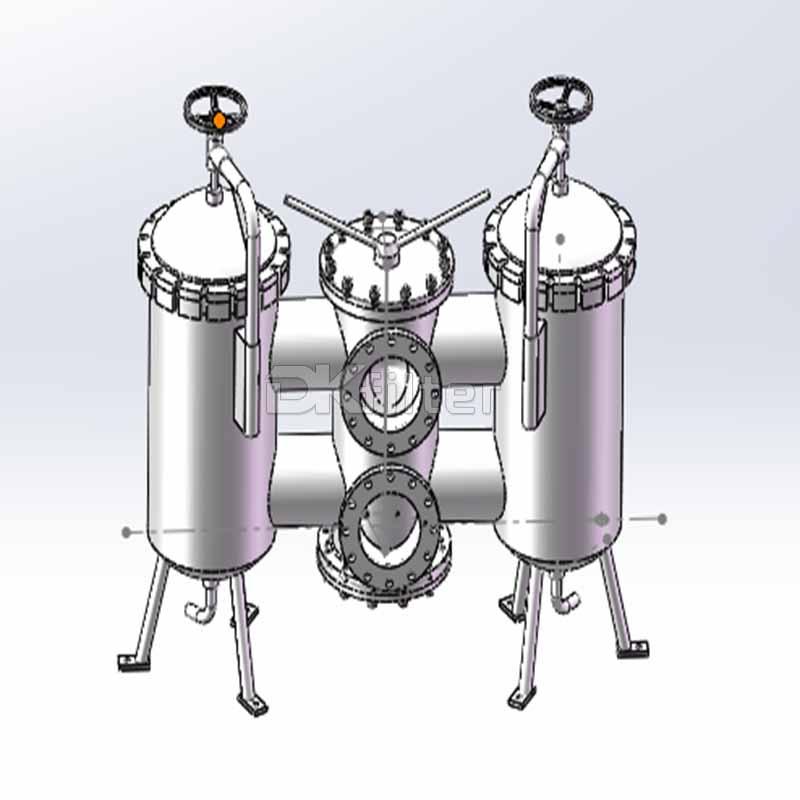

SDRLF-A1300×10P Leemin Duplex Large Flow Return Line Filter

SDRLF-A1300×10P hydraulic oil filter filter housing is composed of two single bowl filters and a 2-position 6-way directional valve.It is simple in construction and easy to use.There is a by-pass valve and a contamination indicator in itfor protecting the hydraulic system safety.

General specifications

Quality:

Brand:DKFILTER

Model:SDRLF-A1300×10P

Flow rate:1300L/min

Micron:10µm

Seal:Viton

Pressure:1.6MPa

Bypass valve work pressure:0.4MPa

Inside filter element:SFX-1300×10

Series:SDRLF-A2600×10P SDRLF-A3900×10P more

Inquire

Product Details Related Specification Filters Communication Requirements

Description:

DKFILTER makes kinds of hydraulic oil filter housing:suction filter,line filter and return line filter.

And the Leemin SDRLF-A1300×10P duplex large flow rate return line filter is composed of two single bowl filters and a 2-position 6-way directional valve.It is simple in construction and easy to use.There is a by-pass valve and a contamination indicator in it,for protecting the hydraulic system safety.

The feature of SDRLF-A1300×10P filter allows continues operation even during element is changed for which is clogged by contaminants.After opening the balance valve and then turn the directional valve,the other filter begins to work;the clogged element should be changed in time.

Application:

SDRLF-A1300×10P Duplex Large Flow Rate Return Line Filter is widely used in the hydraulic systems of heavy duty mining and metallurgical machines.

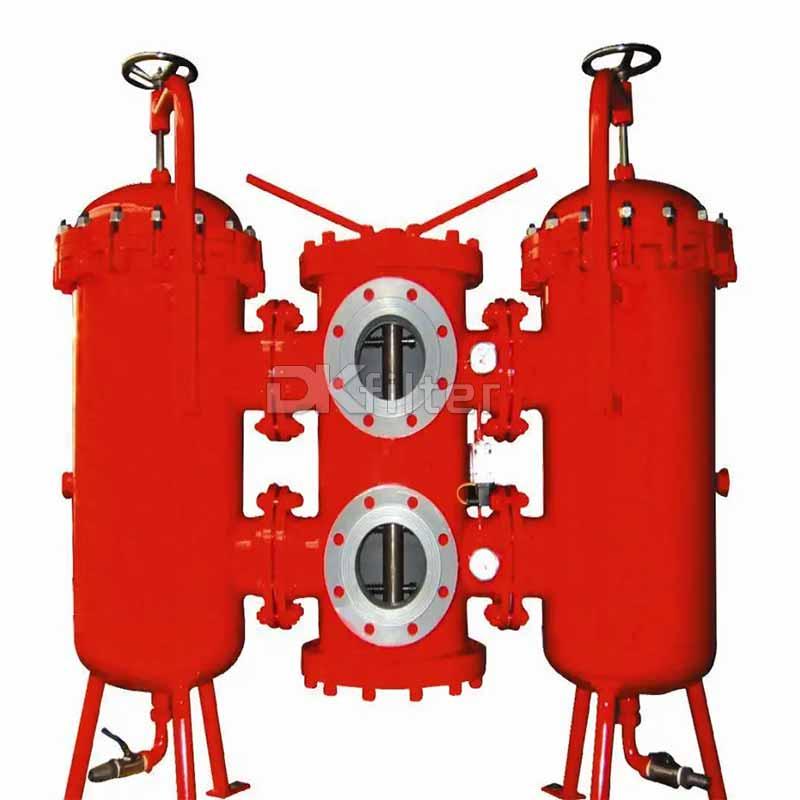

SDRLF-A1300×10P Leemin Duplex Large Flow Return Line Filter

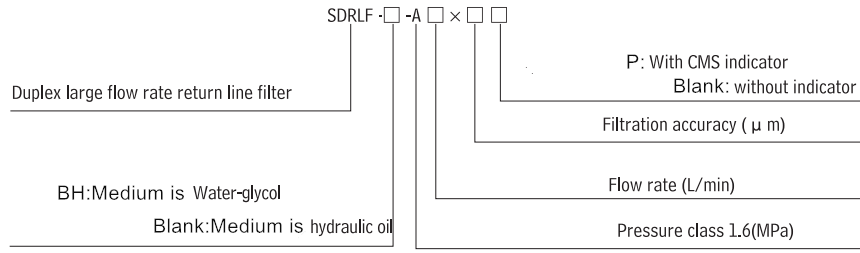

Model Code:

SDRLF-A1300×10P Leemin Duplex Large Flow Return Line Filter

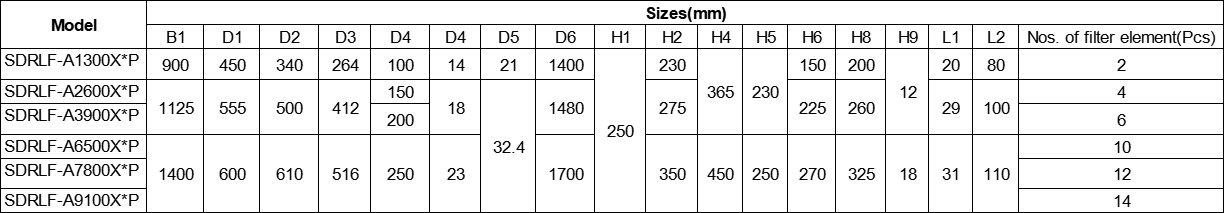

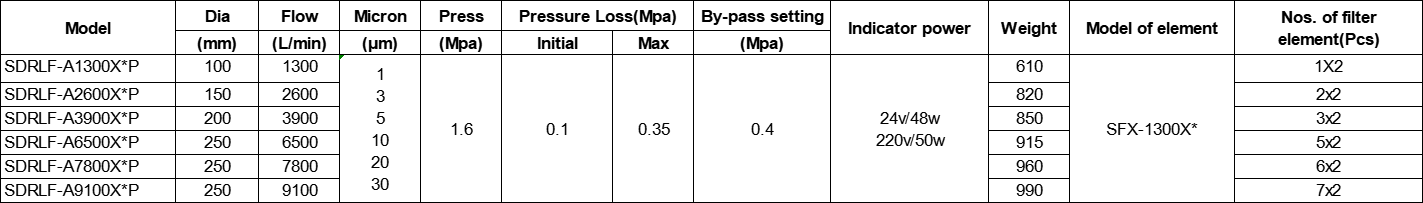

Technical Data: SDRLF-A1300×10P Leemin Duplex Large Flow Return Line Filter

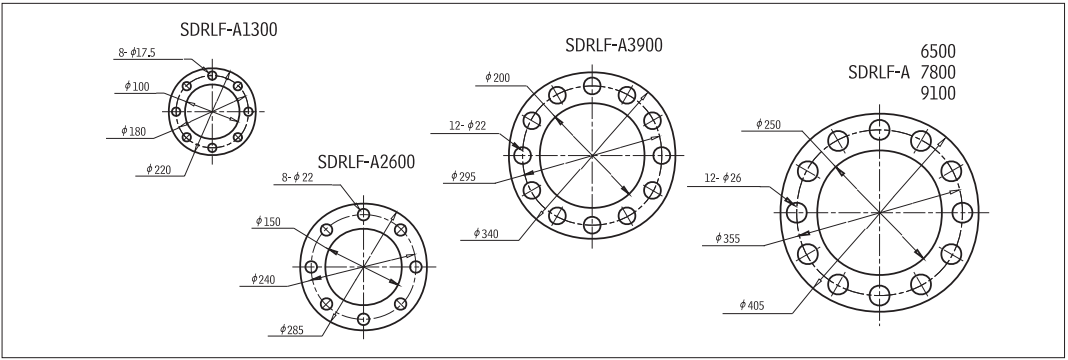

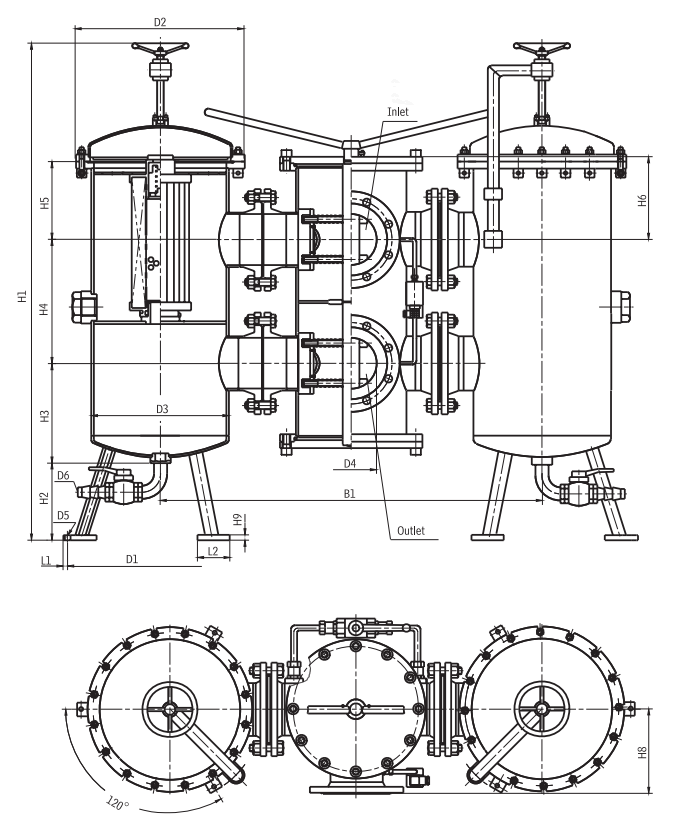

Mounting Size:

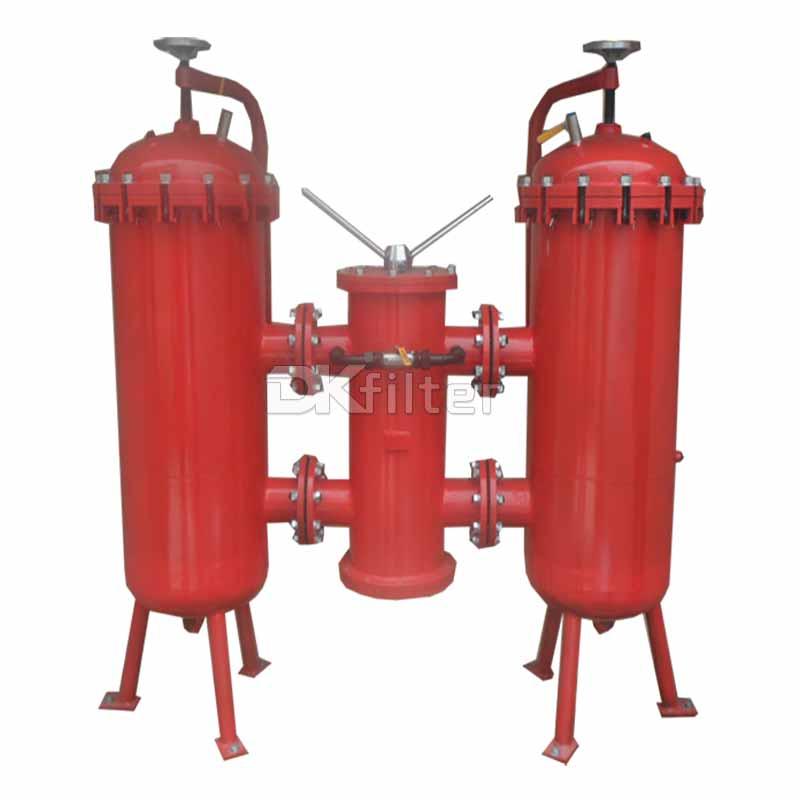

SDRLF-A1300×10P Leemin Duplex Large Flow Return Line Filter

Related Specification Filters

SDRLF-A1300×10P	SDRLF-BHA1300×30P	SDRLF-A1300×20P	SDRLF-BHA1300×20P	SDRLF-A1300×30P	SDRLF-BHA1300×30P
SDRLF-A2600×10P	SDRLF-BHA2600×30P	SDRLF-A2600×20P	SDRLF-BHA2600×20P	SDRLF-A2600×30P	SDRLF-BHA2600×30P
SDRLF-A3900×10P	SDRLF-BHA3900×30P	SDRLF-A3900×20P	SDRLF-BHA3900×20P	SDRLF-A3900×30P	SDRLF-BHA3900×30P
SDRLF-A6500×10P	SDRLF-BHA6500×30P	SDRLF-A6500×20P	SDRLF-BHA6500×20P	SDRLF-A6500×30P	SDRLF-BHA6500×30P
SDRLF-A7800×10P	SDRLF-BHA7800×30P	SDRLF-A7800×20P	SDRLF-BHA7800×20P	SDRLF-A7800×30P	SDRLF-BHA7800×30P
SDRLF-A9100×10P	SDRLF-BHA9300×30P	SDRLF-A9200×20P	SDRLF-BHA9200×20P	SDRLF-A9300×30P	SDRLF-BHA9300×30P
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
