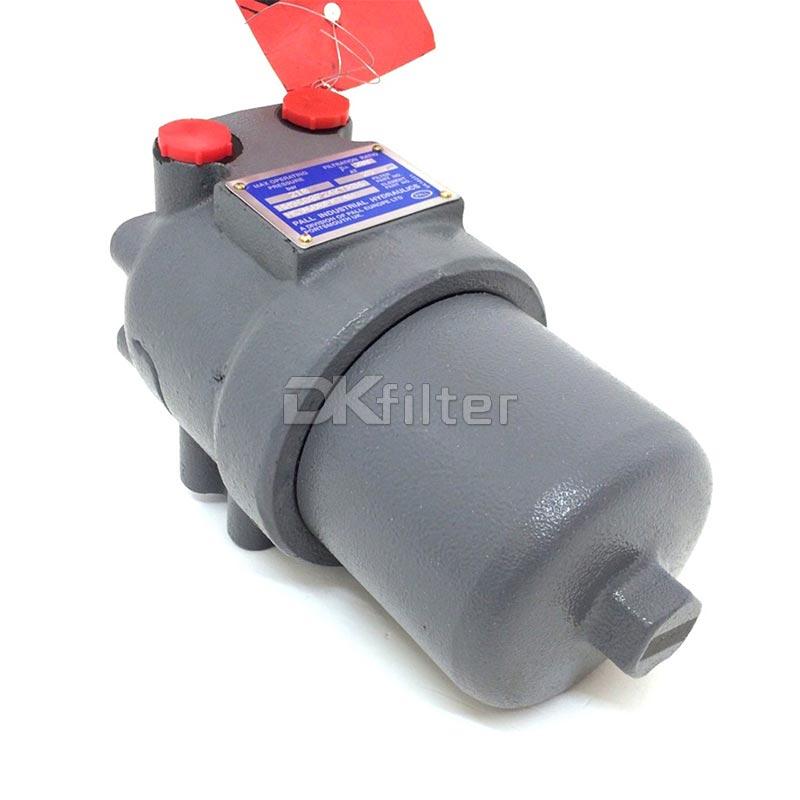

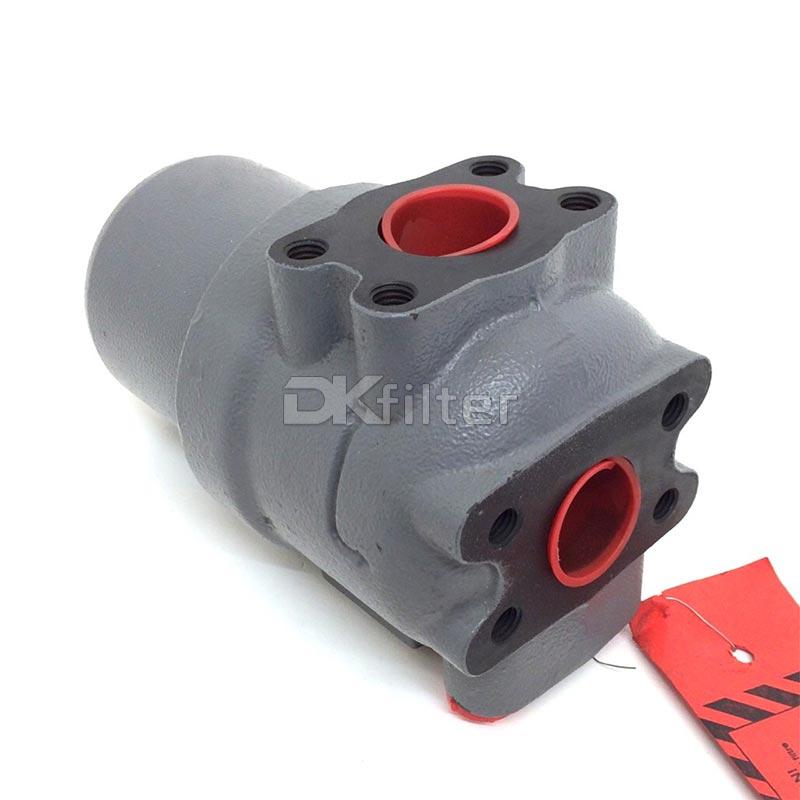

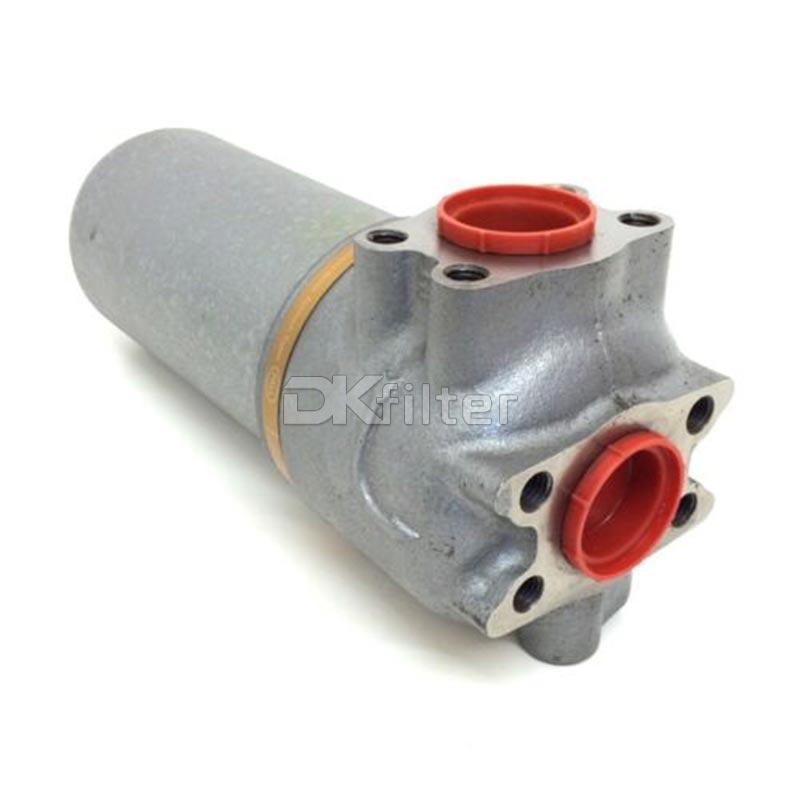

HH 9680 C24UB Pall Filter Assemblies Replacement

DKFILTER is specialized in the hydraulic oil filter housingand we can make the Pall 9680/1 series filter assemblies replacement.Its flows to 600 L/min with 420bard pressure and port size 1 in. 1 1 ⁄4 in. & 1 1 ⁄2 in.

General specifications

Quality:

Brand:DKFILTER

Model:HH 9680 C24UB

Seal:Fluorocarbon

Flow rate:600 L/min

Micron:10µm

Press:420 Bar

Inside filter element:HC9680 HC9681 Series

Series:HH9680C24KPUBR324DCHZ9681C16 RW1 more

Inquire

Product Details Related Specification Filters Communication Requirements

Description:

DKFILTER is specialized in the hydraulic oil filter housing,and we can make the Pall 9680/1 series filter assemblies replacement.Its flows to 600 L/min with 420bard pressure and port size 1 in., 1 1 ⁄4 in. & 1 1 ⁄2 in.

Performance:

Housing pressure drop:

Using fluid with s.g. 0.9 housing pressure drop is directly proportional with to specific gravity.

HH 9680 C24UB Pall Filter Assemblies Replacement

Features:

The replacement of Pall 9680/1 series filter assemblies features are as below:

Flows to 600 L/min (160 US gpm)

Pressures to 420 bard (6100 psid)

Port size 1 in., 1 1 ⁄4 in. & 1 1 ⁄2 in.

Ultipor® III filter medium pack

Out-to-in filter element flow path

Specifications:

Technical data
Maximum Acceptable Working Pressure	450 Bar (6500 psi)
Fatigue Pressure Rating	Nitrile seals -45°F to 225°F (-43°C to 107°C),Fluorocarbon seals -20°F to 250°F (-29°C to 120°C),140°F (60°C) maximum in HWCF or water-glycol fluids
Typical Burst Pressure	<1260 Bar (187,270 psi)
Temperature Range	Nitrile seals -45°F to 225°F (-43°C to 107°C)Fluorocarbon seals -20°F to 250°F (-29°C to 120°C)140°F (60°C) maximum in HWCF or water-glycol fluids
Seales material	Nitrile
Element Collapse Rating	20 bar diff. for housings with bypass
Connection	1 1⁄2 in.BSP thread

Related Specification Filters

HH9680C24KPUBR324DC	HH9680S20KNUBR24DC	HH9680S20KPUBR24DC	HH9680S20KSUBR24DC	HH9680S20KSRBR24DC	HH9681C24DPSWT3
HH9681K2ODPSWM	HH9681K20DSUWR324DC	HH9681K20DTUWR24DC	HZ9681C16 RW1	HZ9681C20 RW1	HZ9681G16 RW1
HZ9681G20 RW1	HZ9681C20 SW1	HZ9681G20 SW1	HZ9681C20 TW1	HZ9681C20 UW1	HZ9681C24 UW1
HZ9681G20 UW1	HZ9681K20 SW1	HZ9681K20 TW1	HZ9681K20 UW1	HZ9681S20 SW1
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
