0140 D 005 BH4HC Hydac High Pressure Filter Element Replaceme

0140 D 005 BH4HC oil filter is widely used for filtration of hydroethylene glycol,diesel,machining fluids,lubricating oil,coolants,gasoline,process fluids,turbine and compressor lube oils,synthetic lubricants,and many more chemicals,steel plant,power plant and other related industries. DKFILTER makes 0140 D 005 BH4HC replacement with high pressure resistant support material and 5μm fiberglass filtration materialit’s a hydraulic pipeline oil filter elementand plays an extremely important role in cleaning of kinds of oil system and ensuring smooth operation.


General specifications

Quality:

Brand: DKFILTER

Model: 0140 D 005 BH4HC

Filter Type: Hydraulic Oil Filter Element

Length: 193.0 mm

Inner Diameter: 22.1 mm

Outside Diameter: 47.0 mm

End Caps:Corrosion Resistant Steel

Center Tube:Corrosion Resistant Steel

Series: 0165 R 010 BN4HC,0660 R 010 BH4HC,0850 R 010 BH4HC,2600 R 010 BH4HC more

Introduction:

0140 D 005 BH4HC oil fitler can be used for filtering hydraulic fluid,widely used for filtration of hydroethylene glycol,diesel,machining fluids,lubricating oil,coolants,gasoline,process fluids,turbine and compressor lube oils,synthetic lubricants,and many more chemicals,steel plant,power plant and other related industries.


Performance Parameters:

ItemValue
Length193.0 mm
Inner Diameter22.1 mm
Outside Diameter47.0 mm
Filtration accuracy5 μm
Operating pressure....3000 psid
Filter MaterialWire Mesh、Fiberglass
SealBuna (Nitrile)
End CapCorrosion Resistant Steel.....
Center TubeCorrosion Resistant Steel


Filter Material:

Our Manufactured 0140 D 005 BH4HC hydac oil filter is engineered to ensure your hydraulic system operates smoothly,offering a versatile solution for various applications.It’s a high pressure pipeline filter element,the end caps and center tube are used corrosion resistant steel and all the filter can bear 3000 psid pressure with high performance,increasing efficiency,keeping fluids clean,ensuring smoother operation.

• All glassfiber media aggregator combines deep particle filtration with deep coalescence structure.

• The all-glass fiber design has a continuous thinner dielectric layer to achieve deep filtration of particles.

• The composite glass fiber and fold medium coalescers mainly remove particles from high surface area fold cores.

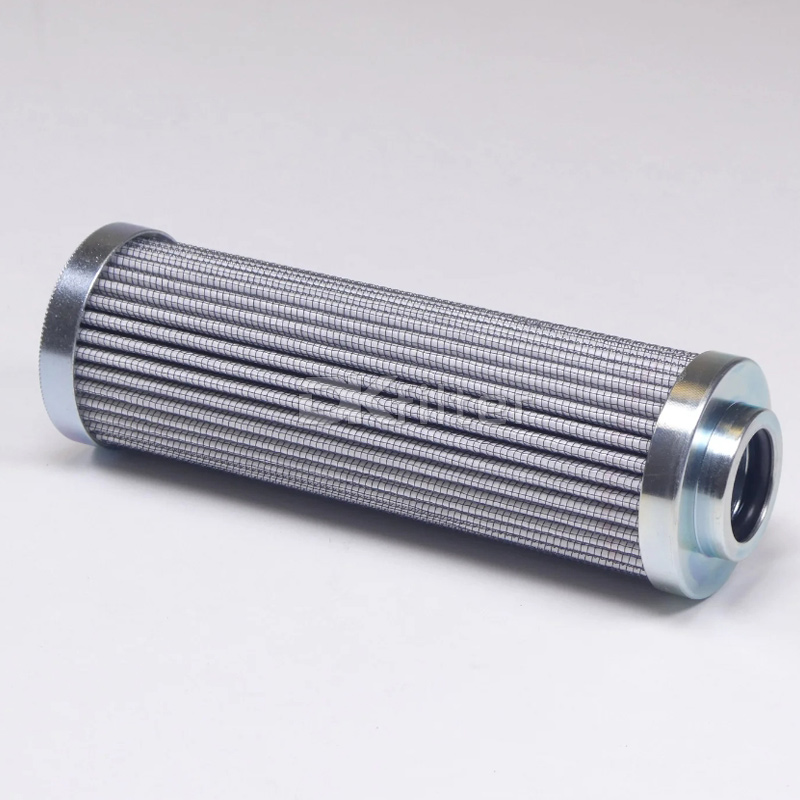

0140 D 005 BH4HC Hydac High Pressure Filter Element Replaceme



Filter Feature:

We make 0160 D 020 W/HC oil hydraulic filter is Beta grade. Excellent filtration performance. The Beta X = 1000 number means that for every 1000 particles of size x in the fluid, on average only one particle will pass through the filter.

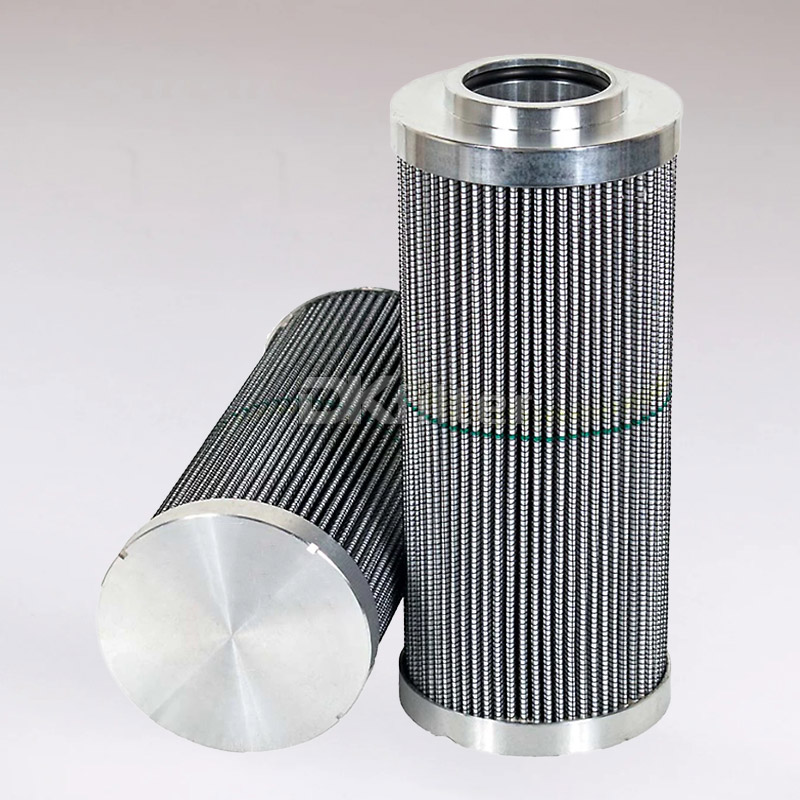

0140 D 005 BH4HC Hydac High Pressure Filter Element Replaceme



Filter Wash:

The 0140 D 005 BH4HC hydraulic oil filter is stainless steel mesh element can be cleaned again after use,it can save you much cost.However,only a certain cleaning level (percentage) can be achieved.For best results,components should be cleaned using professional equipment.But cleaning results are unpredictable.It depends a lot on various conditions.

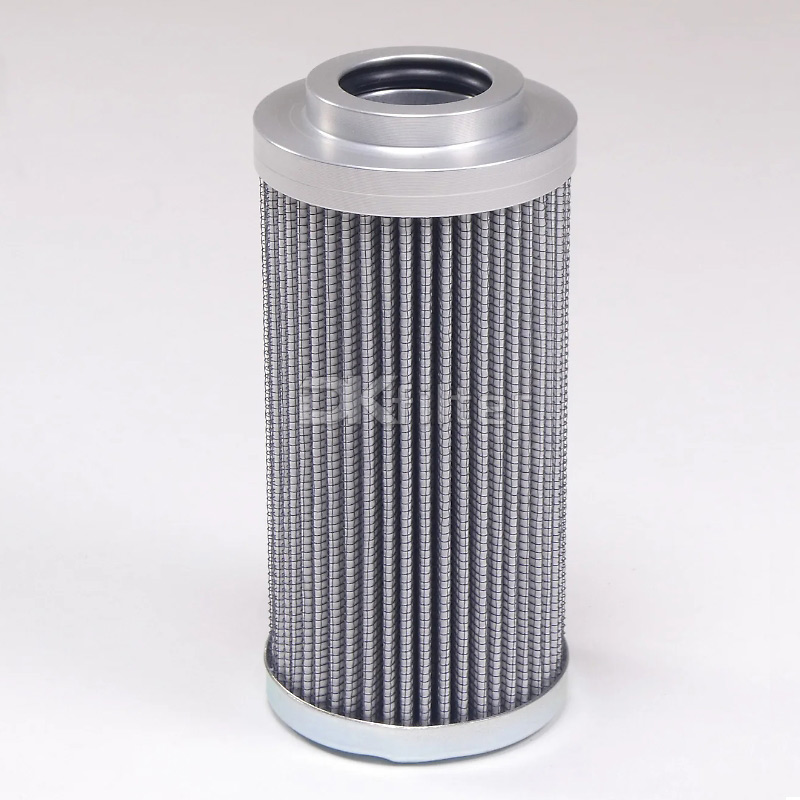

0140 D 005 BH4HC Hydac High Pressure Filter Element Replaceme

(1) Dip the filter element in light oil and rotate thoroughly.

(2) Clean off dirt by scrubbing the element with a brush parallel to the pleats.

(3) Clean off dirt with an air spray gun.

(4) Rinse well.

(5) Dry using an air spray gun.

Notes:

It must be noted that during each cleaning process,approx. 80-90% of the initial filter area can be recovered each time,that is,after 4-5 cleaning cycles,the result (cleaning cost and service life) may not be economical.We will be happy to send you the operating manual with further information on cleaning.


Application:

0140 D 005 BH4HC oil filtration element can be used for many types of industrial fluids:

filtering hydraulic fluid

diesel

machining fluids

lubricating oil

coolants

gasoline

process fluids

turbine and compressor lube oils

synthetic lubricants etc.


Test Standards:

Before delivery, Our manufactured 0140 D 005 BH4HC hydraulic oil filter will be tested and follow the standards:

ISO 2941 Collapse & Burst Resistant

ISO 2942 Fabrication & Integrity Test

ISO 2943 Material Compatibility with Fluids

ISO 3724 Flow Fatigue Characteristics

ISO 3968 Pressure Drop vs. Flow Rate

ISO 16889 Multi-pass Performance Testing


Related Specification Filters

Hot sales filters code number:

0030 D 010 BN4HC 0060 D 010 BN4HC 0110 D 010 BN4HC 0140 D 010 BN4HC 0160 D 010 BN4HC 0240 D 010 BN4HC
0330 D 010 BN4HC 0500 D 010 BN4HC 0660 D 010 BN4HC 0990 D 010 BN4HC 1320 D 010 BN4HC 0040 DN 010 BN4HC
0160 DN 010 BN4HC 0250 DN 010 BN4HC 0400 DN 010 BN4HC 0630 DN 010 BN4HC 0660 R 010 BN4HC 0075 R 010 BN4HC
0110 R 010 BN4HC 0160 R 010 BN4HC 0165 R 010 BN4HC 0240 R 010 BN4HC 0330 R 010 BN4HC 0500 R 010 BN4HC
0660 R 010 BN4HC 0850 R 010 BN4HC 0950 R 010 BN4HC 1300 R 010 BN4HC 1700 R 010 BN4HC 2600 R 010 BN4HC
1000 RN 010 BN4HC 0030 D 010 BH4HC 0060 D 010 BH4HC 0110 D 010 BH4HC 0140 D 010 BH4HC 0160 D 010 BH4HC
0240 D 010 BH4HC 0280 D 010 BH4HC 0330 D 010 BH4HC 0500 D 010 BH4HC 0660 D 010 BH4HC 0990 D 010 BH4HC
1320 D 010 BH4HC 0040 DN 010 BH4HC 0160 DN 010 BH4HC 0250 DN 010 BH4HC 0400 DN 010 BH4HC 0630 DN 010 BH4HC
0660 R 010 BH4HC 0075 R 010 BH4HC 0110 R 010 BH4HC 0160 R 010 BH4HC 0165 R 010 BH4HC 0240 R 010 BH4HC
0330 R 010 BH4HC 0500 R 010 BH4HC 0660 R 010 BH4HC 0850 R 010 BH4HC 0950 R 010 BH4HC 1300 R 010 BH4HC
1700 R 010 BH4HC 2600 R 010 BH4HC 1000 RN 010 BH4HC 0030 D 010 W/HC 0060 D 010 W/HC 0110 D 010 W/HC
0140 D 010 W/HC 0160 D 010 W/HC 0240 D 010 W/HC 0280 D 010 W/HC 0330 D 010 W/HC 0500 D 010 W/HC
0660 D 010 W/HC 0990 D 010 W/HC 1320 D 010 W/HC 0040 DN 010 W/HC 0160 DN 010 W/HC 0250 DN 010 W/HC
0400 DN 010 W/HC 0630 DN 010 W/HC 0660 R 010 W/HC 0075 R 010 W/HC 0110 R 010 W/HC 0160 R 010 W/HC
0165 R 010 W/HC 0240 R 010 W/HC 0330 R 010 W/HC 0500 R 010 W/HC 0660 R 010 W/HC 0850 R 010 W/HC
0950 R 010 W/HC 1300 R 010 W/HC 1700 R 010 W/HC 2600 R 010 W/HC 1000 RN 010 W/HC
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
