Introduction:

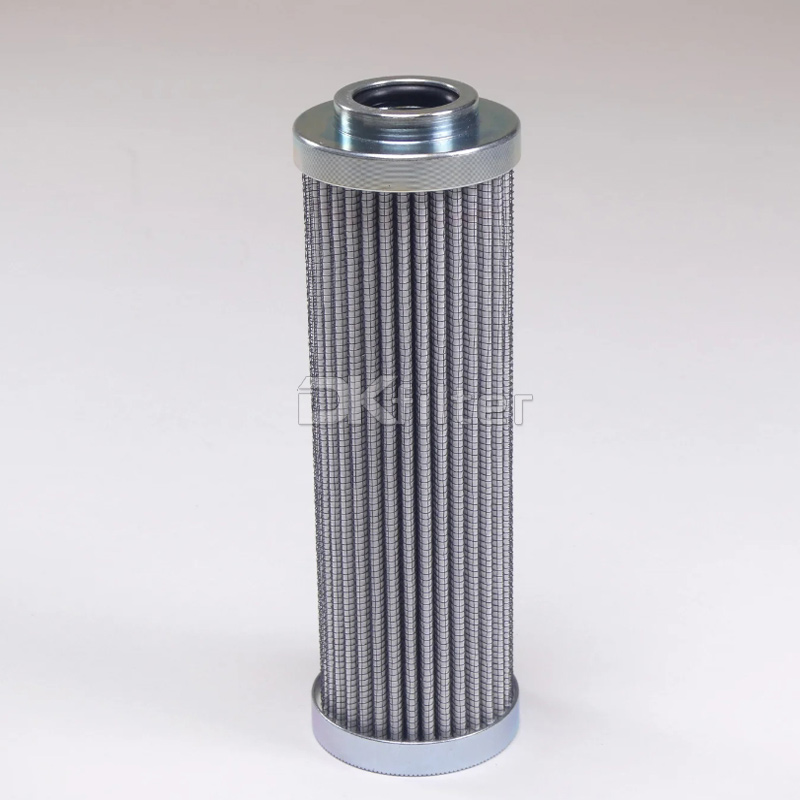

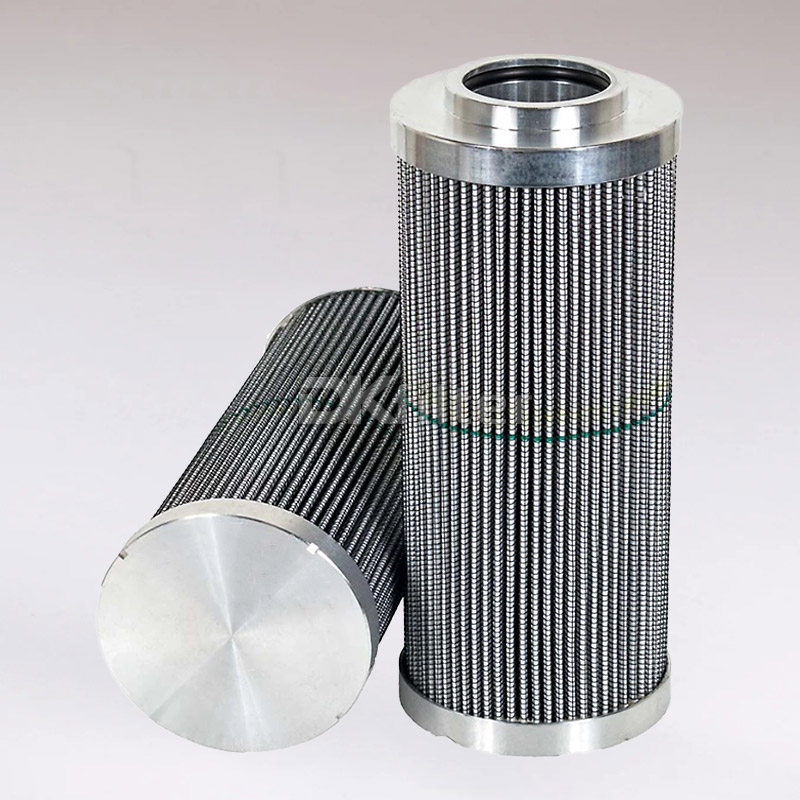

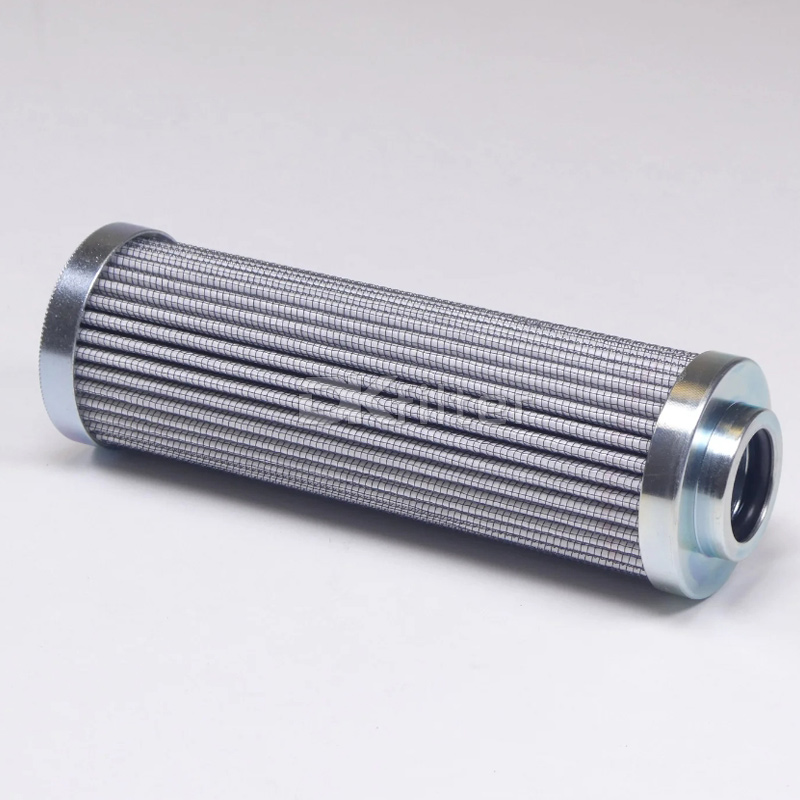

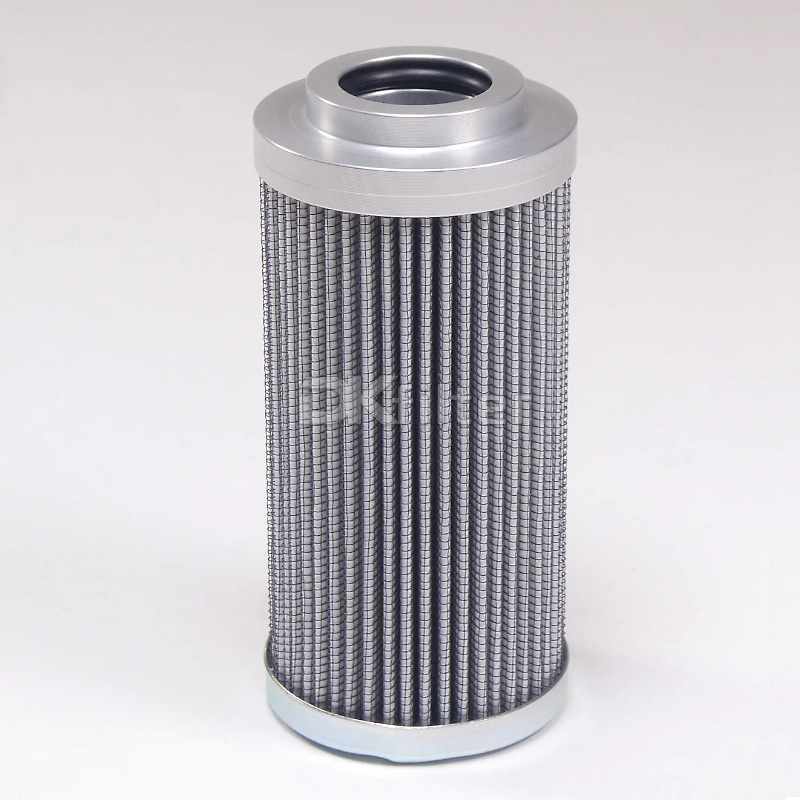

01E.1350.3VG.HR.E.V.VA hydraulic oil filter is a high pressure pipeline filter element with high performance,increasing efficiency,keeping fluids clean,and ensures smoother operation.
Hydraulic oil filter element plays an extremely important role in cleaning oil of all kinds of machinery and ensuring its smooth operation.Therefore, high quality control and excellent filtration performance are sought in components that are critical to dust control. 01E.1350.3VG.HR.E.V.VA pipeline filter is engineered to ensure your hydraulic system operates smoothly,offering a versatile solution for various applications.
Performance Parameters：
| Item | Value |
|---|
| Length | 9.18 inches |
| Outside Diameter | 3.11 inches |
| Filtration accuracy | 5 μm |
| Operating pressure.... | 3000 psid |
| Filter Material | Wire Mesh |
| Seal | Viton (Fluorocarbon) |
| End Cap | Corrosion Resistant Steel |
| Center Tube | Corrosion Resistant Steel |
Filter Material:
We make 01E.1350.3VG.HR.E.V.VA pipeline hydac oil separator filter cartridge replacement uses a single unit structure to reduce the number of gaskets and improve overall reliability. 01E.1350.3VG.HR.E.V.VA pipeline hydac oil separator filter cartridge have one or more layers of pleated media inside molded fiberglass laminated cylinders to provide a larger particle filtration surface area. Use pleated ripples and separate materials to keep the pleats open for full use.
• The composite glass fiber and fold medium coalescers mainly remove particles from high surface area fold cores.
• All glassfiber media aggregator combines deep particle filtration with deep coalescence structure.
• The all-glass fiber design has a continuous thinner dielectric layer to achieve deep filtration of particles.
Filter Feature：
Our Manufactured 01E.1350.3VG.HR.E.V.VA oil hydraulic filter is Beta grade. Excellent filtration performance. The Beta X = 1000 number means that for every 1000 particles of size x in the fluid, on average only one particle will pass through the filter.
Filter Cleaning:
01E.1350.3VG.HR.E.V.VA oil filter cartridge stainless steel mesh element can be cleaned again after use.However,only a certain cleaning level (percentage) can be achieved.For best results,components should be cleaned using professional equipment.But cleaning results are unpredictable.It depends a lot on various conditions
(1) Dip the filter element in light oil and rotate thoroughly.
(2) Clean off dirt by scrubbing the element with a brush parallel to the pleats.
(3) Clean off dirt with an air spray gun.
(4) Rinse well.
(5) Dry using an air spray gun.
Notes:
It must be noted that during each cleaning process,approx. 80-90% of the initial filter area can be recovered each time,that is,after 4-5 cleaning cycles,the result (cleaning cost and service life) may not be economical.We will be happy to send you the operating manual with further information on cleaning.
Application:
01E.1350.3VG.HR.E.V.VA oil filtration element can be used for many types of industrial fluids:
filtering hydraulic fluid
diesel
machining fluids
lubricating oil
coolants
gasoline
process fluids
turbine and compressor lube oils
synthetic lubricants etc.
Test Standards:
Before delivery, Our manufactured 01E.1350.3VG.HR.E.V.VA hydraulic oil cartridge will be tested and follow the standards:
ISO 2941 Collapse & Burst Resistant
ISO 2942 Fabrication & Integrity Test
ISO 2943 Material Compatibility with Fluids
ISO 3724 Flow Fatigue Characteristics
ISO 3968 Pressure Drop vs. Flow Rate
ISO 16889 Multi-pass Performance Testing
INTERNORMEN 01E.1350.3VG.HR.E.V.VA high pressure filter
