HPQ220275L40-25MB Hydraulic Oil Filter Hydac High Pressure Cartridge Element

HPQ220275L40-25MB hydraulic oil filter is used for 5μm high-precision industrial-grade filtration, suitable for hydraulic systems of construction machinery and power equipment, made of ISO certified materials, with a pressure resistance of 3.0MPa, and the factory provides technical parameters and OEM customization.


General specifications

Quality:

Brand: DKFILTER

Model: HPQ220275L40-25MB

Filter Type: Hydraulic Oil Filter Cartridge

Length: 38.70 inches

Outside Diameter: 5.96 inches

Innerside Diameter: 4.18 inches

Filter Material: Fiberglass、Wire Mesh

End Caps: Corrosion Resistant Steel

Center Tube: Corrosion Resistant Steel

Series: HPQ20082S-17EV-NSD, HPQ98320L39-12EV-NSD, HP102L36-12EB-NSD, HP61L11-2EV-NSD more

Introduction:

HPQ220275L40-25MB hydraulic oil filter is designed to provide efficient protection for the hydraulic system of industrial equipment, and HPQ220275L40-25MB is suitable for high-intensity operation scenarios such as engineering machinery, electric power, petrochemicals, etc. Through 5μm high-precision filtration, HPQ220275L40-25MB effectively intercepts metal particles and dust pollutants in the oil, significantly reduces the wear rate of equipment, extends the life of core components such as hydraulic pumps and valves, and ensures stable operation of the system with low failure rate.


Performance Parameters:

ItemValue
Length38.70 inches
Outside Diameter5.96 inches
Inside Diameter4.18 inches
Filtration accuracy5 μm (β≥200)
Bypass Pressure3.0 bar
Operating pressure3000 psid
Temperature Range-30 ~ +100°C
Filter MaterialFiberglass、Wire Mesh
SealViton (Fluorocarbon)
Center TubeCorrosion Resistant Steel
End CapCorrosion Resistant Steel


Technical Advantages:

• Ultra-high precision filtration: 5μm filtration accuracy (β value ≥ 200), 99.9% pollutant retention rate (in line with ISO 16889 standard).

• Pressure and impact resistance: spiral steel skeleton + multi-layer glass fiber filter material, withstand 3.0MPa high pressure impact, no deformation and leakage.

• Long life design: the pollution holding capacity is increased by 40%, supporting 3000+ hours of continuous operation and reducing the replacement frequency.

• Wide compatibility: compatible with Parker, HYDAC, Bosch and other mainstream brand filter housings, supporting OEM customization.


Filter Material:

HPQ220275L40-25MB oil filter is a high pressure filter element,the end caps and center tube are used corrosion resistant steel and all the filter can bear 3000 psid pressure with high performance,increasing efficiency,keeping fluids clean,and ensures smoother operation. HPQ220275L40-25MB oil filter is engineered to ensure your hydraulic system operates smoothly,offering a versatile solution for various applications.

• All glassfiber media aggregator combines deep particle filtration with deep coalescence structure.

• The all-glass fiber design has a continuous thinner dielectric layer to achieve deep filtration of particles.

• The composite glass fiber and fold medium coalescers mainly remove particles from high surface area fold cores.

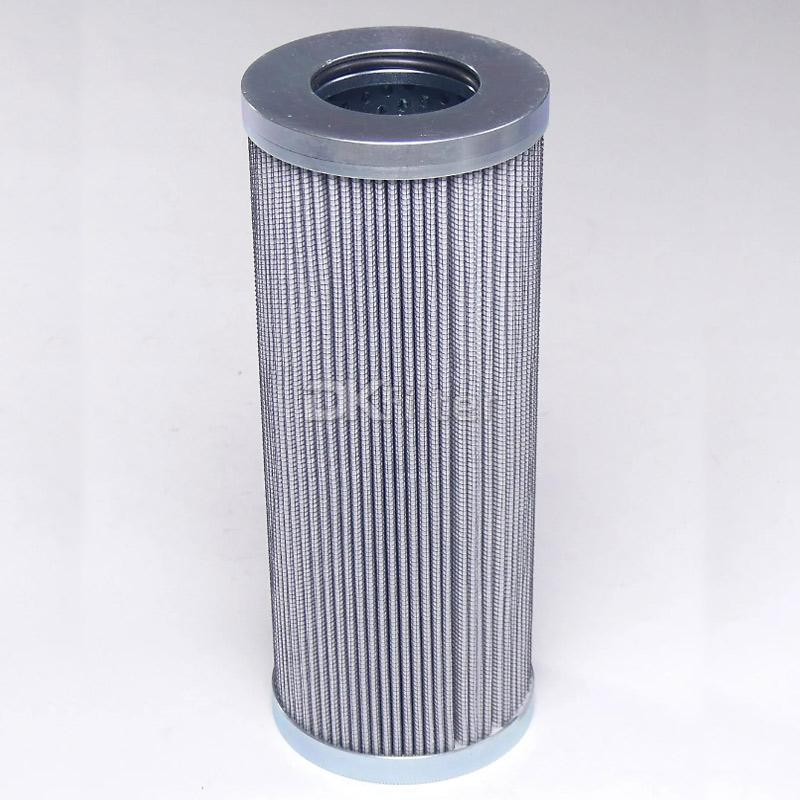

HPQ220275L40-25MB Hydraulic Oil Filter Hydac High Pressure Cartridge Element



Filter Features:

We make HPQ220275L40-25MB oil hydraulic filter is Beta grade. Excellent filtration performance. The Beta X = 1000 number means that for every 1000 particles of size x in the fluid, on average only one particle will pass through the filter.

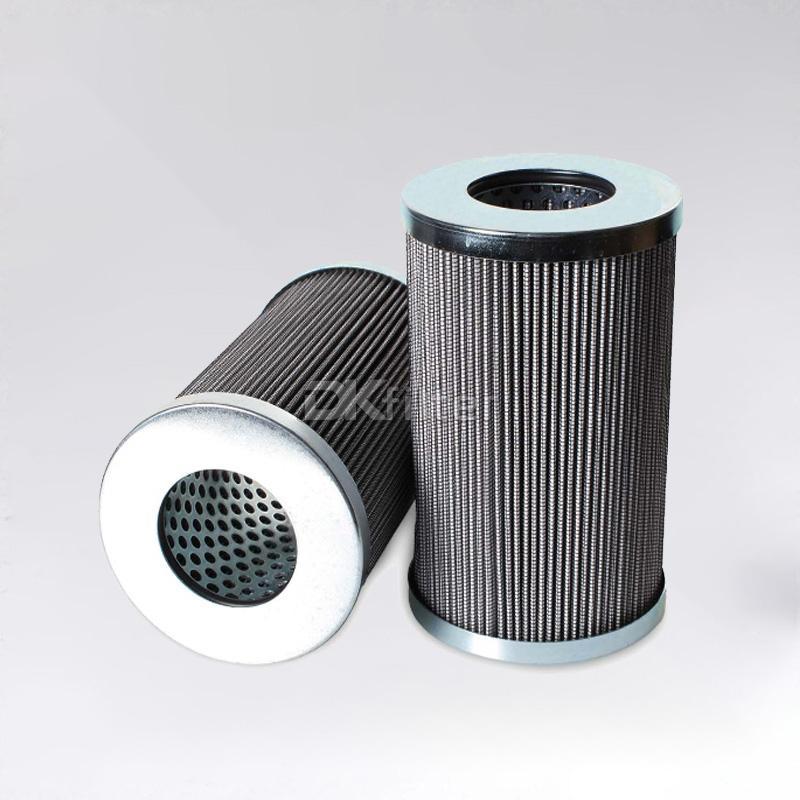

HPQ220275L40-25MB Hydraulic Oil Filter Hydac High Pressure Cartridge Element



Filter Wash:

HPQ220275L40-25MB hydraulic oil filter is stainless steel mesh element can be cleaned again after use,it can save you much cost.However,only a certain cleaning level (percentage) can be achieved.For best results,components should be cleaned using professional equipment.But cleaning results are unpredictable.It depends a lot on various conditions.

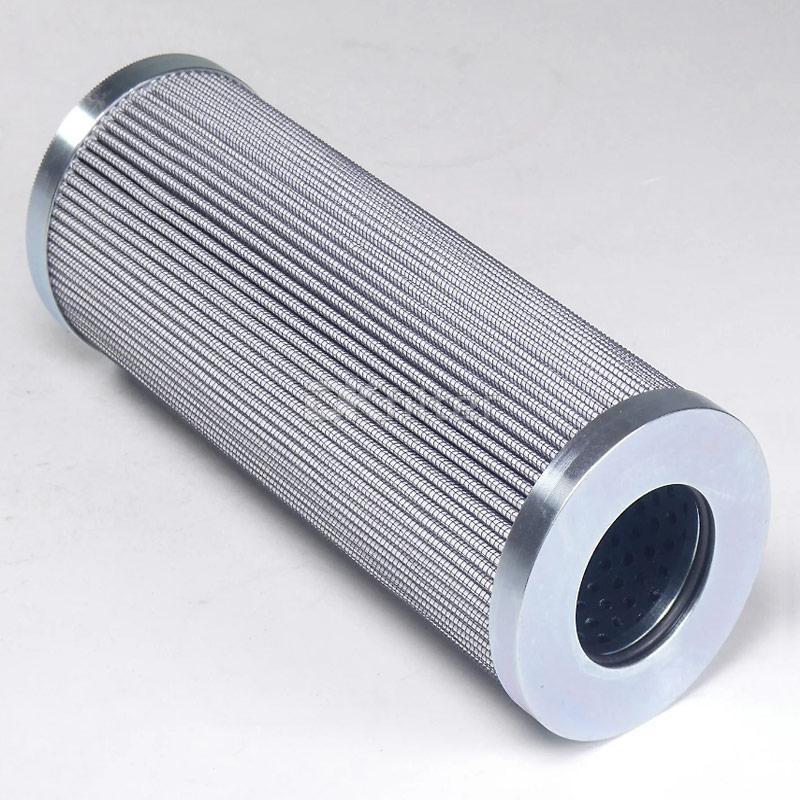

HPQ220275L40-25MB Hydraulic Oil Filter Hydac High Pressure Cartridge Element

(1) Dip the filter element in light oil and rotate thoroughly.

(2) Clean off dirt by scrubbing the element with a brush parallel to the pleats.

(3) Clean off dirt with an air spray gun.

(4) Rinse well.

(5) Dry using an air spray gun.

Notes:

It must be noted that during each cleaning process,approx. 80-90% of the initial filter area can be recovered each time,that is,after 4-5 cleaning cycles,the result (cleaning cost and service life) may not be economical.We will be happy to send you the operating manual with further information on cleaning.


Test Standards:

Before delivery, Our manufactured HPQ220275L40-25MB hydraulic oil filter will be tested and follow the standards:

ISO 2941 Collapse & Burst Resistant

ISO 2942 Fabrication & Integrity Test

ISO 2943 Material Compatibility with Fluids

ISO 3724 Flow Fatigue Characteristics

ISO 3968 Pressure Drop vs. Flow Rate

ISO 16889 Multi-pass Performance Testing


Related Specification Filters

HP06DNL4-12EV-NSD HP06DNL4-25EB-NSD HP06RNL7-12EB-NSD HP102L36-12EB-NSD
HP51L16-2EV-NSD HP51L8-15EV-NSD HP964L13-6EV-NSD HP41L13-3EV-NSD
HP21L4-15EV-NSD HP102L18-3EV-NSD HPK3L18-3EV-NSD HP21L8-15EV-NSD
HP102L36-25EB-NSD HP102L18-12EV-NSD HPQ20082S-12EV-NSD HPQ98320L39-12EV-NSD
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
