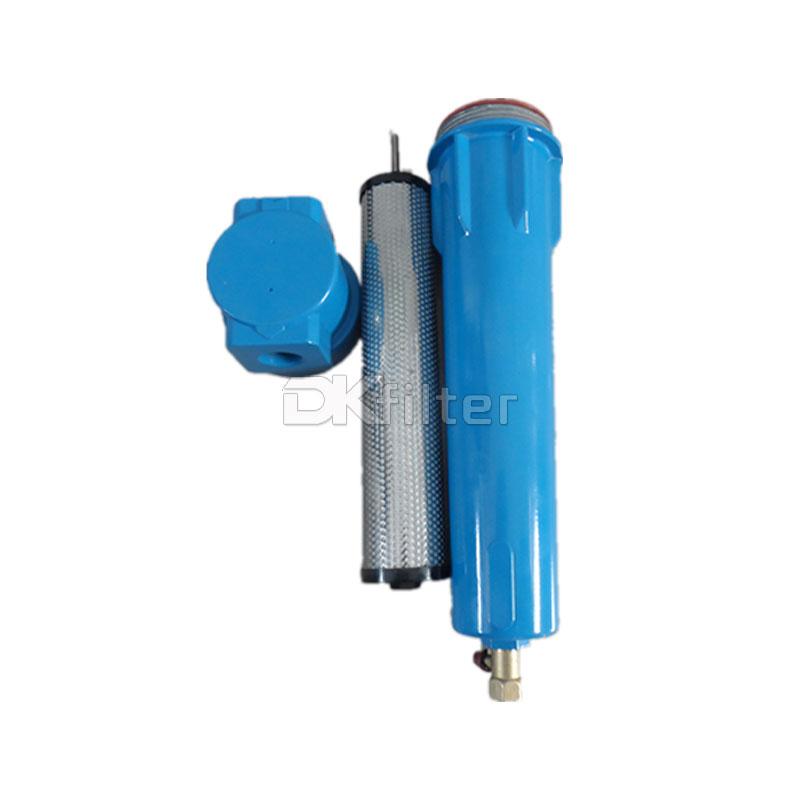

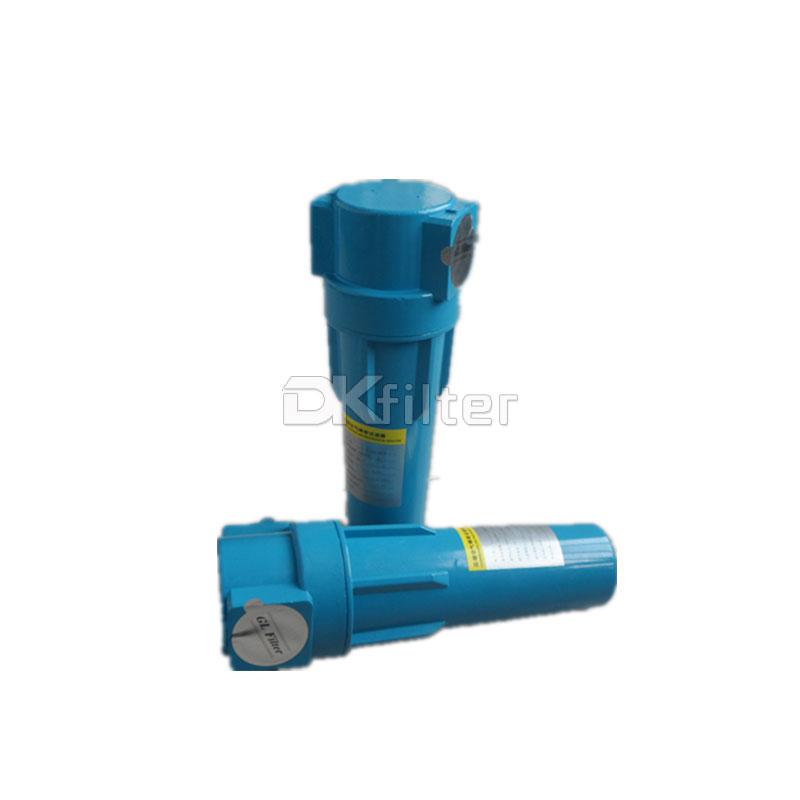

Replacement of Hankison XF Series High-efficient Compressed

The replacement of Hankison XF series compressed air filters are complete in specifications and can handle flows of 1~252Nm³/min.There are XF9(3µl) XF7(1µl) XF5(0.01µl) XF3(0.01µl) XF1(activated carbon) five grades for you to choose.


General specifications

Brand:DKFILTER

Model:XF3-24

Application:Compressed air

Max. flow rate :2.9NM/min

Filtration accuracy:0.01μm

Connected dimension:1-1/2"

Filter element type:E3-24

Maximum working pressure:16barg/232Psig

Maximum operating temperature:66℃ (120℃ is also available)

Inquire
Product Details Related Specification Filters Communication Requirements

The replacement of Hankison XF series compressed air filters are complete in specifications and can handle flows of 1~252Nm³/min.There are XF9(3µl), XF7(1µl), XF5(0.01µl), XF3(0.01µl), XF1(activated carbon) five grades for you to choose.DKFILTER has the world's most advanced testing equipment imported from Germany.We can also make special products according to the requirements and dimensions provided by customers,and provide Domnick Hunter,Hankison,Paker, Ultrafilter,Hiross,Zander,BEA,SMC and other quality precision filter element replacement.

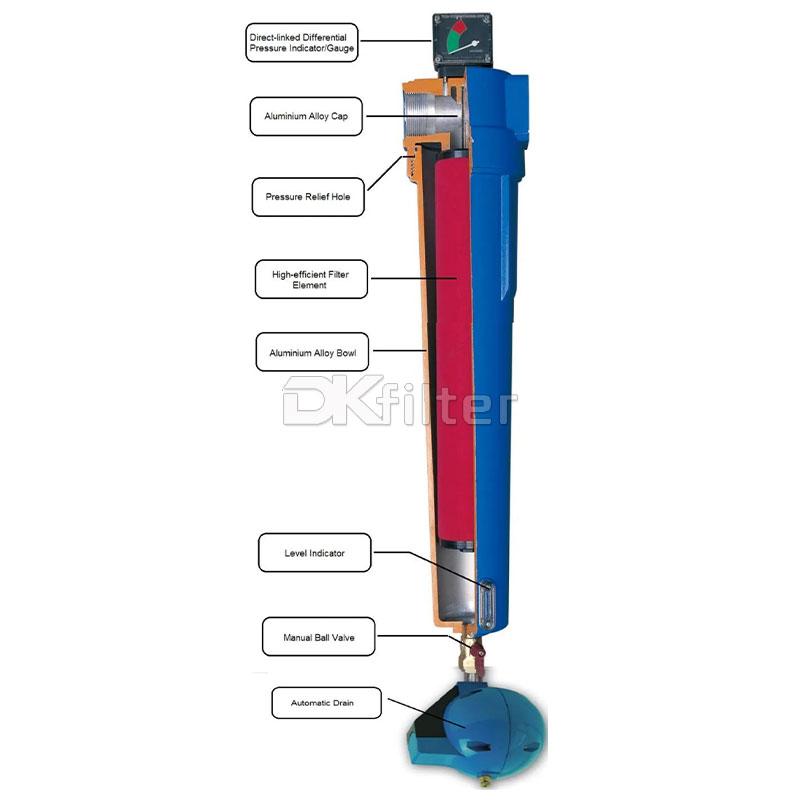

Characteristics:

· Extend existing routes to mitigate pressure drop

· The filter shell is made of high quality aluminum alloy and carbon steel.

· Coated with epoxy powder to improve durability and corrosion resistance.

· The inlet and outlet are connected with threads. Filter housing is marked with wind direction for easy installaTion.

· Compact design to reduce maintenance space.

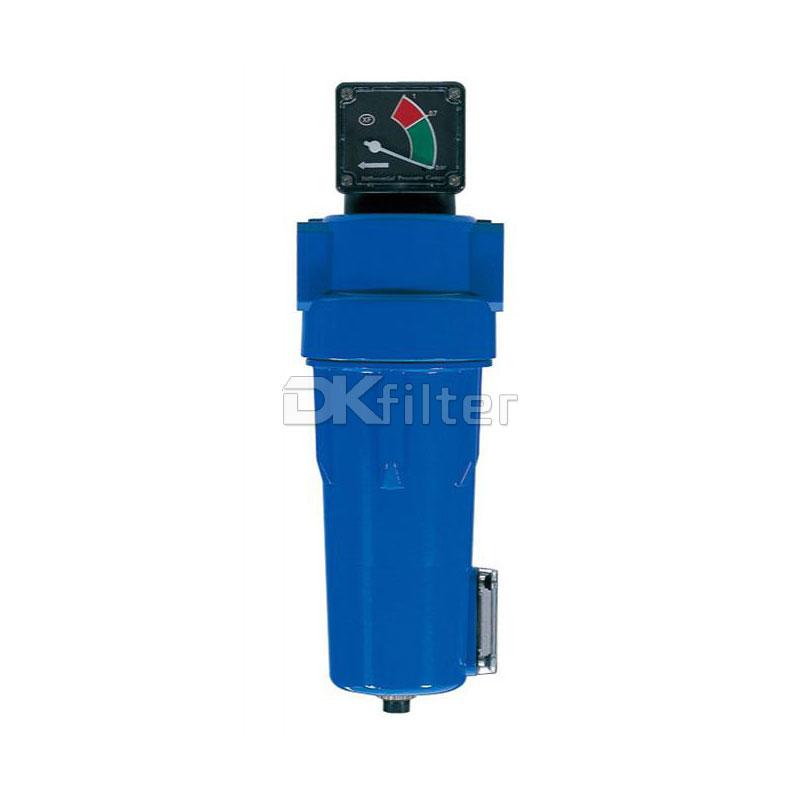

· The new pressure indicator indicates the best time to change the filter.

· The level indicator is convenient to monitor the level,pay attention to the preventive maintenance status, and avoid downstream pollution.

· Reliable automatic drainer

Replacement of Hankison XF Series High-efficient CompressedReplacement of Hankison XF Series High-efficient CompressedReplacement of Hankison XF Series High-efficient Compressed



Related Specification Filters

More filters with techinical data:

Filter P/N. Flow Rate(NM/min) Pipe connections Filter element P/N. Qty of element(Pcs) A B C D Appearance design

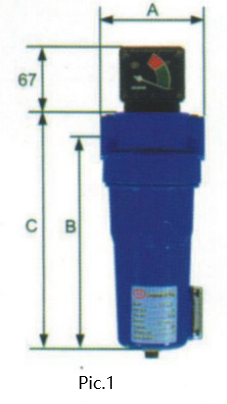

XF*-16 1 1/2" E*-16 1 104 217 243 Pic. 1
XF*-20 1.72 1" E*-20 1 104 287 313 Pic. 1
XF*-24 2.9 1-1/2" E*-24 1 138 385 424 Pic. 1
XF*-28 4.9 1-1/2" E*-28 1 138 385 424 Pic. 1
XF*-32 7.2 1-1/2" E*-32 1 138 585 624 Pic. 1

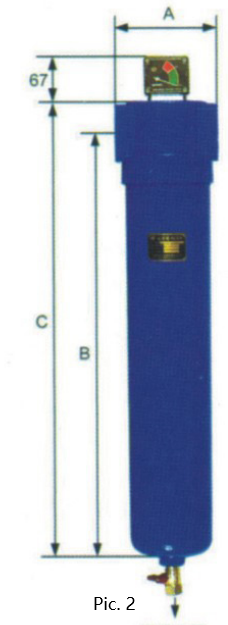

XF*-36 10.7 2" E*-36 1 148 639 685 Pic. 2
XF*-40 14 2" E*-40 1 148 639 685 Pic. 2

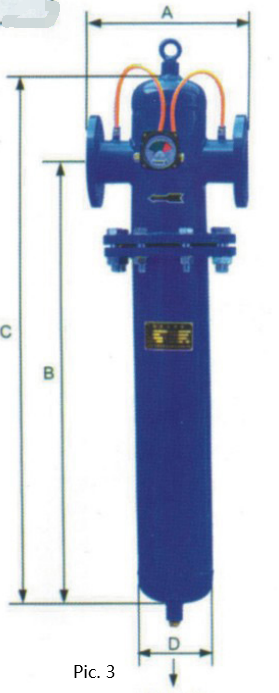

XF*-44 17.7 DN65 E*-44 1 300 770 940 125 Pic. 3
XF*-48 22 DN80 E*-48 1 336 940 1118 150 Pic. 3
XF*-56 36 DN100 E*-44 2 500 950 1150 250 Pic. 3
XF*-60 54 DN100 E*-44 3 500 950 1150 250 Pic. 3
XF*-64 72 DN100 E*-44 4 600 990 1250 350 Pic. 3
XF*-68 90 DN125 E*-44 5 600 990 1250 350 Pic. 3
XF*-70 108 DN125 E*-44 6 600 1070 1350 350 Pic. 3
XF*-72 105 DN150 E*-44 7 630 1020 1350 400 Pic. 3
XF*-73 144 DN150 E*-44 8 700 1020 1350 450 Pic. 3
XF*-74 162 DN150 E*-44 9 780 1070 1400 500 Pic. 3
XF*-75 180 DN150 E*-44 10 780 1070 1400 500 Pic. 3
XF*-76 198 DN150 E*-44 11 780 1070 1400 550 Pic. 3
XF*-80 252 DN150 E*-44 14 780 1130 1460 550 Pic. 3
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
