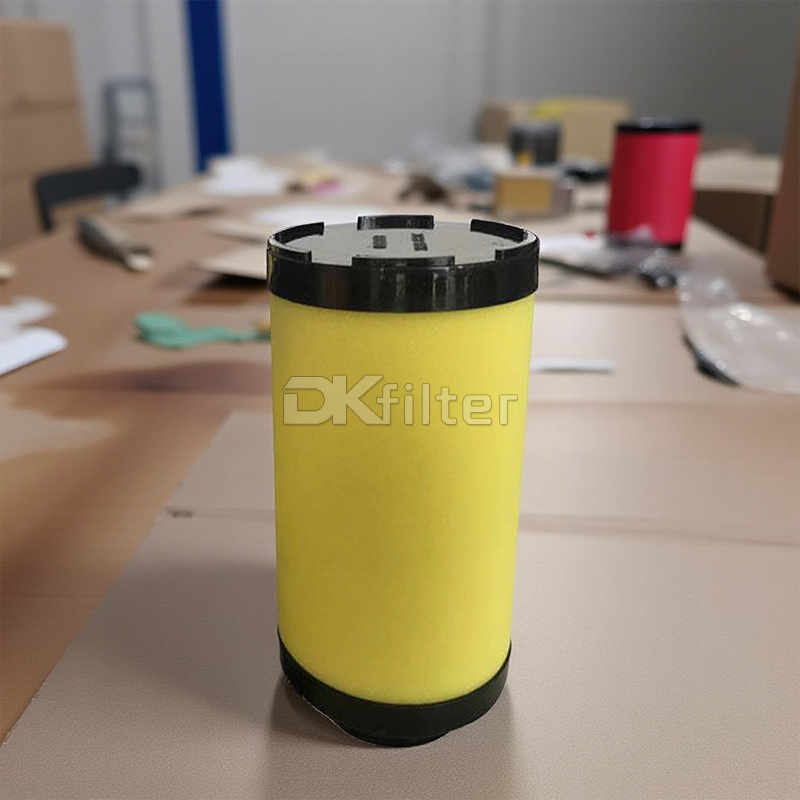

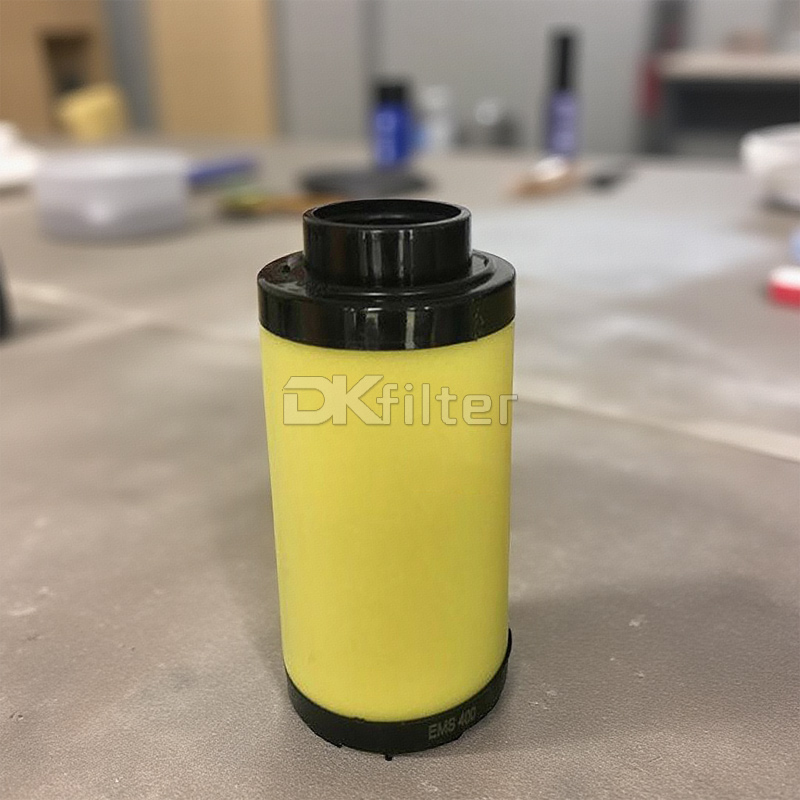

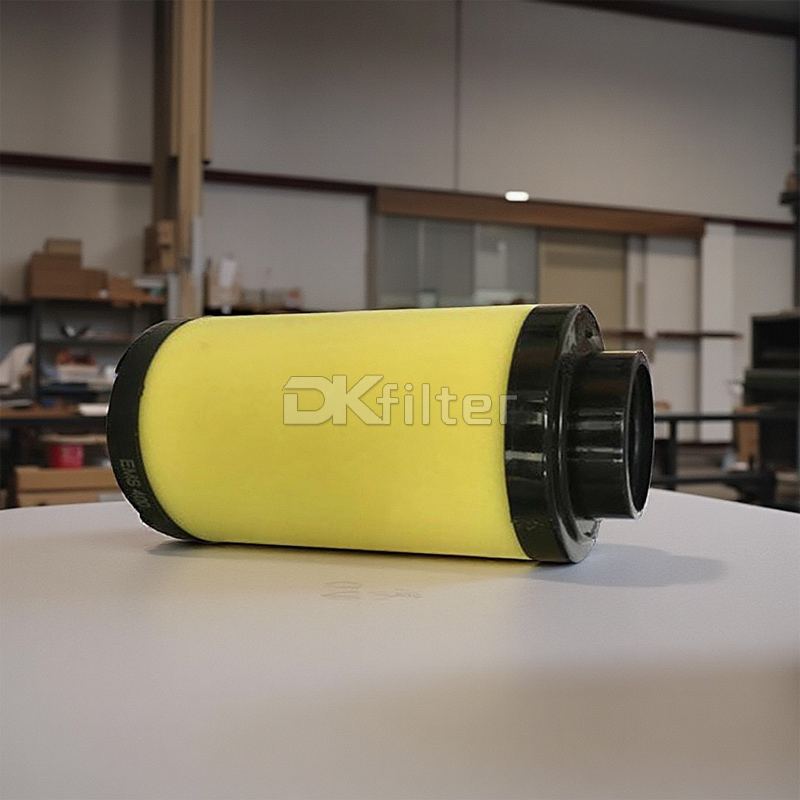

EMS-400 Brief Introduction:
EMS-400 ORION Precision Air Filter Cartridge is a compressed air filter used to remove oil mist, with a filtration precision of 0.01 micron and a collection efficiency of 99.999%.
Working principle:
Diffusion deposition:due to Brownian motion, the movement track of each fine particle is inconsistent with the flow direction of compressed air.As the particle size decreases,the intensity of Brownian motion increases,the probability of collision between fine particles and fibers increases,and the effect of diffusion and deposition becomes stronger.
Direct Interception:This mechanism is related to the particle size.A particle is intercepted when the gap between the fibers is smaller than the diameter of the particle.
Inertial deposition:Streamlines bend as compressed air passes through the fibers.Due to inertia,the particles in the compressed air do not follow the curved streamline but are thrown onto the fibers and deposit there.Obviously, this inertial effect will be strengthened with the increase of particle size and the increase of compressed air flow rate.
Gravity deposition:All kinds of particles have a certain settling velocity due to the action of gravity.Therefore,the trajectory of the particles deviates from the streamline of the compressed air,and this deviation can cause the particles to hit the fibers.
Electrostatic deposition:Both particles and fibers may be charged,so particles can be deposited on fibers due to the force or induction between the charges.
Van der Waals deposition:When the distance between particles and fibers is small,van der Waals intermolecular forces can cause particle deposition.Due to the simultaneous action of the above several filtration mechanisms,the filtration efficiency of the fiber filter can reach more than 99%.
More BEA Filters’ Technical Data:
| Flow rate（NM/min） | Model |
|---|
| 0.35 | 75 |
| 1.2 | 150 |
| 1.8 | 200 |
| 3.9 | 400 |
| 6.6 | 700 |
| 10.6 | 1000 |
| 1.8 | 1300 |
| 20 | 2000 |
| Series | Micron(μm) | Oil Residue Component(ppm) |
|---|
| ELS | 1 | 1 |
| EMS | 0.01 | 0.01 |
| EKS | 0.01 | 0.003 |
DKFILTER can provide filter elements compatible with various foreign and domestic brands of compressed air filter elements,including:
Hankison
Dominck Hunter
Ulrafiter
Hiross
SMC
Orion
Zander
Bea
Parker
Atlas Copco
Technolab
JM
MANN
Other types are available on request
EMS-400 ORION Precision Air Filter Cartridge
