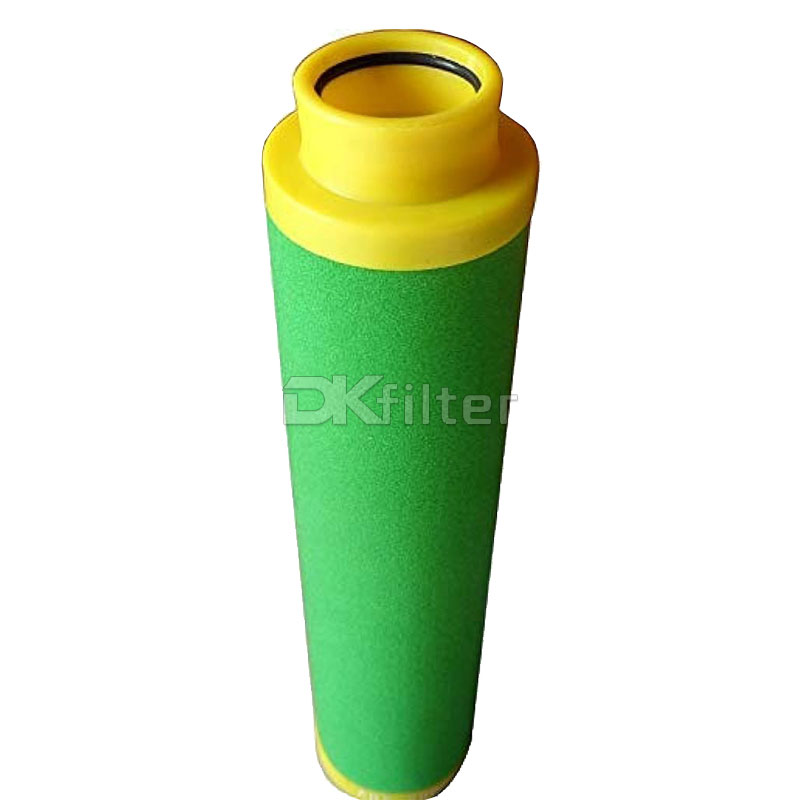

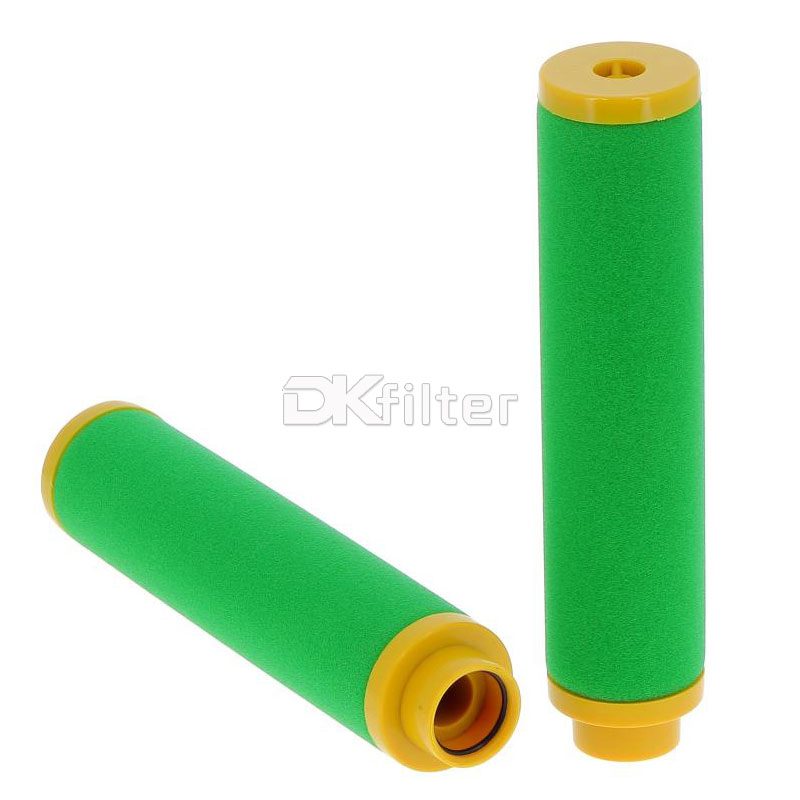

ARS-290-RF BEA Coalescing Filter Element Replacement

ARS-290-RF filter element has been developed for high efficient removal of solid particlesoil aerosols waterhydrocarbonsvapours and odours from compressed air.


General specifications

Quality:

Brand:DKFILTER

Model:ARS-290-RF

Seal:Viton

Micron:1 µm

Differential Pressure:20 mbar

Sizes:OD2.32”*L9.84”

Max. Working Temp.:65 °C

Mini. Working temp.:1.5 °C

Flow direction:Inside to outside

Series:ARS-460 ARS-610 ARS-930 more

ARS-290-RF Brief Introduction:



ARS-290-RF compressed air filter element has been developed for high efficient removal of solid particles,oil aerosols,water,hydrocarbons,vapours and odours from compressed air.

 ARS-290-RF BEA Coalescing Filter Element ReplacementARS-290-RF Features:



Air permeability—the filter element adopts American fiber filter material with strong hydrophobicity and oil repellency,and at the same time adopts a framework with good permeability and high strength to reduce the resistance caused by filtration.



High Efficiency━The filter element adopts German fine open-pore sponge,which can effectively prevent oil and water from being entrained by high-speed airflow,so that the filtered fine oil droplets gather at the lower end of the filter element sponge and drain to the bottom of the filter container.



Airtightness—the joint between the filter element and the filter housing adopts a reliable sealing ring to ensure that the airflow is not short-circuited and prevent impurities from directly entering the downstream without passing through the filter element.



Anti-corrosion - the filter element adopts anti-corrosion reinforced nylon end cover and anti-corrosion filter frame,which can be used in harsh working conditions.


More BEA Filters’ Technical Data:

Flow rate(NM3/min)              Model
0.5ARS-30
1.7ARS-100
3ARS-180
4.8ARS-290
7.7ARS-460
10.2ARS-610
15.5ARS-930
17.5ARS-1050
23.3ARS-1400



            Series               Micron(μm)         Oil Residue Component(ppm)
RB10.1
RA0.010.01
CA0.010.003
RF1Dedusting



DKFILTER can provide filter elements compatible with various foreign and domestic brands of compressed air filter elements,including:

Hankison

Dominck Hunter

Ulrafiter

Hiross

SMC

Orion

Zander

Bea

Parker

Atlas Copco

Technolab

JM

MANN

Other types are available on request

Related Specification Filters

ARS-30RB ARS-30RA ARS-30CA ARS-30RF
ARS-100RA ARS-10OCA ARS-10ORF ARS-10ORB
ARS-18ORA ARS-18OCA ARS-180RF ARS-180RB
ARS-290RA ARS-290CA ARS-290RF ARS-290RB
ARS-46ORA ARS-460CA ARS-460RF ARS-46ORB
ARS-61ORA ARS-610CA ARS-610RF ARS-61ORB
ARS-930RB ARS-930RA ARS-930CA ARS-930RF
ARS-1050RB ARS-1050RA ARS-1050CA ARS-1050RF
ARS-140ORB ARS-1400RA ARS-140OCA ARS-140ORF
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
