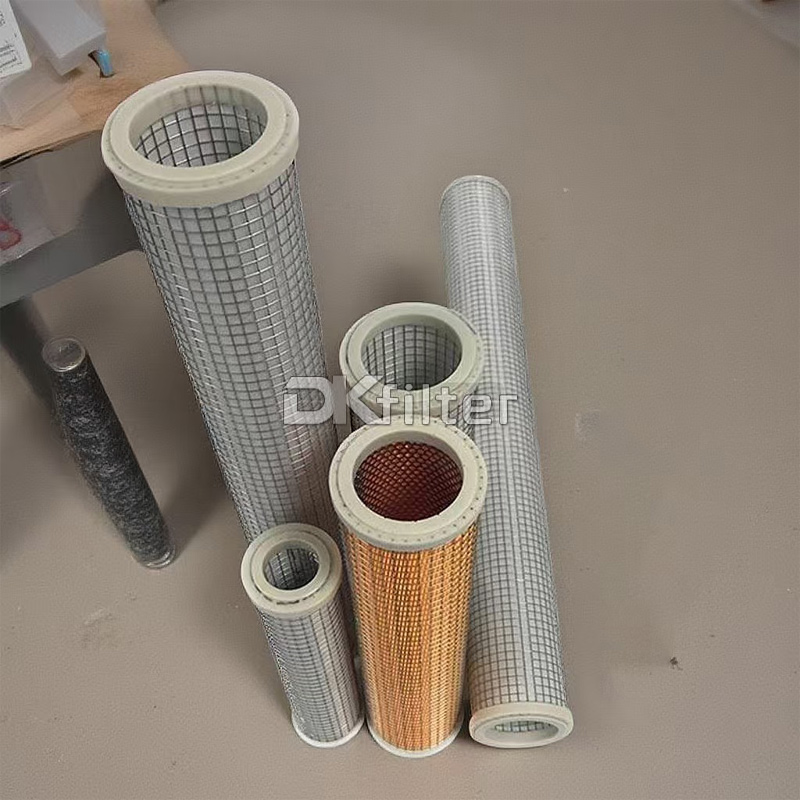

C280-51 Parker Air Coalescing Filter Element

In compressed air filtration when it comes to keeping compressed air clean and oil-freeDKFILTER advanced compressed air filter element C280-51 for compressed air systems offers a rare blend of exceptional performanceproven reliability and uncommon value.


General specifications

Quality:

Brand:DKFILTER

Model:C280-51

Seal:Viton

Micron:0.3µm

Working Temp.Range:225F

Sizes:OD6”*L28”

Initial Differential Pressure:1.5psid

Center Tube:metaL

Series:C25-280 C35-280 more

Brief Introduction:

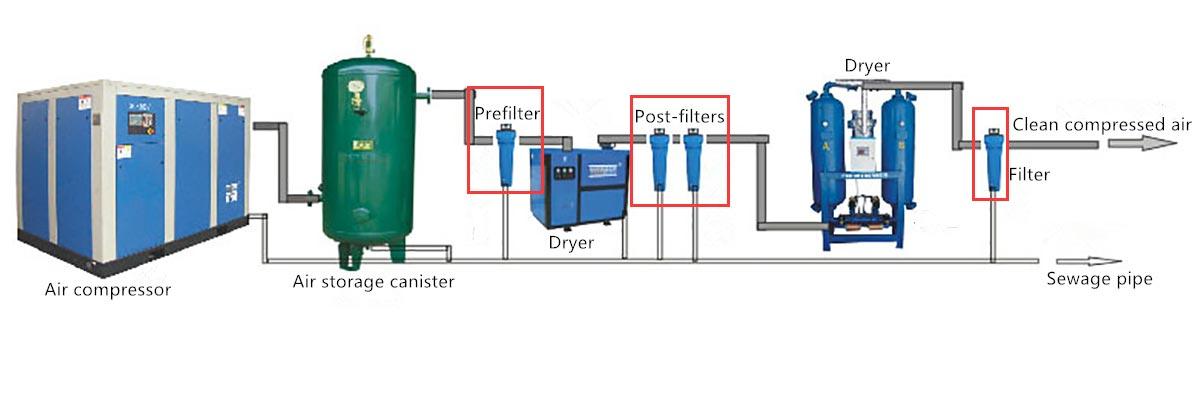

Compressed air is still a major power source for industry even in today's high-tech world.Because of its many advantages over other types of energy,compressed air is increasingly being used.



Unfortunately,compressed air can be contaminated by the atmosphere and the compressor itself.This can lead to corrosion and other related problems,which inevitably lead to system and equipment failures.



In compressed air filtration when it comes to keeping compressed air clean and oil-free,DKFILTER advanced compressed air filter element C280-51 for compressed air systems offers a rare blend of exceptional performance,proven reliability and uncommon value.

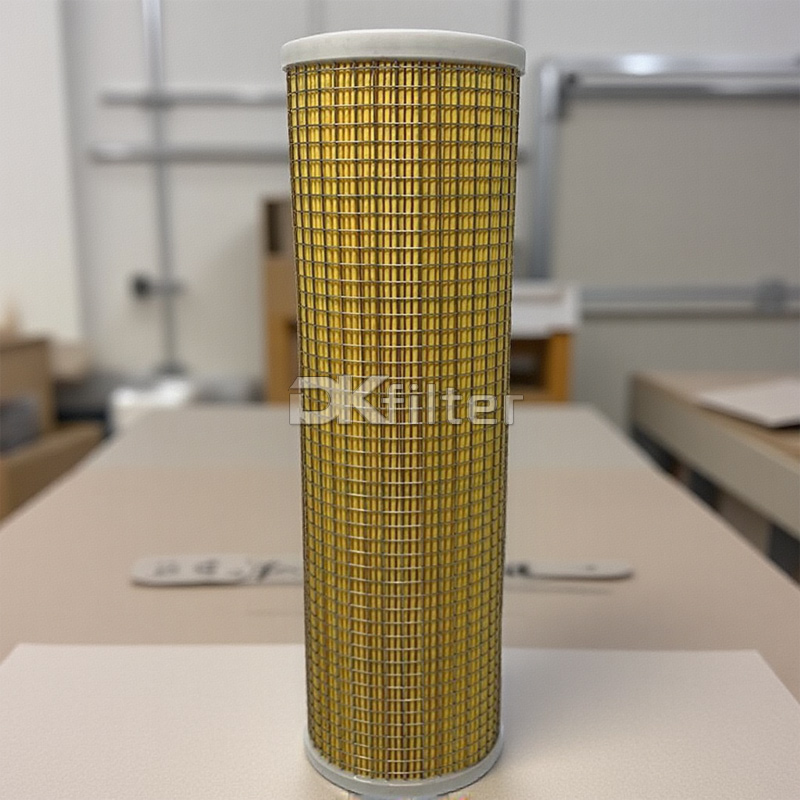

 C280-51 Parker Air Coalescing Filter Element

Technical Data:

Flow rate(NM/min) Model
0.410-25
1.410-50
2.815-60
415-95
620-130
725-130
1225-187
1725-235
2025-280
2835-280
4051-280
5685-250
8085-360



C Series:Oil removal filter elements

QU Series:Oil removal filter elements

P Series:Dedusting filter elements

AU Series:Absorption filter elements


DKFILTER can provide filter elements compatible with various foreign and domestic brands of compressed air filters,including:

Hankison

Dominck Hunter

Ulrafiter

Hiross

SMC

Orion

Zander

Bea

Parker

Atlas Copco

Technolab

JM

MANN

Other types are available on request

Related Specification Filters

Flow rate(NM3/min) C/QU Series P Series AU Series
0.4 C10-25 P10-25 AU10-25
1.4 C10-50 P10-50 AU10-50
2.8 C15-60 P15-60 AU15-60
4 C15-95 P15-95 AU15-95
6 C20-130 P20-130 AU20-130
7 C25-130 P25-130 AU25-130
12 C25-187 P25-187 AU25-187
17 C25-235 P25-235 AU25-235
20 C25-280 P25-280 AU25-280
28 QU35-280 P35-280 AU35-280
40 QU51-280 P51-280 AU51-280
56 QU85-250 P85-250 AU85-250
80 QU85-360 P85-360 AU85-360
If you have no standard filter code numbers please send us your filters specifications or sampleswe can customize as your requests.
