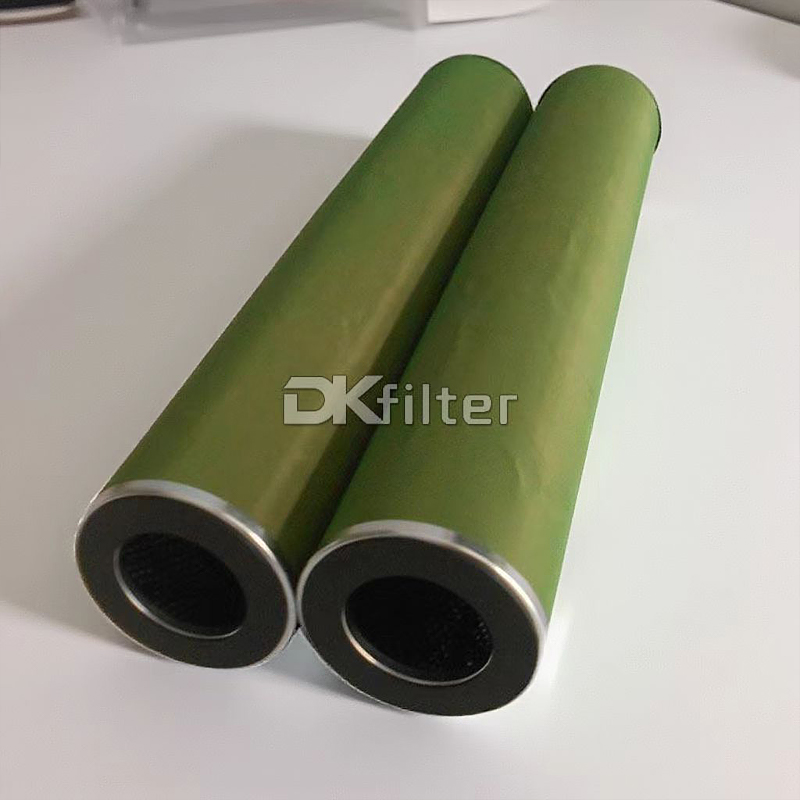

SS644FD-5 FACET SS-5 Series Synthetic separator cartridge

Facet SS644FD-5 oil separator cartridge feature a specially developed treated hydrophobic media.This media provides improved separation of fine water drops compared to standard Teflon screen.An ultrasonically seamed tube of the synthetic screen is placed around an epoxy coated metal shell,then adhesive bonded to metal end caps with gaskets.


General specifications

Quality:

Brand: DKFILTER

Model: SS644FD-5

Filter material: Synthetic Teflon

Length: 44.0 inches

Inside Diameter: 3.5 inches

Outside Diameter: 6.0 inches

End Caps: Injection moldedglass-filled nylon

Center Tube:Corrosion Resistant Steel

Series: SS324FA-5, SS618FB-5, SS624FE-5, SS630FD-5, SS636FE-5 more

SS644FD-5 Introduction:

Facet SS644FD-5 oil separator cartridge feature a specially developed treated hydrophobic media.This media provides improved separation of fine water drops compared to standard Teflon screen.An ultrasonically seamed tube of the synthetic screen is placed around an epoxy coated metal shell,then adhesive bonded to metal end caps with gaskets. We make different types coalescer and separator with synthetic and teflon material.


Structure Parameters:

ItemValue
Length44.0 inches
Outside Diameter6.0 inches
Inside Diameter3.5 inches
SealBuna-N
Filter MaterialSynthetic Teflon
Center TubeCorrosion Resistant Steel
End CapsInjection moldedglass-filled nylon


Performance Features:

• Clean and reusable

• pH ranges from 5 to 9

• Excellent water resistance

• Flow: From outside to inside

• Designed for balanced flow through cartridges

• Recommended maximum operating temperature: 240°F (115 ° C)


Particle filtration curve:

SS644FD-5 oil separator filter has the distinctive Facet Velocigard which provides balanced flow of product throughout the cartridge.All metal components are treated to resist corrosion. The maximum recommended operating temperature is 240°F.Other gaskets, adhesives and metal materials are available for compatibility under extreme working conditions.

We make SS644FD-5 oil separator cartridges are Beta grade. Excellent filtration performance. The Beta X = 1000 number means that for every 1000 particles of size x in the fluid, on average only one particle will pass through the filter.

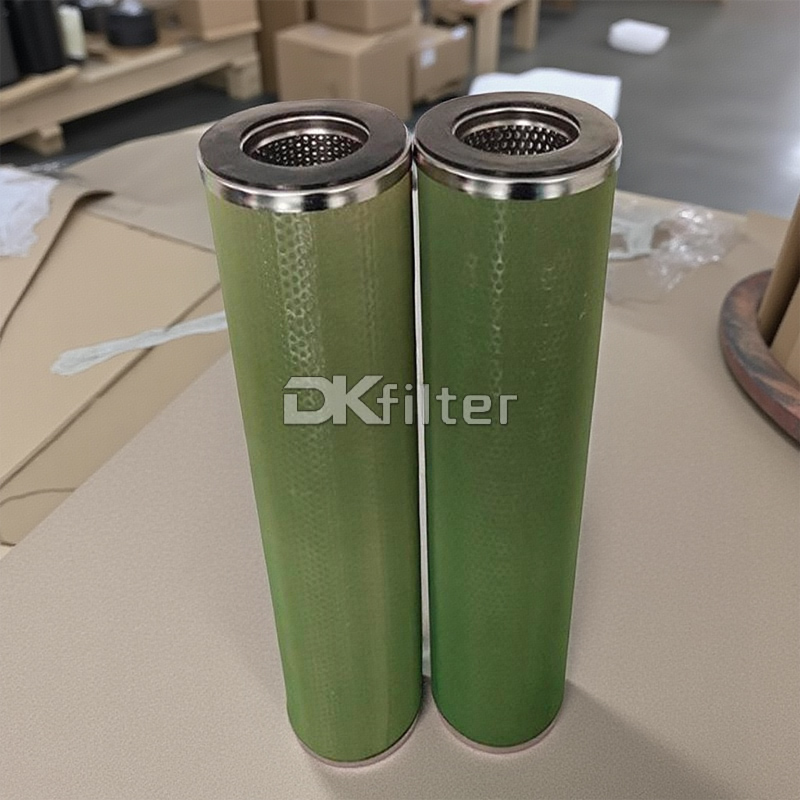

SS644FD-5 FACET SS-5 Series Synthetic separator cartridge


Structrue Materials:

• Synthetic mesh

• Buna-N washers

• Treated metal parts provide protection against corrosion

• Additional washers, adhesives and metal materials may be supplied upon request


Filter Material:

We make SS644FD-5 oil separator cartridge uses high-performance Teflon filter material. Moisture resistance: the surface of Teflon does not stick to water and oil. If there is dirt, can be removed by simply wiping it. Temperature resistance: does not become brittle at freezing temperatures and does not melt at high temperatures. Wear resistance: smooth surface has a very low coefficient of friction. Corrosion resistance: almost immune to any kind of chemical corrosion.

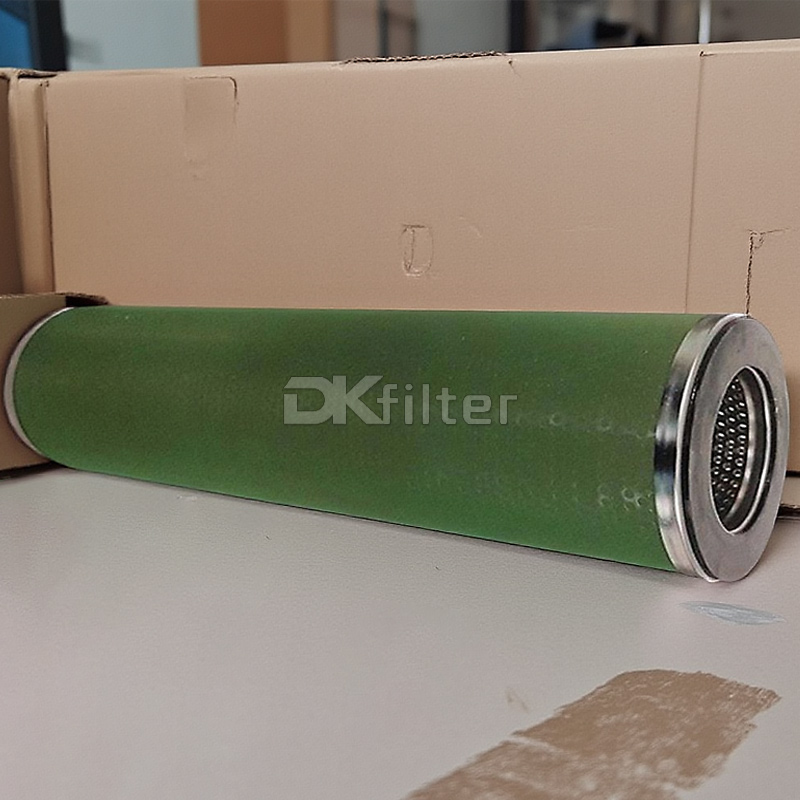

SS644FD-5 FACET SS-5 Series Synthetic separator cartridge


Test Standards:

Before delivery, Our manufactured SS644FD-5 separator filter cartridge will be tested and follow the standards:

ISO 2941 Collapse & Burst Resistant

ISO 2942 Fabrication & Integrity Test

ISO 2943 Material Compatibility with Fluids

ISO 3724 Flow Fatigue Characteristics

ISO 3968 Pressure Drop vs. Flow Rate

ISO 16889 Multi-pass Performance Testing


Customized Processing:

We corporation are excellent separator cartridge filter manufacturer

Parker & Velcon

PECO & Facet

Faudi

Pall

Other types are available on request


Related Specification Filters

P/N.Synthetic P/N.Teflon O.D.(mm) Length(mm) I.D.(mm) I.D.Mounting end(mm)
SS318FA-5 ST318FA-5 76 460 13 51
SS324FA-5 ST324FA-5 76 610 13 51
SS412FC-5 ST412FC-5 105 290 48 48
SS415FB-5 ST415FB-5 114 380 13 89
SS417FB-5 ST417FB-5 114 430 13 89
SS422FC-5 ST422FC-5 105 570 48 48
SS424FB-5 ST424FB-5 114 610 13 89
SS430FB-5 ST430FB-5 114 760 13 89
SS432FC-5 ST432FC-5 105 800 48 48
SS436FB-5 ST436FB-5 114 910 13 89
SS609FB-5 ST609FB-5 152 230 13 89
SS609FF-5 ST609FF-5 152 230 13 114
SS611FD-5 ST611FD-5 152 290 89 89
SS612FB-5 ST612FB-5 152 310 13 89
SS614FD-5 ST614FD-5 152 370 89 89
SS616FD-5 ST616FD-5 152 410 89 89
SS618FB-5 ST618FB-5 152 460 13 89
SS622FD-5 ST622FD-5 152 560 89 89
SS624FB-5 ST624FB-5 152 610 13 89
SS624FE-5 ST624FE-5 152 610 13 105
SS624FF-5 ST624FF-5 152 610 13 114
SS629FD-5 ST629FD-5 152 730 89 89
SS630FB-5 ST630FB-5 152 760 13 89
SS630FD-5 ST630FD-5 152 760 89 89
SS630FE-5 ST630FE-5 152 760 13 105
SS630FF-5 ST630FF-5 152 760 13 114
SS633FB-5 ST633FB-5 152 840 13 89
SS633FD-5 ST633FD-5 152 840 89 89
SS636FB-5 ST636FB-5 152 910 13 89
SS636FD-5 ST636FD-5 152 910 89 89
SS636FE-5 ST636FE-5 152 910 13 105
SS636FF-5 ST636FF-5 152 910 13 114
SS638FD-5 ST638FD-5 152 965 89 89
SS640FD-5 ST640FD-5 152 1020 89 89
SS640FE-5 ST640FE-5 152 1020 13 105
SS640FF-5 ST640FF-5 152 1020 13 114
SS643FB-5 ST643FB-5 152 1090 13 89
SS643FD-5 ST643FD-5 152 1090 89 89
SS644FB-5 ST644FB-5 152 1120 13 89
SS644FD-5 ST644FD-5 152 1120 89 89
SS644FE-5 ST644FE-5 152 1120 13 105
SS644FF-5 ST644FF-5 152 1120 13 114
SS648FD-5 ST648FD-5 152 1220 89 89
SS648FF-5 ST648FF-5 152 1220 13 114
SS656FB-5 ST656FB-5 152 1420 13 89
SS656FF-5 ST656FF-5 152 1420 13 114
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
