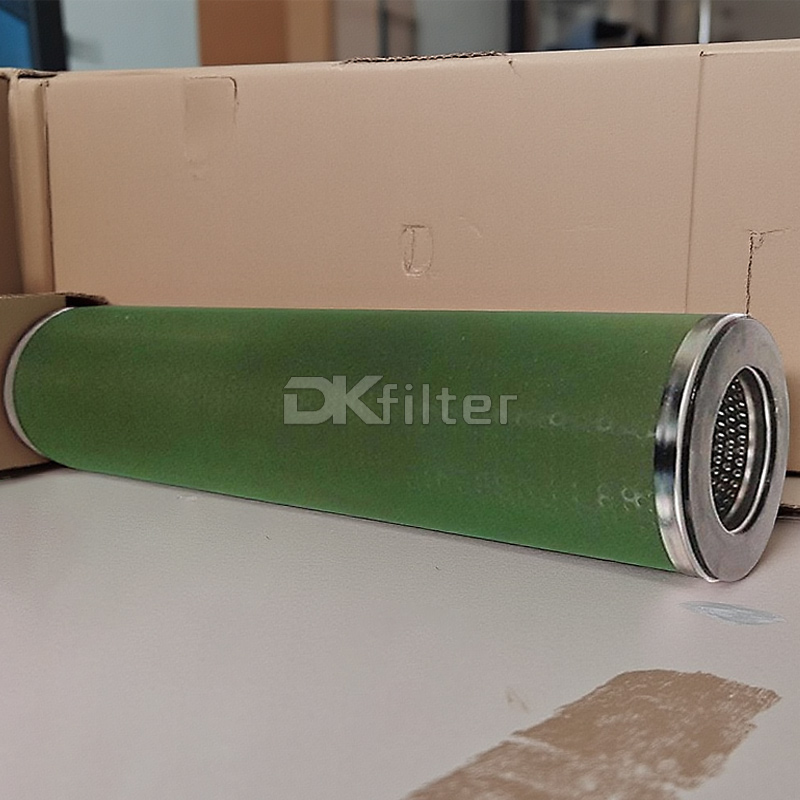

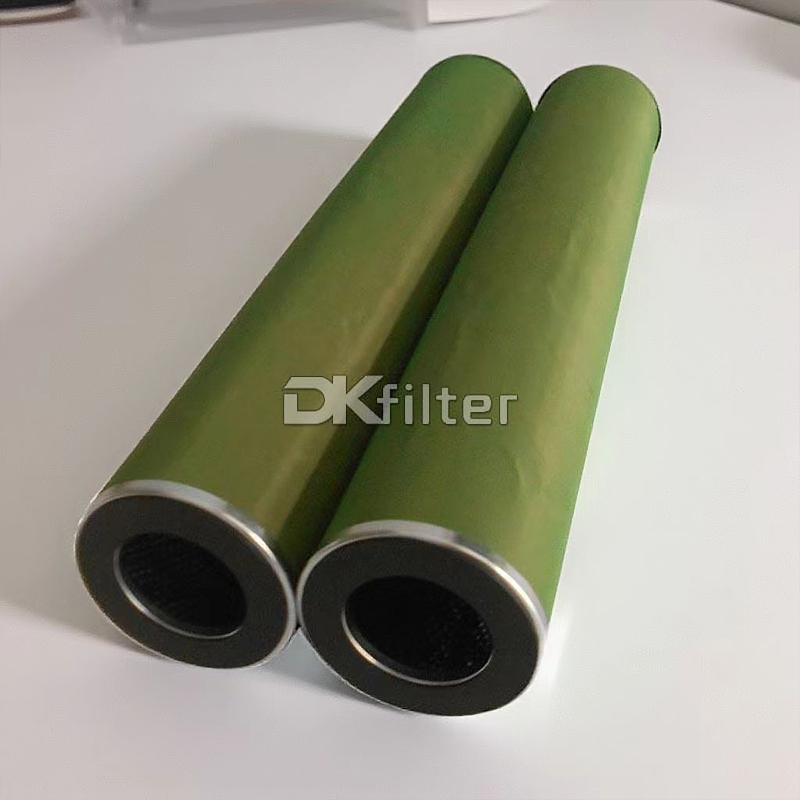

Facet ST643FF-5 Oil and Gas Separator Cartridge

Facet ST643FF-5 is used to remove particulate contamination and free water from oil, fuel or other fluids and improves the required cleanliness standards of the fluids. ST643FF-5 can also be used for recycling and reusing waste liquids to avoid possible scaling and corrosion of downstream equipment.


General specifications

Brand: DKFILTER

Model: ST643FF-5

Type: Oil Separator Filter Cartridge

Filter Material: Teflon

Length: 43 inches

Outside Diameter: 6 inches

Inside Diameter: 3.5 inches

Cleanable and reusable: Yes

Flow direction: Outside to inside

Series: ST-611FD-5, ST-630FE-5, ST-636FD-5, ST-656FB-5 more

Brief Introduction:

Facet ST643FF-5 is used to remove particulate contamination and free water from oil, fuel or other fluids and improves the required cleanliness standards of the fluids. It can also be used for recycling and reusing waste liquids to avoid possible scaling and corrosion of downstream equipment. Made of Teflon, it is a cleanable, reusable, highest quality separation filter element available in a variety of size configurations. The coated filter is wrapped in a treated perforated metal casing, which is seamed folded and secured with metal clips. The screen is coated with Teflon for more effective waterproof properties, ensuring long-term, trouble-free use.


Structure Parameters:

ItemValue
Length43 inches
Outside Diameter.....6 inches
Inside Diameter3.5 inches
Filter MaterialTeflon
SealBuna-N
End CapsCorrosion Resistant Steel
Center TubeCorrosion Resistant Steel


Performance Parameters:

1.Superior water barrier

2.pH range from 5 to 9

3.Cleanable and reusable

4.Flow direction: Outside to inside

5.Designed for balanced flow through cartridge

6.Recommended maximum operating temperature: 240°F


Material:

Our Manufactured ST643FF-5 oil separator cartridge uses high-performance Teflon filter material. Moisture resistance: the surface of Teflon does not stick to water and oil. If there is dirt, can be removed by simply wiping it. Temperature resistance: does not become brittle at freezing temperatures and does not melt at high temperatures. Wear resistance: smooth surface has a very low coefficient of friction. Corrosion resistance: almost immune to any kind of chemical corrosion.

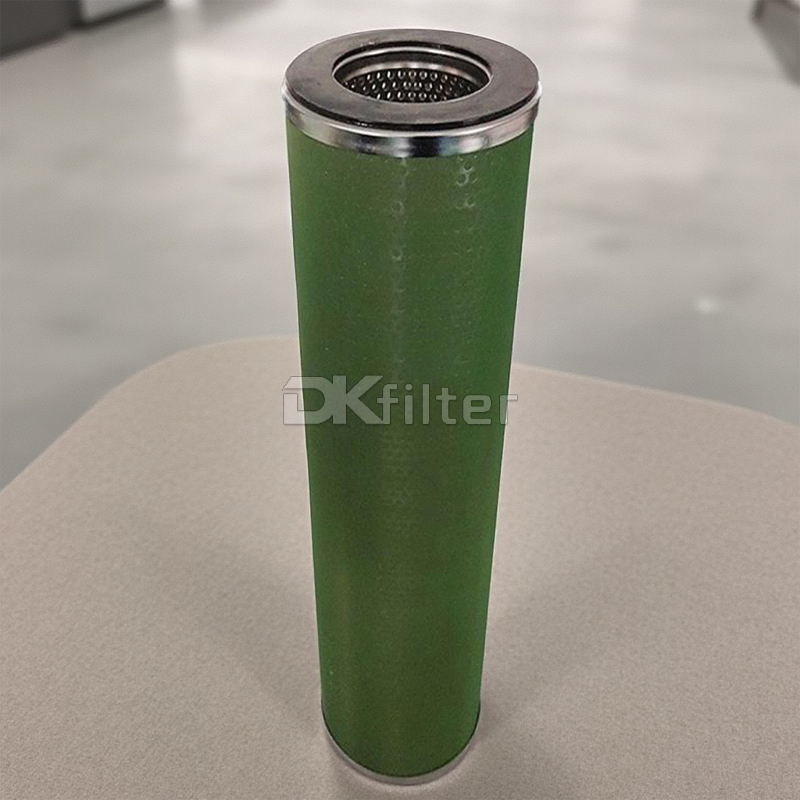

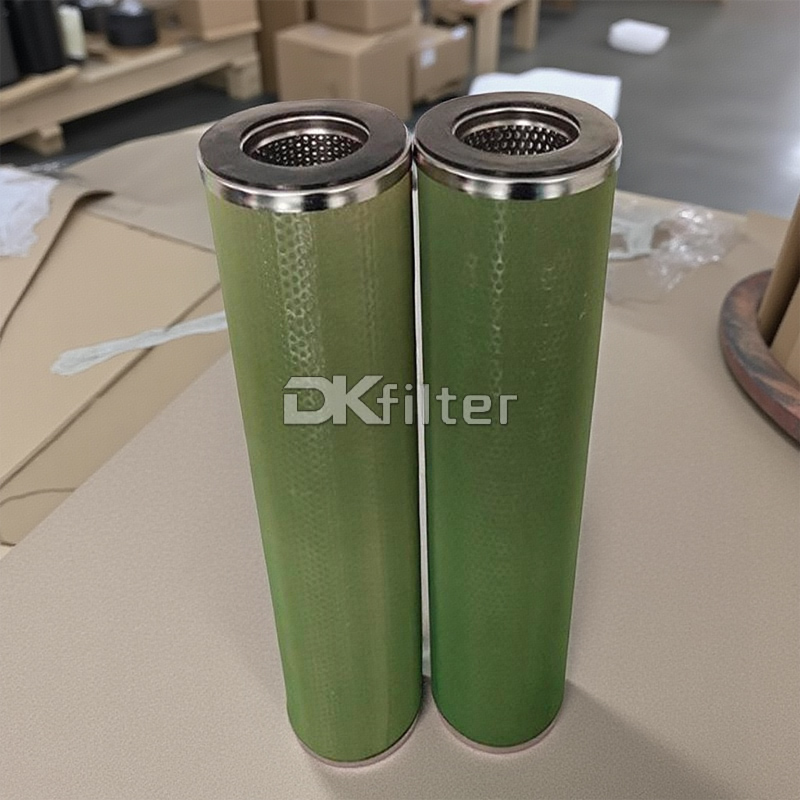

Facet ST643FF-5 Oil and Gas Separator Cartridge


Test Standards:

Before delivery, Our manufactured ST643FF-5 oil separator filter will be tested and follow the standards:

ISO 2941 Collapse & Burst Resistant

ISO 2942 Fabrication & Integrity Test

ISO 2943 Material Compatibility with Fluids

ISO 3724 Flow Fatigue Characteristics

ISO 3968 Pressure Drop vs. Flow Rate

ISO 16889 Multi-pass Performance Testing


Customized Processing:

We corporation are excellent separator cartridge filter manufacturer

Parker & Velcon

PECO & Facet

Faudi

Pall

Other types are available on request


Related Specification Filters

ST318FA-5 ST324FA-5 ST412FC-5 ST415FB-5 ST417FB-5 ST422FC-5
ST424FB-5 ST430FB-5 ST432FC-5 ST436FB-5 ST609FB-5 ST609FF-5
ST611FD-5 ST612FB-5 ST614FD-5 ST616FD-5 ST618FB-5 ST622FD-5
ST624FB-5 ST624FE-5 ST624FF-5 ST630FB-5 ST630FD-5 ST630FE-5
ST630FF-5 ST633FB-5 ST633FD-5 ST636FB-5 ST636FD-5 ST636FE-5
ST636FF-5 ST638FD-5 ST640FD-5 ST640FE-5 ST640FE-5 ST640FF-5
ST643FB-5 ST643FD-5 ST643FF-5 ST644FB-5 ST644FD-5 ST644FE-5
ST644FF-5 ST648FD-5 ST644FD-5 ST644FE-5 ST648FF-5 ST656FB-5

Synthetic material filters:

SS318FA-5 SS324FA-5 SS412FC-5 SS415FB-5 SS417FB-5 SS422FC-5
SS424FB-5 SS430FB-5 SS432FC-5 SS436FB-5 SS609FB-5 SS609FF-5
SS611FD-5 SS612FB-5 SS614FD-5 SS616FD-5 SS618FB-5 SS622FD-5
SS624FB-5 SS624FE-5 SS624FF-5 SS629FD-5 SS630FB-5 SS630FD-5
SS630FE-5 SS630FF-5 SS633FB-5 SS633FD-5 SS636FB-5 SS636FD-5
SS636FE-5 SS636FF-5 SS638FD-5 SS640FD-5 SS640FE-5 SS640FF-5
SS643FB-5 SS643FD-5 SS643FF-5 SS644FB-5 SS644FD-5 SS644FE-5
SS644FF-5 SS648FD-5 SS648FF-5 SS656FB-5 SS656FF-5 SS656FE-5
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
