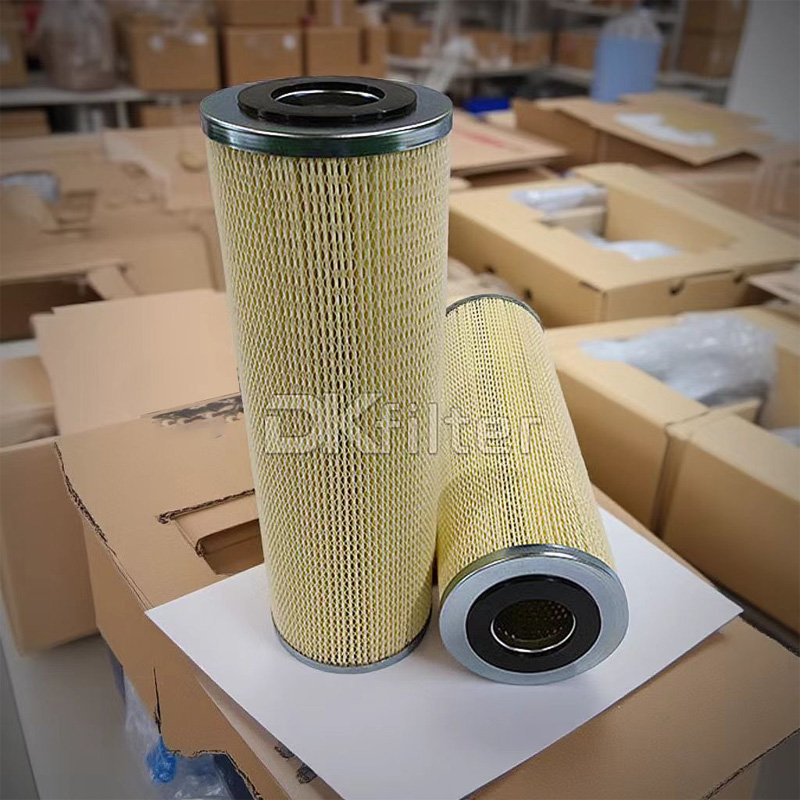

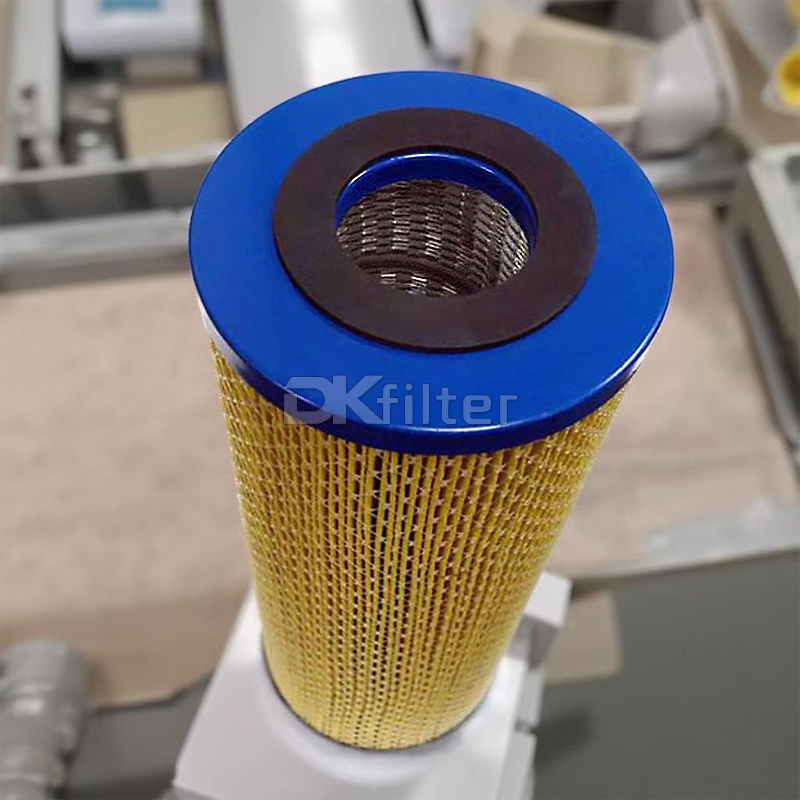

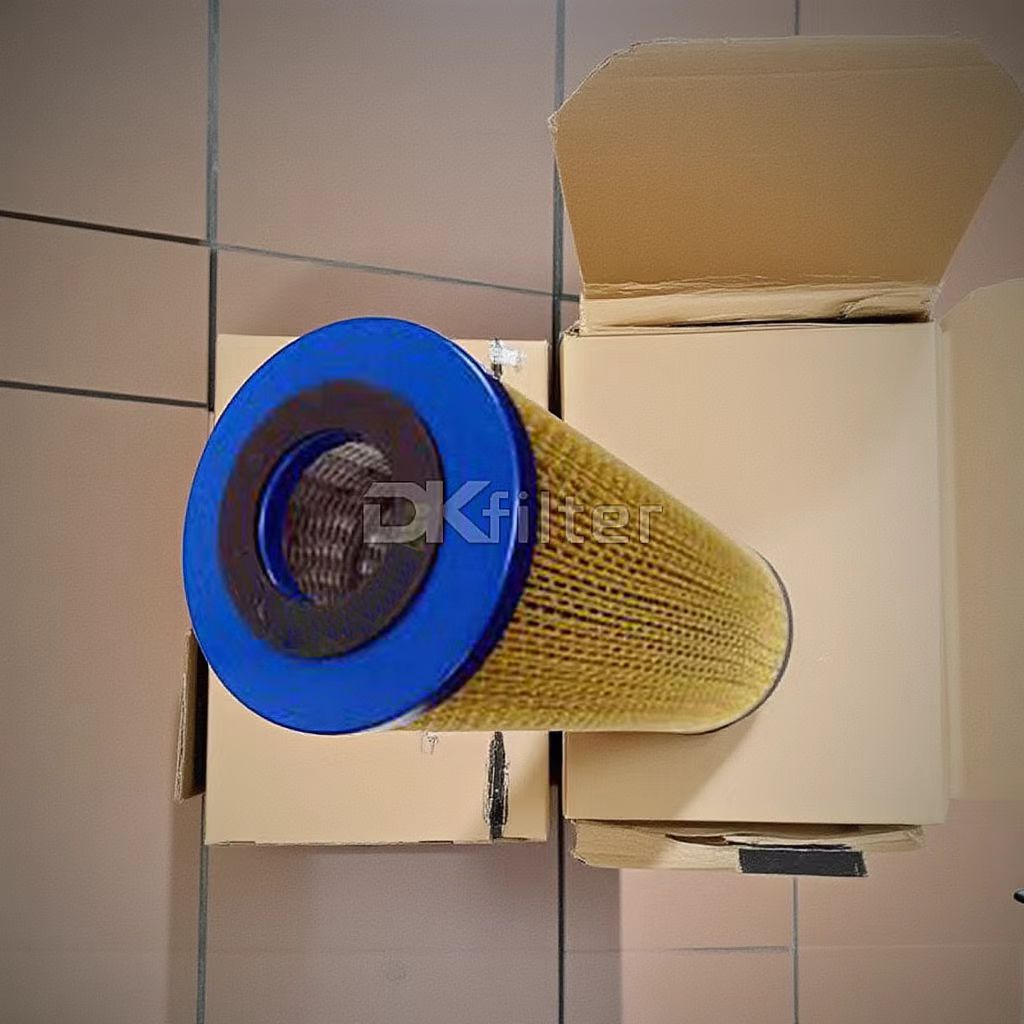

AC-718P4D Velcon Water Absorbing Cartridge Replacement

AC-718P4D Water Absorbing Cartridge is used to remove hydrocarbons and other oils as well as dirt and water from gases. The outer media layer filters out silt, rust, and other particulate contaminants. The inner layer absorbs water and chemicals. AC-718P4D function is to improve the cleanliness of oil and protect the long-term, efficient and safe operation of industrial equipment.


General specifications

Brand: DKFILTER

Model: AC-718P4D

Sizes: OD6 1/4*L18"

Function: Water Absorbing

Filter type: Coalescers Cartridge filter

Filter construction: Pleated layers

End Caps: Corrosion Resistant Steel

Center Tube: Corrosion Resistant Steel

Water capacity: Ranges from 2 to 4 quarts

Series: AC-62905, AC-718P3, AC-718P4D, AC-71805, AC-73605 more

Brief introduction:

AC-718P4D water absorbing cartridge is used to remove hydrocarbons and other oils as well as dirt and water from gases. The outer media layer filters out silt, rust, and other particulate contaminants. The inner layer absorbs water and chemicals. Its function is to improve the cleanliness of oil and protect the long-term, efficient and safe operation of industrial equipment.

When the AC-718P4D cartridge reaches its water holding limit,the media swells shut and the differential pressure rapidly increases.This signals the operator that the cartridge must be changed.

AC-718P4D Velcon Water Absorbing Cartridge Replacement



Related Filters

AC21005 AC71805 AC7181/2 AC80701 AC8071/2 AC81501 AC8151/2

AC82201 AC8221/2 AC71901CR AC71825 AC822P3 AD512225 AD21025

AC82205 AC51225 AC51225 AC51205 AC51205C AC71801 ACI65601CTB

ACO51201B ACO51201C ACO51205B AC61405 ACA210 ACO51201K AC60925

AC71825 AC73601 AC73605 AC815P3 AC815P4D AC718P4D ACO61405C

ACO21001B AC82901 ACO61401K ACI44001C AC718P3 AH511P8SP AC051205C

ACI64401DTB AC7361/2 ACI63301CTB ACI63301LTB AD20125 AC0512050

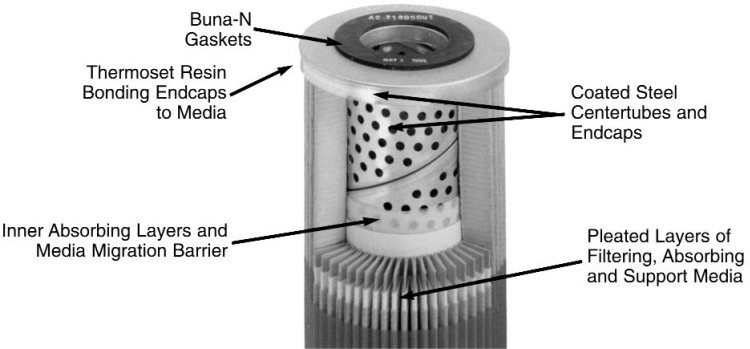

Material Properties:

Our manufactured AC-718P4D fuel filter cartridge media is made from high quality hydrophobic pleated cellulose material. The outer media layer filters out silt, rust and other particulate contaminants, while the inner layer absorbs water and chemicals. AC-718P4D aviation fuel coalescer filter elements are widely used in various industrial industries such as power generation, oil and gas, petrochemicals, aerospace, etc.

• All metal parts are treated for corrosion protection

• Buna-N gaskets - other materials available upon request

• Composite fiber and pleated paper media high surface area pleated core.

AC-718P4D Velcon Water Absorbing Cartridge Replacement


AC-718P4D Features:

DKFILTER makes the replacment,but the quality is same as original with features as below:

• Removes free and emulsified water to less than 2 ppm

• Water capacity for the AC-718P4D cartridges ranges from 2 to 4 quarts.

• Effective filtration of silt and other particulates

• Maximum operating temperature:250°F.

• No media migration or "linting"

• Easy to install and remove

AC-718P4D cartridge will shut off flow when loaded with water or dirt. Appropriate precautions should be taken in critical applications where oil flow must be maintained.

With some lube and hydraulic oils all of the water may not be removed in one pass,and extra passes will be required for total removal.


Filter material pressure curve:

Our manufactured AC-718P4D coalescer water oil filter media is made from high quality hydrophobic pleated cellulose material. The outer media layer filters out silt, rust and other particulate contaminants, while the inner layer absorbs water and chemicals. AC718P4D coalescer filter elements are widely used in various industrial industries such as power generation, oil and gas, petrochemicals, aerospace, etc.

.....AC-718P4D Velcon Water Absorbing Cartridge Replacement


Test standards:

Before delivery, Our manufactured AC-718P4D oil filter cartridge will be tested and follow the standards:

ISO 2941 Collapse & Burst Resistant

ISO 2942 Fabrication & Integrity Test

ISO 2943 Material Compatibility with Fluids

ISO 3724 Flow Fatigue Characteristics

ISO 3968 Pressure Drop vs. Flow Rate

ISO 16889 Multi-pass Performance Testing


Applications:

AC-718P4D is widely used industries:

Gasoline

Transformer Oil

Synthetic Oil

Kerosene

Hydraulic Oil

Phosphate Ester Oil

Diesel Fuel

Turbine Lube Oil

Instrument Air

Insulating Oil

Quench Oil

Process Gases

Related Specification Filters

More code numbers and techinical data:

Model Number Micrometer Rating Nominal Micrometer Rating Beta x=75 I.D. Inches O.D. Inches Length Inches Collapse Pressure psi
AC-21005 5 40 1 2 5/8 9 3/4 75
AC-5121/2E 5 3 1 7/8 5 5/8 12 1/8 75
AC-51205 5 40 1 7/8 5 5/8 12 1/8 75
AC-61405 5 40 3 1/2 6 14 1/2 100
AC-62905 5 40 3 1/2 6 29 1/2 100
AC-64405 5 40 3 1/2 6 44 100
AC-718P3 0.3 2 2 9/16 6 1/4 18 75
AC-7181/2 0.5 3 2 9/16 6 1/4 18 75
AC-718P4D 0.4 2.5 2 9/16 6 1/4 18 75
AC-71801 1 6 2 9/16 6 1/4 18 75
AC-71805 5 40 2 9/16 6 1/4 18 75
AC-7361/2 0.5 3 2 9/16 6 1/4 18 75
AC-73601 1 6 2 9/16 6 1/4 18 75
AC-73605 5 40 2 9/16 6 1/4 18 75
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
