Introduction:
DFO-524PLF5 parker velcon coalescer filter is specially designed for oil-water separation and particle filtration in fuel systems. DFO-524PLF5 is widely used in aviation fuel purification, marine diesel engines, generator sets and industrial hydraulic systems. It can effectively remove free water, emulsified water and particulate pollutants above 5 microns in fuel. Its coalescence separation technology can significantly increase equipment life and reduce maintenance costs. DFO-524PLF5 is the preferred filter element to ensure the stable operation of key equipment.
Performance Parameters：
| Item | Value |
|---|
| Length | 24.0 inches |
| Outside Diameter | 6.0 inches |
| Inside Diameter | 3.5 inches |
| Filtration accuracy | 99.9% |
| pH range | 4 - 9 |
| Micron | 5μm |
| Max Change Pressure | 15 psid |
| Max Temperature | -30° to +120°C |
| Seal | Buna-N |
| End Caps | Glass Filled Nylon |
| Removal Effciency | Effuent solids <0.15 mg/liter |
| Filter Material | Micro Fiberglass and Cellulose, Pleated Paper |

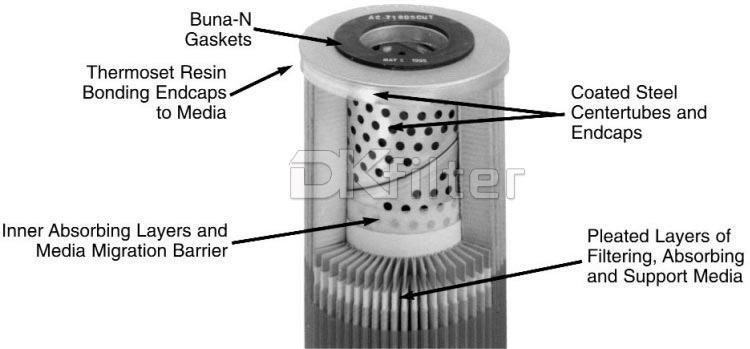

Structural Diagram:
DFO-524PLF5 DFO series filter cartridge mainly is used to improve the cleanliness of oil products, ensure the quality requirements of oil products, and ensure the long-term, efficient and safe operation of industrial equipment.
....
Filter Material:
We make DFO-524PLF5 pleated paper coalescer filter uses a single unit structure to reduce the number of gaskets and improve overall reliability. DFO-524PLF5 coalescer cartridge filter have one or more layers of pleated media inside molded fiberglass laminated cylinders to provide a larger particle filtration surface area. Use pleated ripples and separate materials to keep the pleats open for full use.
• All metal parts are treated for corrosion protection.
• Composite fiber and pleated paper media high surface area pleated core.
• Buna-N gaskets - other materials available upon request.

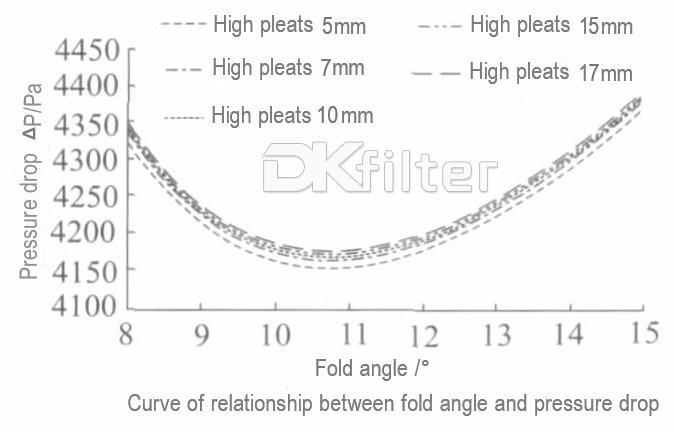

Material performance curve：
DFO-524PLF5 high efficiency filter media is made from high quality hydrophobic pleated cellulose material. The outer media layer filters out silt, rust and other particulate contaminants, while the inner layer absorbs water and chemicals.In the oil, gas and water filtration equipment system, coalescing pleated filters belong to the category of coalescers and separators. DFO-524PLF5 fuel oil filter is widely used in various industrial industries such as power generation, oil and gas, petrochemicals, aerospace, etc.
....
Test Standards:
Before delivery, Our manufactured DFO-524PLF5 park Industrial filter cartridge will be tested and follow the standards:
ISO 2941 Collapse & Burst Resistant
ISO 2942 Fabrication & Integrity Test
ISO 2943 Material Compatibility with Fluids
ISO 3724 Flow Fatigue Characteristics
ISO 3968 Pressure Drop vs. Flow Rate
ISO 16889 Multi-pass Performance Testing
Customized Processing:
We corporation are excellent separator cartridge filter manufacturer
Parker & Velcon
PECO & Facet
Faudi
Pall
Other types are available on request.
DFO-524PLF5 Parker Velcon DFO Series Fuel Oil Coalescer Filter Replacement
