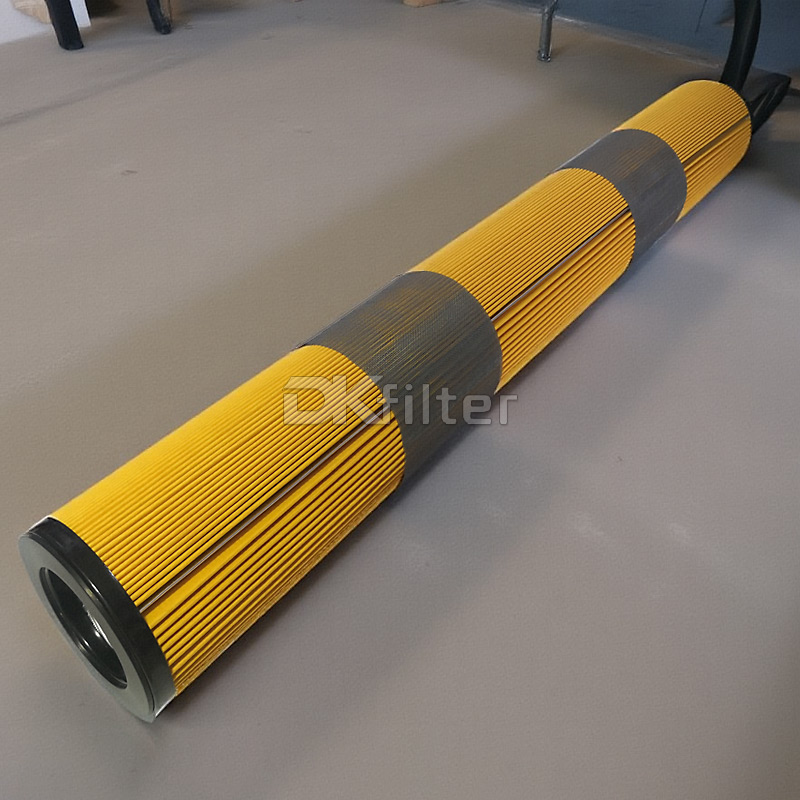

HFS-14605 Parker Racor Aviation Fuel Micronic Coalescer Filter Cartridge Replacement

HFS-14605 is an aviation fuel coalescer filter. HFS-14605 parker racor coalescing filter is designed for aircraft fuel systems, ground refueling equipment and aviation hydraulic systems to remove moisture, particulate contaminants and microorganisms to ensure fuel cleanliness and prevent engine wear and corrosion.


General specifications

Quality:

Brand: DKFILTER

Model: HFS-14605

Filter Type: Coalescer Filter Cartridge

Length: 14.0 inches

Innerside Diameter: 3.5 inches

Outerside Diameter: 6.0 inches

Function: Fuel Oil Liquid Water Absorbing

Filter Material: Micro Fiberglass and Cellulose, Pleated Paper

Series: HFS-43625, HFS-14601, HFS-43601, HFS-43605, HFS-28605, HFS-14605 more

Introduction:

HFS-14605 parker racor aviation fuel filter is widely used in commercial airport refueling machines, military aviation fuel systems, industrial oil treatment and other fields.HFS-14605 micronic coalescing filter is specially designed for aviation fuel purification. HFS-14605 coalescer filter can effectively remove free water, emulsified water, and particulate pollutants (such as metal debris, microorganisms, etc.) in the fuel, and meets international aviation fuel standards (such as MIL-PRF-87252).


Performance Parameters:

ItemValue
Length14.0 inches
Outside Diameter6.0 inches
Inside Diameter3.5 inches
PH Range4 ~ 9
Max Temperature-40℃ ~ 120℃
Flow Range10-150 L/min
Removal EffciencyEffuent solids <0.15 mg/liter
Separation Efficiency≥99.9% (water separation capacity)
Filtration Accuracy5 μm (Glass fiber + highly absorbent medium)
SealBuna-N
Center TubeCorrosion Resistant Steel
Filter MaterialMicro Fiberglass and Cellulose, Pleated Paper


Notes:

When HFS-14605 filter cartridge reaches its water holding limit,the media swells shut and the differential pressure rapidly increases. This signals the operator that the cartridge must be changed.

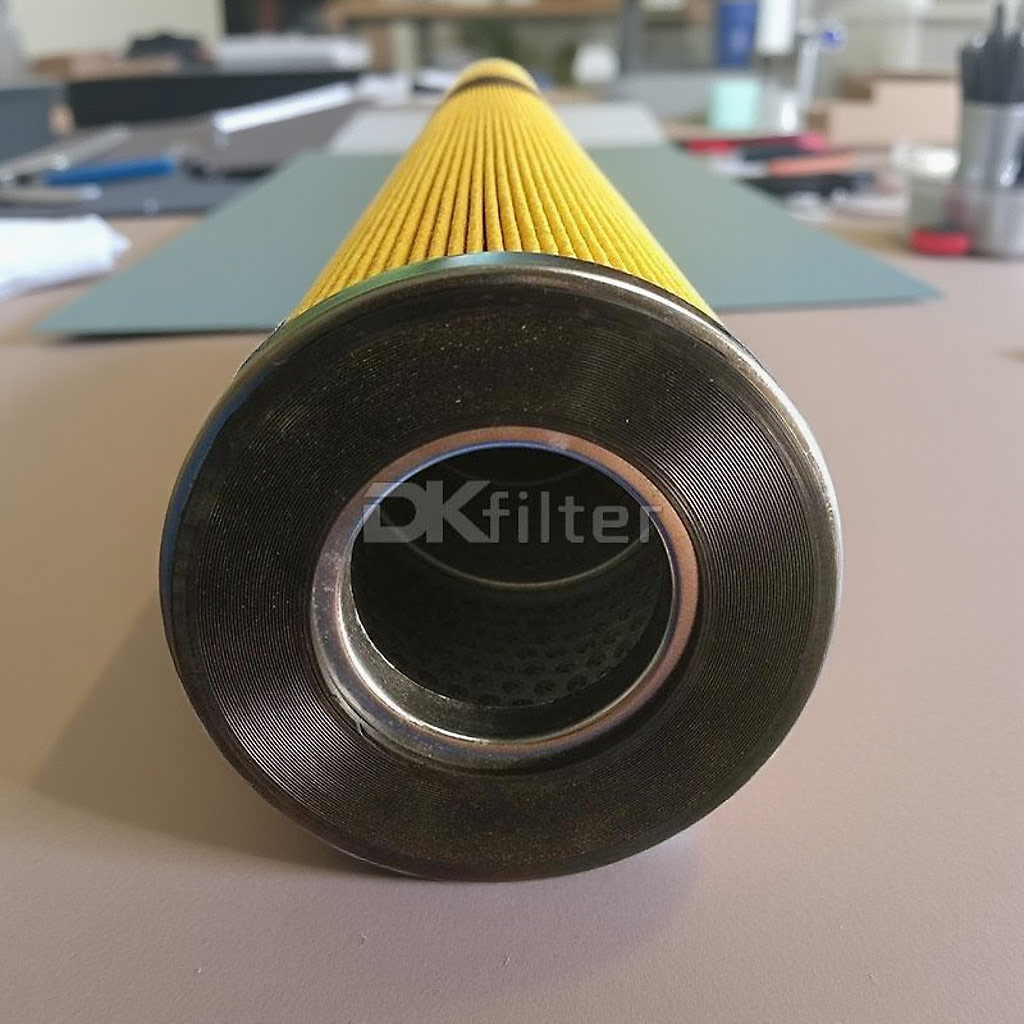

HFS-14605 Parker Racor Aviation Fuel Micronic Coalescer Filter Cartridge Replacement



Filter Material:

We make HFS-14605 coalescing filters use a single unit structure to reduce the number of gaskets and improve overall reliability. HFS-14605 coalescers cartridge filter have one or more layers of pleated media inside molded fiberglass laminated cylinders to provide a larger particle filtration surface area. Use pleated ripples and separate materials to keep the pleats open for full use.

• The composite glass fiber and fold medium coalescers mainly remove particles from high surface area fold cores.

• All glassfiber media aggregator combines deep particle filtration with deep coalescence structure.

• The all-glass fiber design has a continuous thinner dielectric layer to achieve deep filtration of particles.

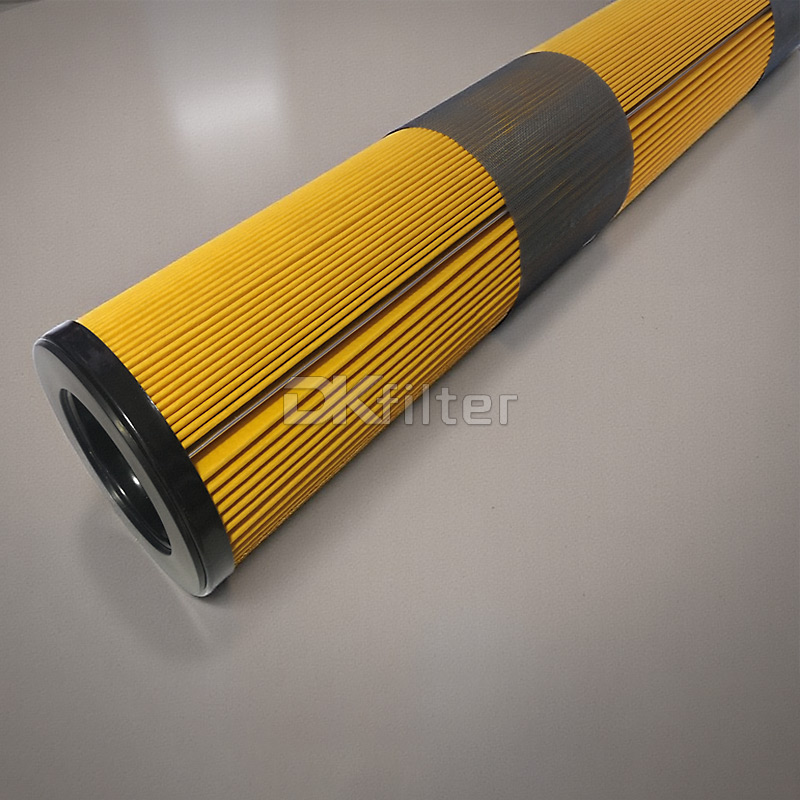

HFS-14605 Parker Racor Aviation Fuel Micronic Coalescer Filter Cartridge Replacement


Material Properties:

Our manufactured HFS-14605 aviation fuel coalescer filter cartridge media is made from high quality hydrophobic pleated cellulose material. The outer media layer filters out silt, rust and other particulate contaminants, while the inner layer absorbs water and chemicals. HFS-14605 micronic coalescer filter is widely used in various industrial industries such as power generation, oil and gas, petrochemicals, aerospace, etc.

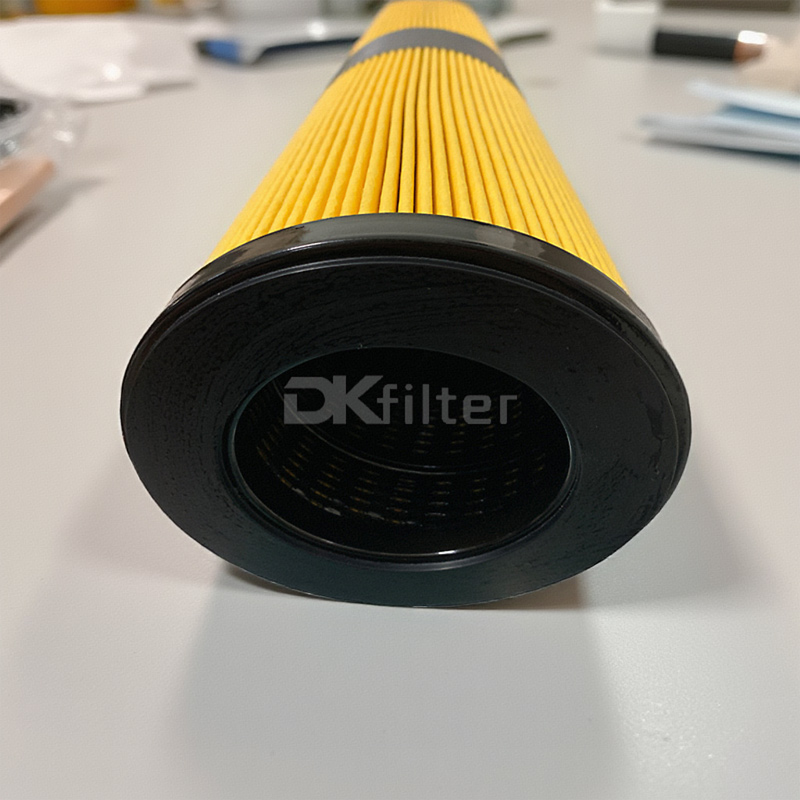

HFS-14605 Parker Racor Aviation Fuel Micronic Coalescer Filter Cartridge Replacement


Test Standards:

Before delivery, Our manufactured HFS-14605 aviation fuel coalescer filter will be tested and follow the standards:

ISO 2941 Collapse & Burst Resistant

ISO 2942 Fabrication & Integrity Test

ISO 2943 Material Compatibility with Fluids

ISO 3724 Flow Fatigue Characteristics

ISO 3968 Pressure Drop vs. Flow Rate

ISO 16889 Multi-pass Performance Testing


Application Scenarios:

• Aviation:

 Airport ground handling fuel truck filtration system

 Aircraft APU (auxiliary power unit) fuel pretreatment

• Industrial:

 Gas turbine fuel purification

 Petrochemical pipeline terminal filtration


Related Specification Filters

HFS-14601 HFS-14605 HFS-28601 HFS-28605 HFS-43601
HFS-14601-S HFS-14605-S HFS-28601-S HFS-28605-S HFS-43601-S
HFS-14601-TB HFS-14605-TB HFS-28601-TB HFS-28605-TB HFS-43601-TB
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
