Introduction:
HFP-43625 parker HFP series fuel oil filter is a high-efficiency industrial filter element designed for high-demand scenarios such as hydraulic systems, air compressors, and lubricating oil filtration. HFP-43625 core function is to intercept tiny particle pollutants (above 5 microns), protect equipment from wear and tear, and extend service life. With its multi-layer composite filter structure and high-pressure resistant materials, it is an ideal choice for improving filtration efficiency and reducing maintenance costs.
Performance Parameters：
| Item | Value |
|---|
| Length | 43.0 inches |
| Outside Diameter | 6.0 inches |
| Inside Diameter | 3.5 inches |
| Filtration accuracy...... | 99.9% |
| pH range | 4 - 9 |
| Micron | 1μm, 5μm,10μm, 25μm |
| Max Change Pressure | 15 psid |
| Max Temperature | -40° to +81°C |
| Seal | Buna-N |
| End Caps | Glass Filled Nylon |
| Removal Effciency | Effuent solids <0.15 mg/liter |
| Filter Material | Micro Fiberglass and Cellulose, Pleated Paper |
Structural Diagram:
HFP-43625 fuel oil filter cartridge mainly is used to improve the cleanliness of oil products, ensure the quality requirements of oil products, and ensure the long-term, efficient and safe operation of industrial equipment.
....
Filter Material:
We make HFP-43625 pleated paper coalescer filter uses a single unit structure to reduce the number of gaskets and improve overall reliability. HFP-43625 oil coalescer cartridge filter have one or more layers of pleated media inside molded fiberglass laminated cylinders to provide a larger particle filtration surface area. Use pleated ripples and separate materials to keep the pleats open for full use.
• All metal parts are treated for corrosion protection.
• Composite fiber and pleated paper media high surface area pleated core.
• Buna-N gaskets - other materials available upon request.
Material performance curve：
HFP-43625 high efficiency filter media is made from high quality hydrophobic pleated cellulose material. The outer media layer filters out silt, rust and other particulate contaminants, while the inner layer absorbs water and chemicals.In the oil, gas and water filtration equipment system, coalescing pleated filters belong to the category of coalescers and separators. HFP-43625 fuel gas filter element is widely used in various industrial industries such as power generation, oil and gas, petrochemicals, aerospace, etc.
....
Test Standards:
Before delivery, Our manufactured HFP-43625 park Industrial filter cartridge will be tested and follow the standards:
ISO 2941 Collapse & Burst Resistant
ISO 2942 Fabrication & Integrity Test
ISO 2943 Material Compatibility with Fluids
ISO 3724 Flow Fatigue Characteristics
ISO 3968 Pressure Drop vs. Flow Rate
ISO 16889 Multi-pass Performance Testing
Customized Processing:
We corporation are excellent separator cartridge filter manufacturer
Parker & Velcon
PECO & Facet
Faudi
Pall
Other types are available on request.

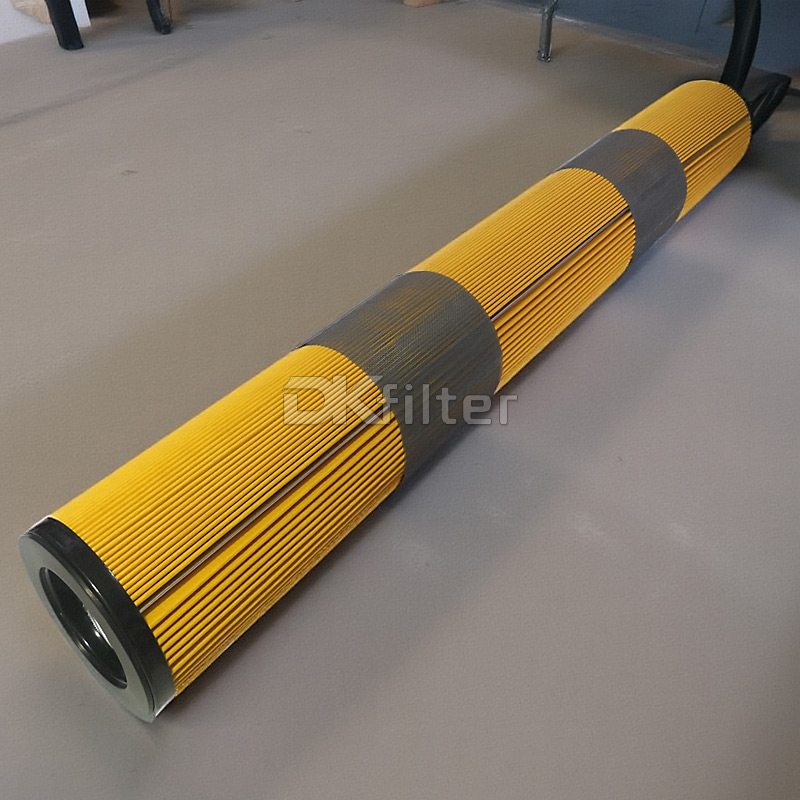

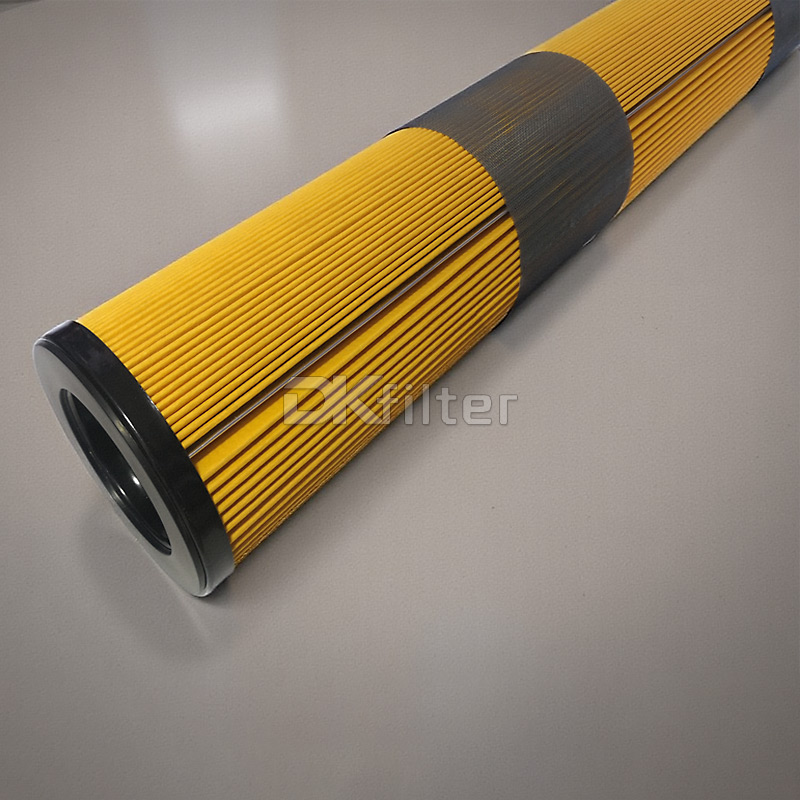

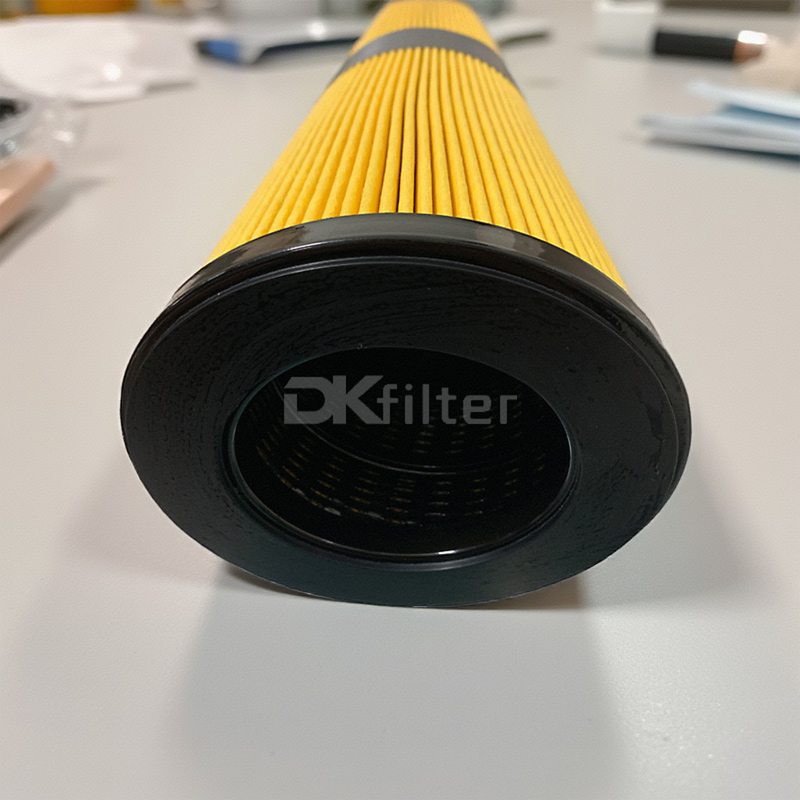

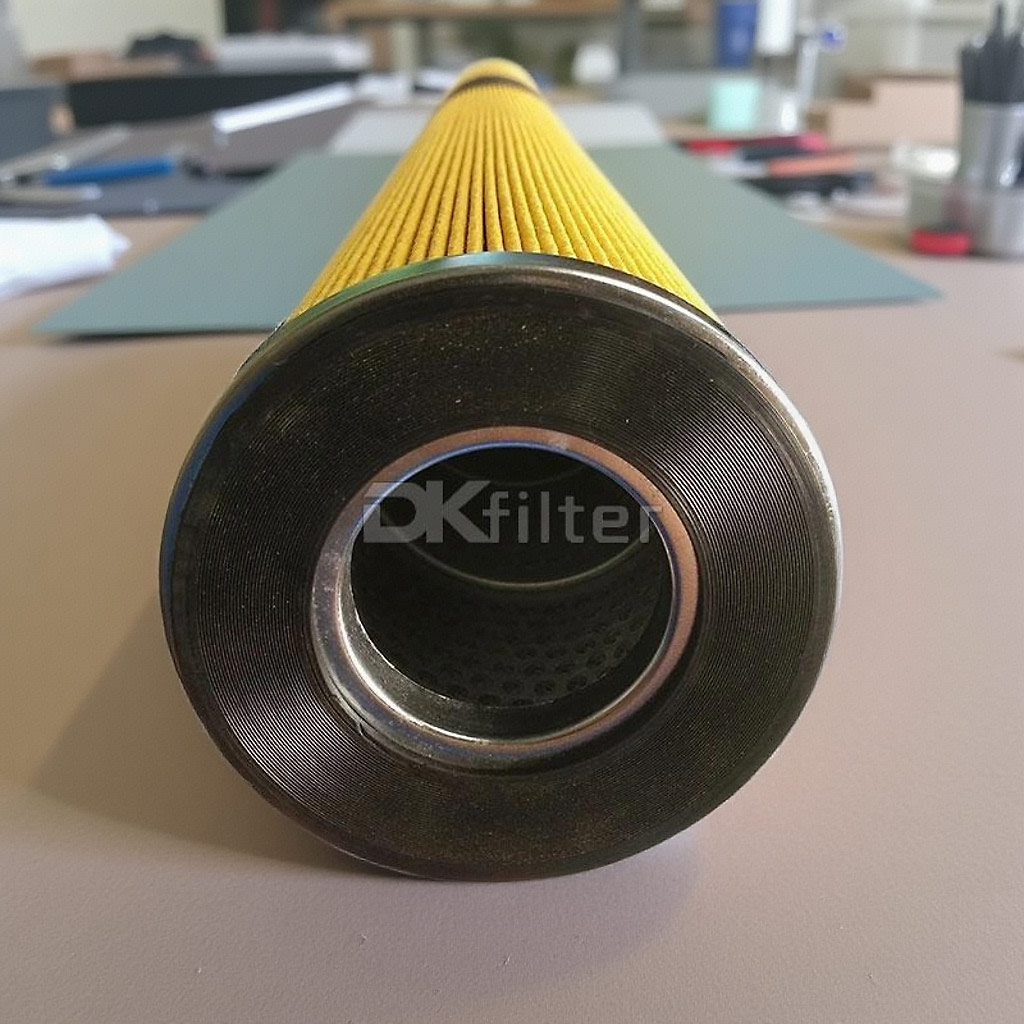

HFP-43625 Parker HFP Series Fuel Oil Coalescer Filter Cartridge Replacement
