Home > Products > Filter Element > Coalescer and separator > SS436FB-5 Facet SS-5 Series Synthetic Separator Filter Cartridge Element
SS436FB-5 Cartridge Element SS436FB-5 Facet SS436FB-5 SS-5 Series SS436FB-5 Separator Filter

SS436FB-5 Facet SS-5 Series Synthetic Separator Filter Cartridge Element

SS436FB-5 facet seperator cartridge filter is used to remove agglomerated water droplets generated by the filter/separator container, without hindering the filtration of hydrocarbons. The direction of flow is from the outside in. Reduce the fuel moisture entering the downstream filtration process and improve combustion efficiency.


General specifications

Quality:

Brand: DKFILTER

Model: SS436FB-5

Type: Synthetic Separator Filter Cartridge

Length: 36.0 inches

Inside Diameter: 3.5 inches

Outside Diameter: 4.5 inches

Filter material: Synthetic Teflon, Fiberglass

Center Tube: Corrosion Resistant Steel

Series: SS616FD-5, SS618FB-5, SS622FD-5,SS624FB-5, SS624FE-5 more

Inquire
Product Details Related Specification Filters Communication Requirements

Introduction:

SS436FB-5 is mainly for aviation kerosene to removes ultra-fine solids and enhances separation of water from jet fuel. We makes different types coalescer and separator with synthetic and teflon material. SS436FB-5 SS-5 series separator filter cartridge maximum recommended operating temperature is 240°F. Other gaskets, adhesives and metal materials are available for compatibility under extreme working conditions


Structure Parameters:

ItemValue
Length36.0 inches
Outside Diameter4.5 inches
Inside Diameter3.5 inches
SealBuna-N
Filter MaterialSynthetic Teflon
Center TubeCorrosion Resistant Steel
End CapsInjection moldedglass-filled nylon


More SS-5 Series

SS318FA-5, SS324FA-5, SS412FC-5, SS415FB-5, SS417FB-5, SS422FC-5, SS424FB-5, SS648FF-5, SS644FD-5

SS430FB-5, SS432FC-5, SS436FB-5, SS609FB-5, SS609FF-5, SS611FD-5, SS612FB-5, SS614FD-5, SS638FD-5

SS616FD-5, SS618FB-5, SS622FD-5,SS624FB-5, SS624FE-5, SS624FF-5, SS629FD-5, SS656FB-5, SS624FE-5

SS630FB-5, SS630FD-5, SS630FE-5, SS630FF-5, SS633FB-5, SS633FD-5, SS636FB-5, SS636FD-5, SS656FF-5

SS636FE-5, SS636FF-5, SS638FD-5, SS640FD-5, SS640FE-5, SS640FF-5, SS643FB-5, SS643FD-5, SS648FD-5


Performance Features:

• Clean and reusable

• pH ranges from 5 to 9

• Excellent water resistance

• Flow: From outside to inside

• Designed for balanced flow through cartridges

• Recommended maximum operating temperature: 240°F (115 ° C)


Particle filtration curve：

We make SS436FB-5 oil fuel separator cartridges are Beta grade. Excellent filtration performance. The Beta X = 1000 number means that for every 1000 particles of size x in the fluid, on average only one particle will pass through the filter.

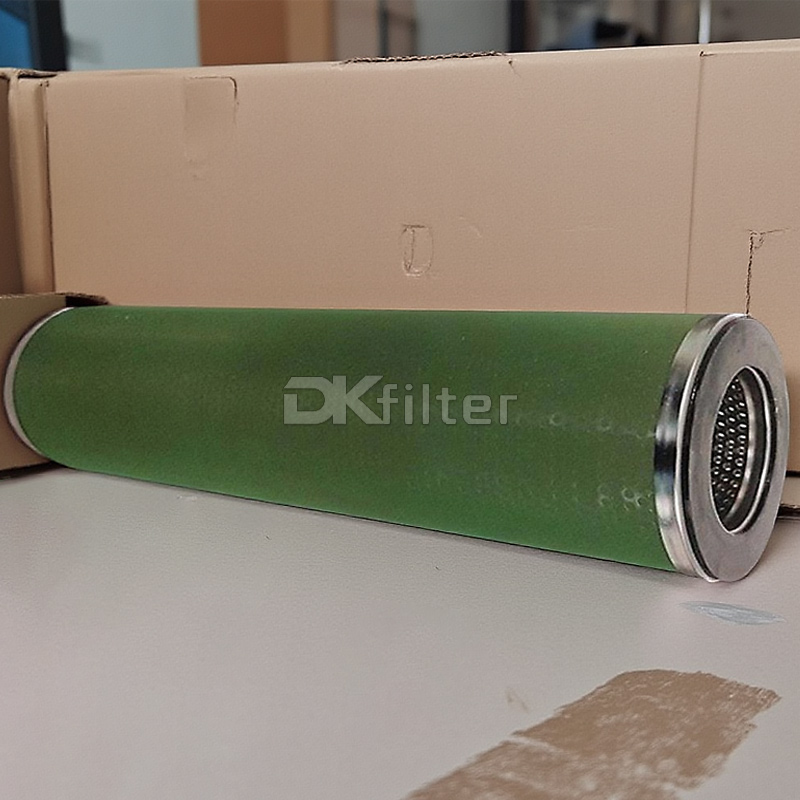

SS436FB-5 Facet SS-5 Series Synthetic Separator Filter Cartridge Element


Structrue Materials:

• Synthetic mesh

• Buna-N washers

• Treated metal parts provide protection against corrosion

• Additional washers, adhesives and metal materials may be supplied upon request


Filter Material:

We make SS436FB-5 oil fuel separator cartridge uses high-performance Teflon filter material. Moisture resistance: the surface of Teflon does not stick to water and oil. If there is dirt, can be removed by simply wiping it. Temperature resistance: does not become brittle at freezing temperatures and does not melt at high temperatures. Wear resistance: smooth surface has a very low coefficient of friction. Corrosion resistance: almost immune to any kind of chemical corrosion.

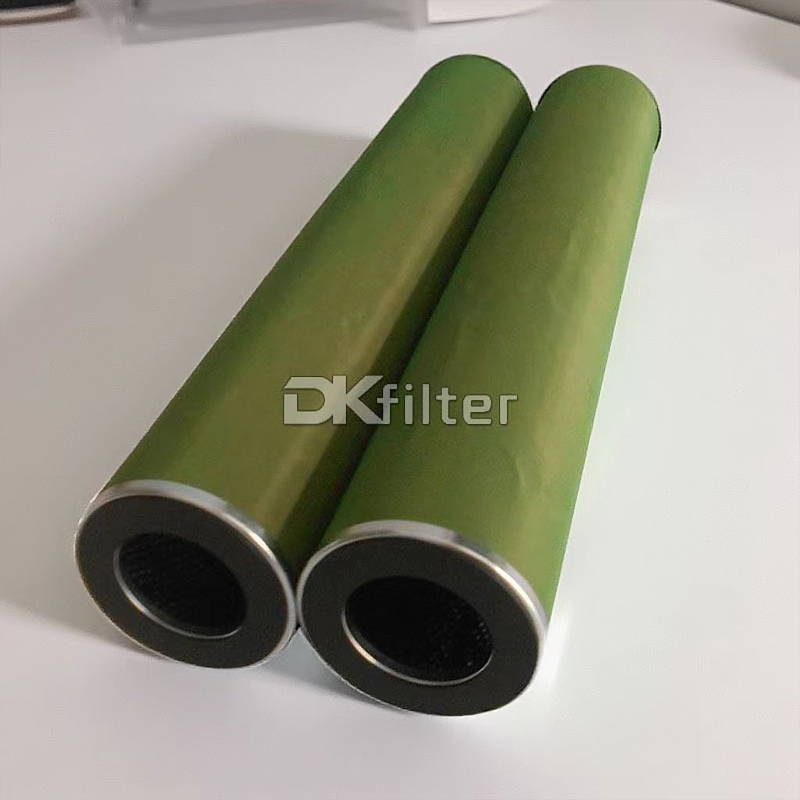

SS436FB-5 Facet SS-5 Series Synthetic Separator Filter Cartridge Element


Test Standards:

Before delivery, Our manufactured SS436FB-5 separator filter cartridge will be tested and follow the standards:

ISO 2941 Collapse & Burst Resistant

ISO 2942 Fabrication & Integrity Test

ISO 2943 Material Compatibility with Fluids

ISO 3724 Flow Fatigue Characteristics

ISO 3968 Pressure Drop vs. Flow Rate

ISO 16889 Multi-pass Performance Testing


Customized Processing:

We corporation are excellent separator cartridge filter manufacturer

Parker & Velcon

PECO & Facet

Faudi

Pall

Other types are available on request


Related Specification Filters

SS318FA-5 ST318FA-5 76 460 13 51
SS324FA-5 ST324FA-5 76 610 13 51
SS422FC-5 ST422FC-5 105 570 48 48
SS424FB-5 ST424FB-5 114 610 13 89
SS430FB-5 ST430FB-5 114 760 13 89
SS432FC-5 ST432FC-5 105 800 48 48
SS436FB-5 ST436FB-5 114 910 13 89
SS609FB-5 ST609FB-5 152 230 13 89
SS609FF-5 ST609FF-5 152 230 13 114
SS611FD-5 ST611FD-5 152 290 89 89
SS612FB-5 ST612FB-5 152 310 13 89
SS614FD-5 ST614FD-5 152 370 89 89
SS616FD-5 ST616FD-5 152 410 89 89
SS618FB-5 ST618FB-5 152 460 13 89
SS622FD-5 ST622FD-5 152 560 89 89
SS624FB-5 ST624FB-5 152 610 13 89
SS624FE-5 ST624FE-5 152 610 13 105
SS624FF-5 ST624FF-5 152 610 13 114
SS629FD-5 ST629FD-5 152 730 89 89
SS630FB-5 ST630FB-5 152 760 13 89
SS630FD-5 ST630FD-5 152 760 89 89
SS630FE-5 ST630FE-5 152 760 13 105
SS630FF-5 ST630FF-5 152 760 13 114
SS633FB-5 ST633FB-5 152 840 13 89
SS633FD-5 ST633FD-5 152 840 89 89
SS636FB-5 ST636FB-5 152 910 13 89
SS636FD-5 ST636FD-5 152 910 89 89
SS636FE-5 ST636FE-5 152 910 13 105
SS636FF-5 ST636FF-5 152 910 13 114
SS638FD-5 ST638FD-5 152 965 89 89
SS640FD-5 ST640FD-5 152 1020 89 89
SS640FE-5 ST640FE-5 152 1020 13 105
SS640FF-5 ST640FF-5 152 1020 13 114
SS643FB-5 ST643FB-5 152 1090 13 89
SS644FB-5 ST644FB-5 152 1120 13 89
SS644FD-5 ST644FD-5 152 1120 89 89
SS644FE-5 ST644FE-5 152 1120 13 105
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
