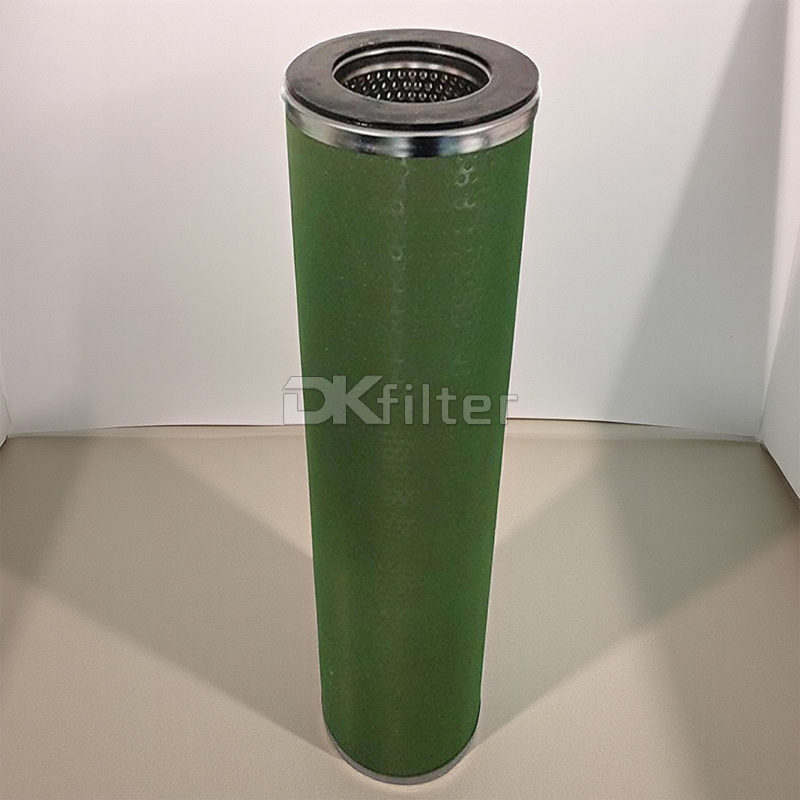

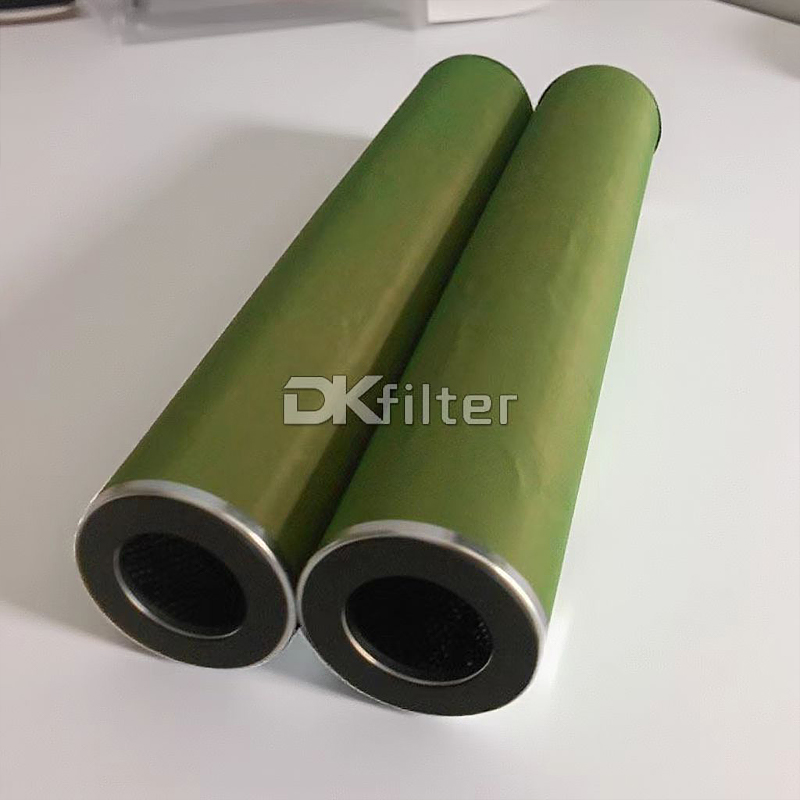

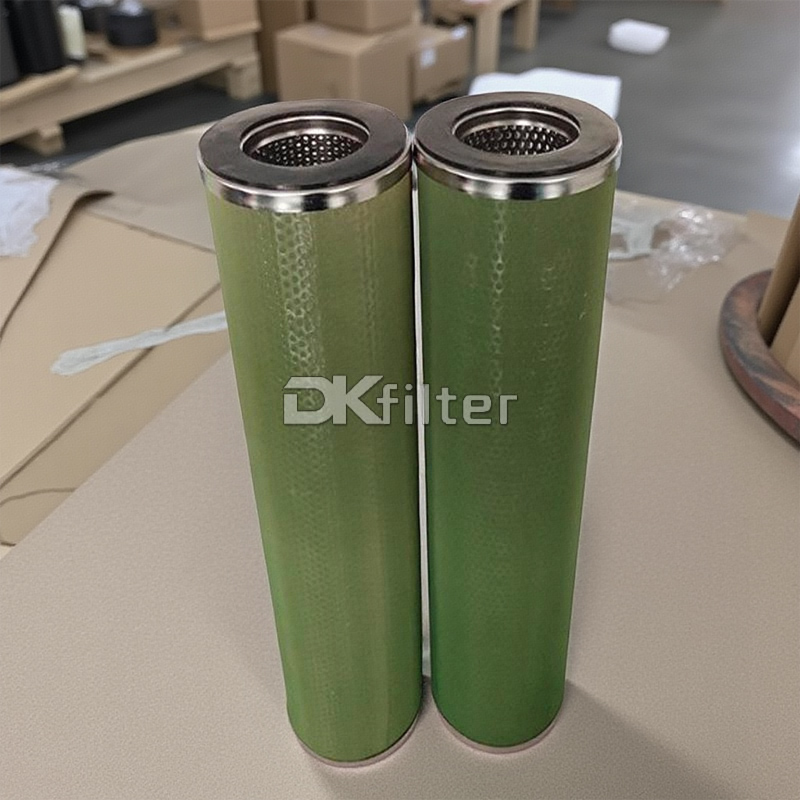

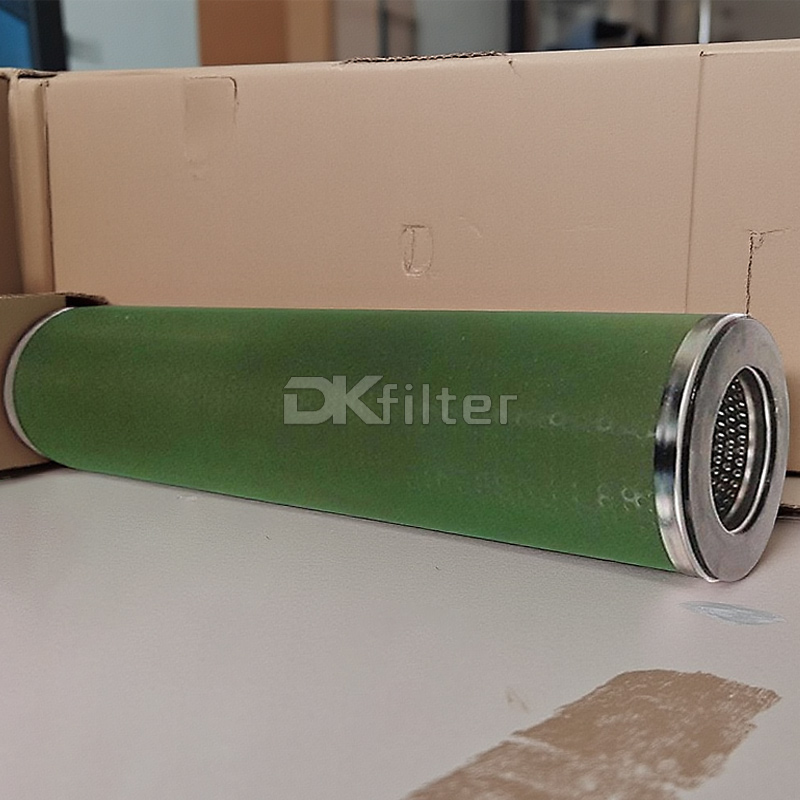

SM100-44FD-5 SM100 Series FACET Fuel Separator Filter Cartridge Replacement

SM100-44FD-5 is used to remove particulate contamination and free water from oil, fuel or other fluids and improves the required cleanliness standards of the fluids. SM100-44FD-5 separator filter can also be used for recycling and reusing waste liquids to avoid possible scaling and corrosion of downstream equipment.


General specifications

Quality:

Brand: DKFILTER

Model: SM100-44FD-5

Type: Oil Separator Filter Cartridge

Length: 44.0 inches

Inside Diameter: 3.5 inches

Outside Diameter: 6.0 inches

Filter material: Synthetic, Fiberglass

Center Tube: Corrosion Resistant Steel

Series: SM100-14FD-5, SM100-33FD-5, SM100-48FD-5, SM100-30FD-5, SM100-11FD-5 more

Introduction:

SM100-44FD-5 oil liquid separator filter cartridge is used to remove particulate contaminants and free water from oil, fuel or other fluids. SM100-44FD-5 SM100 series separator filter is used as the second stage in the filter separator container to ensure the required cleanliness standards of the fluid.

We make SM100-44FD-5 fuel separator use high-quality Teflon, it is a cleanable, reusable, and highest quality separation filter element available in a variety of size configurations. The coated filter is wrapped in a treated perforated metal shell that is stitched folded and secured with metal clips. The screen is coated with Teflon for more effective water resistance, ensuring long-term trouble-free use.


Performance Parameters:

ItemValue
Length44.0 inches
Outside Diameter6.0 inches
Inside Diameter3.5 inches
Filtration accuracy......99.9%
pH range4 - 9
Max Temperature200°F
SealBuna-N
Filter MaterialTeflon, Pleated Paper
Center TubeCorrosion Resistant Steel


Performance Parameters:

• Green Teflon coated.

• Nitrile rubber gasket.

• High corrosion resistant stainless steel center tube.

• High corrosion resistant stainless steel mesh on the outside.


Filter Material:

Our Manufactured SM100-44FD-5 separator filter cartridge uses high-performance Teflon filter material. Moisture resistance: the surface of Teflon does not stick to water and oil. If there is dirt, can be removed by simply wiping it. Temperature resistance: does not become brittle at freezing temperatures and does not melt at high temperatures. Wear resistance: smooth surface has a very low coefficient of friction. Corrosion resistance: almost immune to any kind of chemical corrosion.

SM100-44FD-5 SM100 Series FACET Fuel Separator Filter Cartridge Replacement


Test Standards:

Before delivery, Our manufactured SM100-44FD-5 oil separator filter will be tested and follow the standards:

ISO 2941 Collapse & Burst Resistant

ISO 2942 Fabrication & Integrity Test

ISO 2943 Material Compatibility with Fluids

ISO 3724 Flow Fatigue Characteristics

ISO 3968 Pressure Drop vs. Flow Rate

ISO 16889 Multi-pass Performance Testing


Customized Processing:

We corporation are excellent separator cartridge filter manufacturer

Parker & Velcon

PECO & Facet

Faudi

Pall

Other types are available on request


Related Specification Filters

SM100-324FA-5 SM100-412FC-5 SM100-415FB-5 SM100-417FB-5 SM100-422FC-5 SM100-424FB-5
SM100-430FB-5 SM100-432FC-5 SM100-436FB-5 SM100-09FB-5 SM100-09FF-5 SM100-11FD-5
SM100-12FB-5 SM100-14FD-5 SM100-16FD-5 SM100-18FB-5 SM100-22FD-5 SM100-24FB-5
SM100-24FE-5 SM100-24FF-5 SM100-29FD-5 SM100-30FB-5 SM100-30FD-5 SM100-30FE-5
SM100-30FF-5 SM100-33FB-5 SM100-33FD-5 SM100-36FD-5 SM100-36FE-5 SM100-36FF-5
SM100-38FD-5 SM100-40FD-5 SM100-40FE-5 SM100-40FF-5 SM100-43FB-5 SM100-43FD-5
SM100-44FB-5 SM100-44FD-5 SM100-44FE-5 SM100-44FF-5 SM100-48FD-5 SM100-48FF-5
SM100-56FB-5 SM100-56FF-5 SM100-48FF-5 SM100-18FB-5 SM100-436FB-5 SM100-29FD-5
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
