Introduction:
MPI-643-0.5SB coalescing filter element is primarily used to coalesce emulsified water and remove viscous contaminant particles from hydrocarbon fluids. The largest single application is the filtration of aviation jet fuel. We make MPI-643-0.5SB fuel coalescer filter with high-density glass fiber media or a combination of glass fiber and pleated media materials, it achieves deep filtration of oil fluids and ensures smoother operation of mechanical equipment.
Performance Parameters：
| Item | Value |
|---|
| Length | 45.0 inches |
| Outside Diameter | 6.0 inches |
| Inside Diameter | 3.25 inches |
| Filtration accuracy | 99.9% |
| PH Range | 5 - 9 |
| Changeout pressure difference | 15psi 1bar |
| Maximum pressure difference | 75psi 5.2 bar |
| Maximum Operating Temperature..... | 66-71°C, 150-160°F |
| Seal | Buna-N |
| End Caps Configuration | Threaded Base |
| Filter material | Multilayer Fiberglass, Pleated Paper |
Performance Features:
• Used as the first-stage filter element of the filter/separator.
• The material is high-density glass fiber and pleated paper media.
• Simplified nuts, covers, center plates, washers, easy installation and replacement.
• Adopting a single optimized structure, reducing the number of supporting components such as washers and seals.
Filter Material:

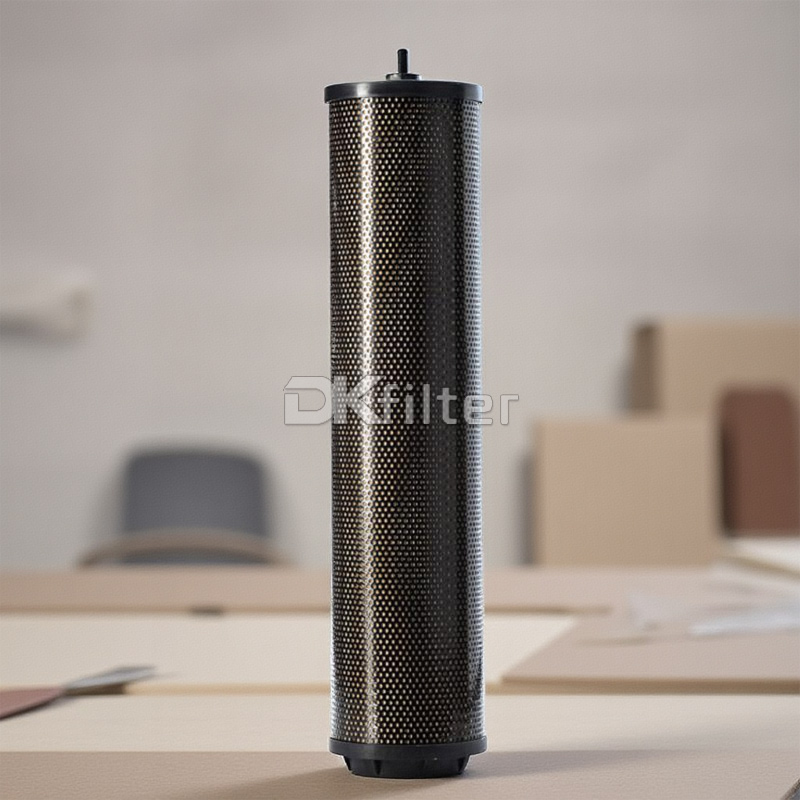

We make MPI-643-0.5SB aviation fuel coalescing filter cartridge use glassfiber and pleated paper media aggregator combines deep particle filtration with deep coalescence structure. These cartridges can be provided with either a perforated paper or expandable metal outer wrap if required.
• Use pleated ripples and separate materials to keep the pleats open for full use.
• The composite glass fiber and fold medium coalescers mainly remove particles from high surface area fold cores.
• Have one or more layers of pleated media inside molded fiberglass laminated cylinders to provide a larger particle filtration surface area.
Test Standards:
Before delivery, Our manufactured MPI-643-0.5SB coalescer filter cartridge will be tested and follow the standards:
ISO 2941 Collapse & Burst Resistant
ISO 2942 Fabrication & Integrity Test
ISO 2943 Material Compatibility with Fluids
ISO 3724 Flow Fatigue Characteristics
ISO 3968 Pressure Drop vs. Flow Rate
ISO 16889 Multi-pass Performance Testing
Customized Processing:
We corporation are excellent coalescer cartridge filter manufacturer
Parker & Velcon
PECO & Facet
Faudi
Pall
Other types are available on request
MPI-643-0.5SB MPI Series Coalescer Cartridge Filter Element
