Introduction:
SM-436FB-5 facet separator filter cartridge is used to filter water and solid impurities in oil and fuel. Through coalescence and demulsification, water, grease and solid particles are separated and coalesced into larger water droplets. Purified media improves combustion efficiency, avoids clogging, and protects instruments and equipment. For gas filtration and coalescence separation in chemical plants, petrochemical plants, offshore sectors and power stations.
Structure Parameters:
| Item | Value |
|---|
| Length | 36.0 inches |
| Outside Diameter..... | 4.5 inches |
| Inside Diameter | 3.5 inches |
| Change-out pressure | 25 psid |
| Max. Operating Collapse | 75 psid |
| Filter Material | Teflon |
| Seal | Buna-N |
| End Caps | Corrosion Resistant Steel |
| Center Tube | Corrosion Resistant Steel |
Performance Features:
Our SM-436FB-5 fuel separator filters are manufactured to meet or exceed OEM filter requirements
• Field-proven performance.
• Teflon-coated screen: Low flow resistance, high separation efficiency.
• Coated steel components: Resistant to corrosion from most industrial fluids.
• High compressive strength: Heavy-duty carbon steel end caps and center tube.
• Large surface area: High flow rates, low initial pressure drop, maximum contaminant holding capacity.
Structure Material:
• Buna-N washers
• Teflon-coated screens
• Plated steel provides strong support and stability
• Treated metal parts provide protection against corrosion
Filter Material:
We make SM-436FB-5 oil separator filter cartridge uses high-performance Teflon filter material. Moisture resistance: the surface of Teflon does not stick to water and oil. If there is dirt, can be removed by simply wiping it. Temperature resistance: does not become brittle at freezing temperatures and does not melt at high temperatures. Wear resistance: smooth surface has a very low coefficient of friction. Corrosion resistance: almost immune to any kind of chemical corrosion.
Test Standards:
Before delivery, Our manufactured SM-436FB-5 oil fuel separator filter will be tested and follow the standards:
ISO 2941 Collapse & Burst Resistant
ISO 2942 Fabrication & Integrity Test
ISO 2943 Material Compatibility with Fluids
ISO 3724 Flow Fatigue Characteristics
ISO 3968 Pressure Drop vs. Flow Rate
ISO 16889 Multi-pass Performance Testing

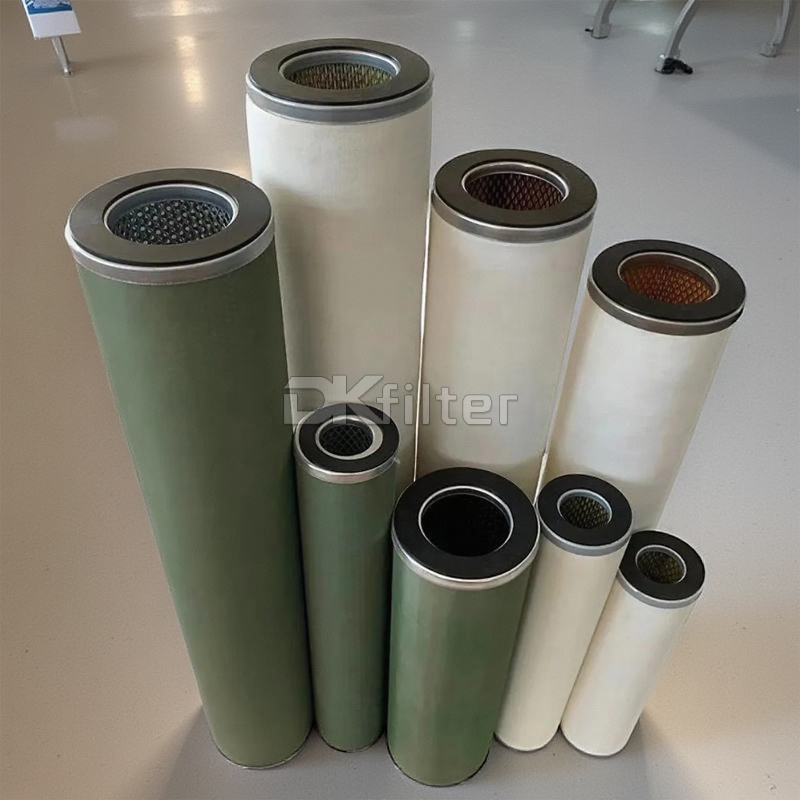

Customized Processing:
We corporation are excellent separator cartridge filter manufacturer
Parker & Velcon
PECO & Facet
Faudi
Pall
Other types are available on request

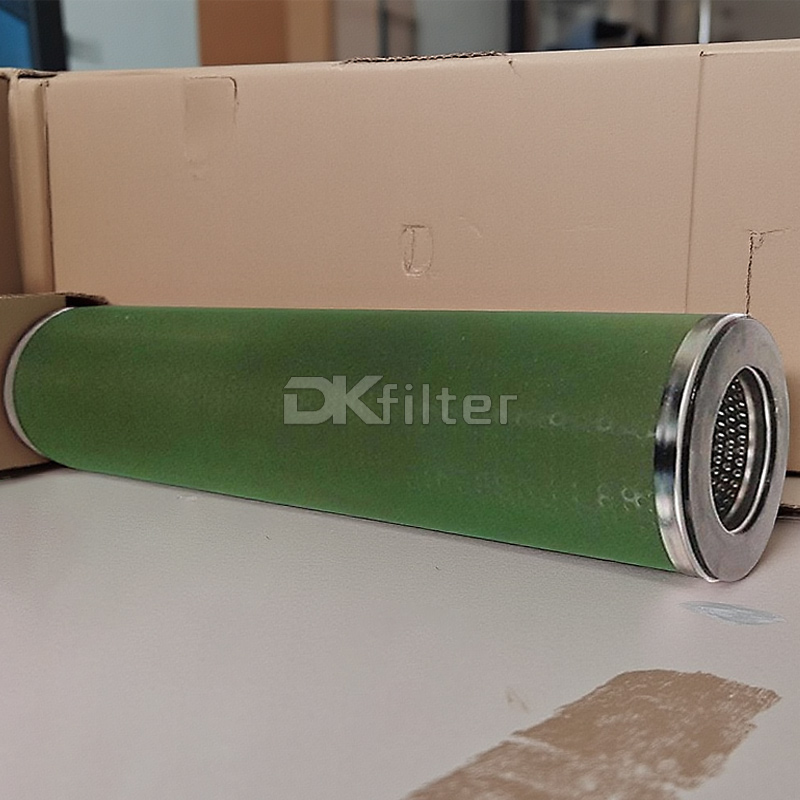

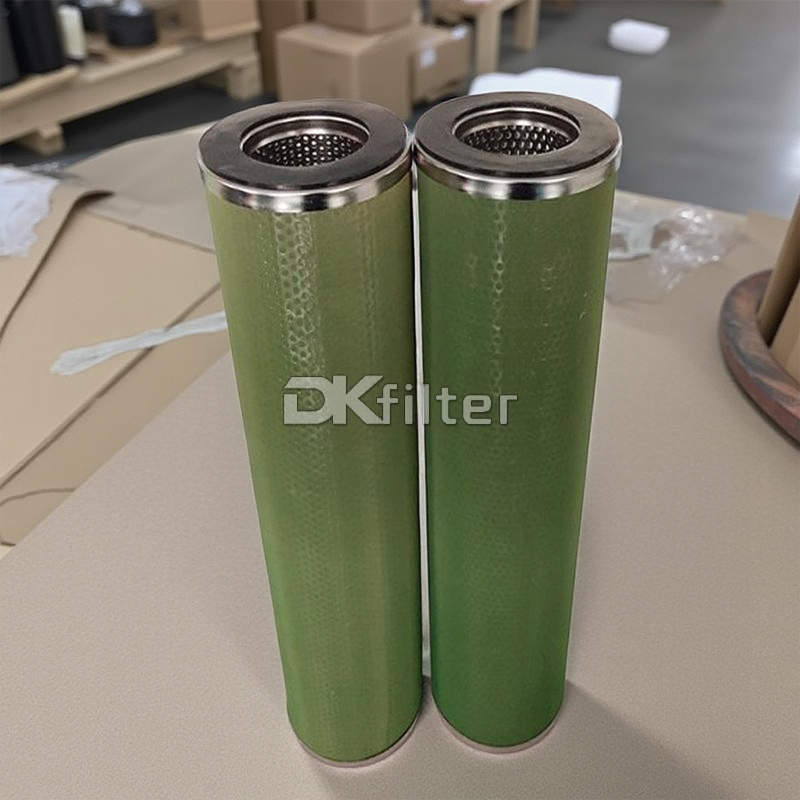

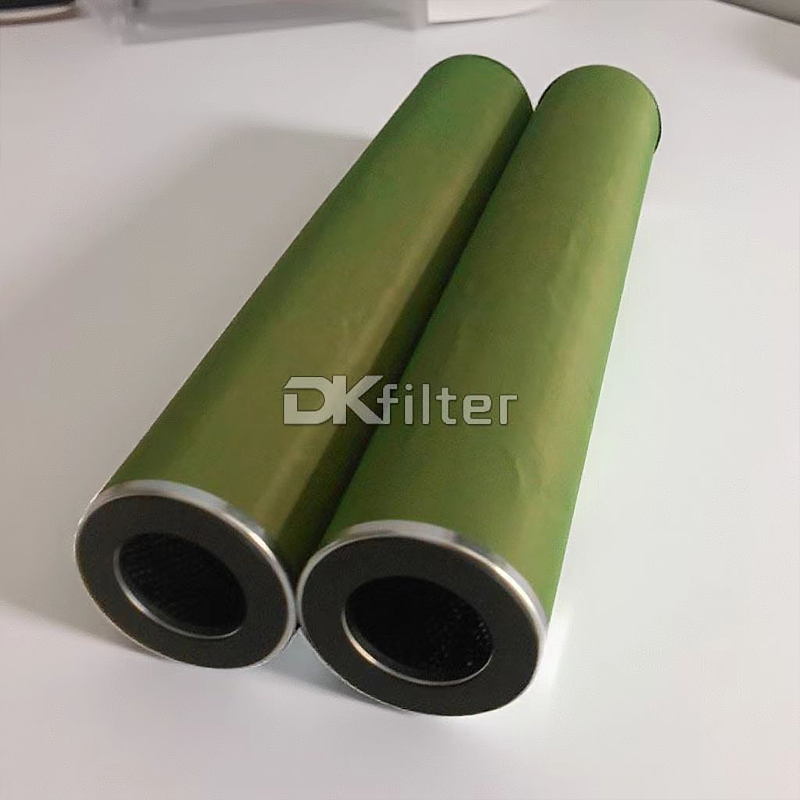

SM-436FB-5 FACET Separator Filter Cartridge Replacement
