Introduction:
PFS1001ZMH13 pall gas coalescing cartridge filter replaces can eliminate oil, water and dirt in the air or gas. and is made of composite materials such as wrinkled glass fiber and processed through special processes. PFS1001ZMH13 coalescing cartridge filter can not only filter out mechanical impurities in the medium, but also remove emulsified water in the medium through demulsification and coalescence. PFS1001ZMH13 coalescing cartridge is a strong, cheap and efficient filter.
Performance Parameters：
| Item | Value |
|---|
| Length | 247.7mm |
| Inside Diameter | 24mm |
| Outside Diameter | 69.9mm |
| Filtration accuracy | 0.3µm |
| Carton Weight | 7.0pounds |
| Clean Saturated Pressure Drop | 1.5psid(103.4mbard)..... |
| Changeout Pressure Differential | 50psid(3.4bard) |
| Filter Material | Fiberglass |
| End Caps..... | Stainless Steel. |
Performance Features:
• External Cage: Media support during operation is provided by a 304 stainless steel external support cage.
• Positive Seal: Standard seal material is nitrile (H13), available as an internal o-ring or flat gasket, depending on coalescer size.
• End Cap: 304 stainless steel end cap is used to increase the strength of the filter element and prevent contaminants from bypassing.
• External Drainage Layer: A polymeric external drainage layer provides drainage of coalesced liquids and protection against re-entrainment.
• Metal Support Core: Perforated internal support core provides axial strength and liquid-proof plug protection and is constructed of 304 stainless steel.
• Primary Coalescer: Coalescing is achieved through the use of a high-area pleated fiberglass media surrounded by a nonwoven polymer support and drainage layer.
Filter Material:
We make PFS1001ZMH13 pall gas coalescer replacement uses a single unit structure to reduce the number of gaskets and improve overall reliability. I-62887TB coalescer have one or more layers of pleated media inside molded fiberglass laminated cylinders to provide a larger particle filtration surface area. Use pleated ripples and separate materials to keep the pleats open for full use.
• The composite glass fiber and fold medium coalescers mainly remove particles from high surface area fold cores.
• All glassfiber media aggregator combines deep particle filtration with deep coalescence structure.
• The all-glass fiber design has a continuous thinner dielectric layer to achieve deep filtration of particles.
Performance Advantages:
• Protection process analyzer.
• Reduce fouling on small gas engines.
• Reduce corrosion and freezing problems.
• Protect instrument pneumatic equipment and systems.
• Preventing clogging of orifices in pneumatic controllers.
• Improve the accuracy of gas measurements in the field or factory.
• Provide repeatable, high-quality gas for all operations using produced gas.
Test Standards:
Before delivery, Our manufactured PFS1001ZMH13 fuel gas coalescer element will be tested and follow the standards:
ISO 2941 Collapse & Burst Resistant
ISO 2942 Fabrication & Integrity Test
ISO 2943 Material Compatibility with Fluids
ISO 3724 Flow Fatigue Characteristics
ISO 3968 Pressure Drop vs. Flow Rate
ISO 16889 Multi-pass Performance Testing
Customized Processing:
We corporation are excellent coalescers cartridge filter manufacturer
Parker & Velcon
PECO Facet
Faudi
Pall
Other types are available on request

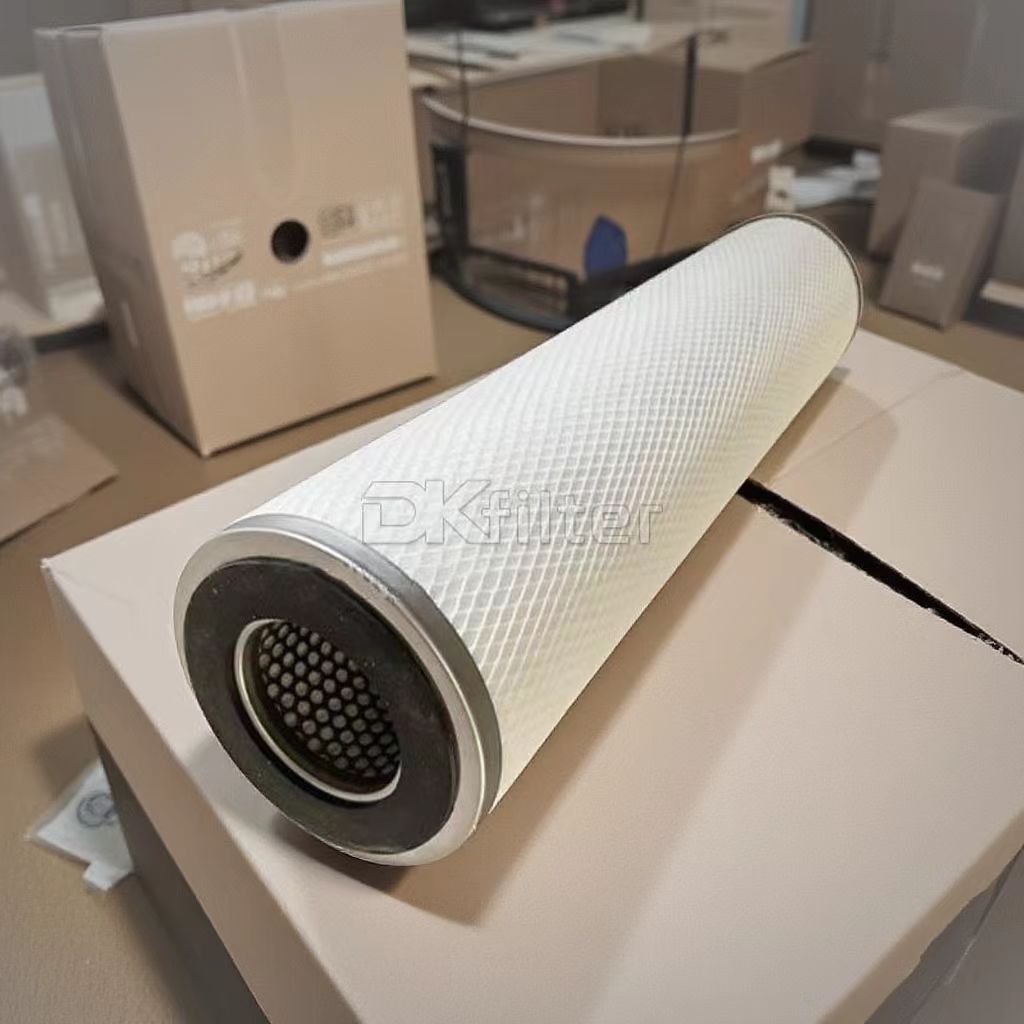

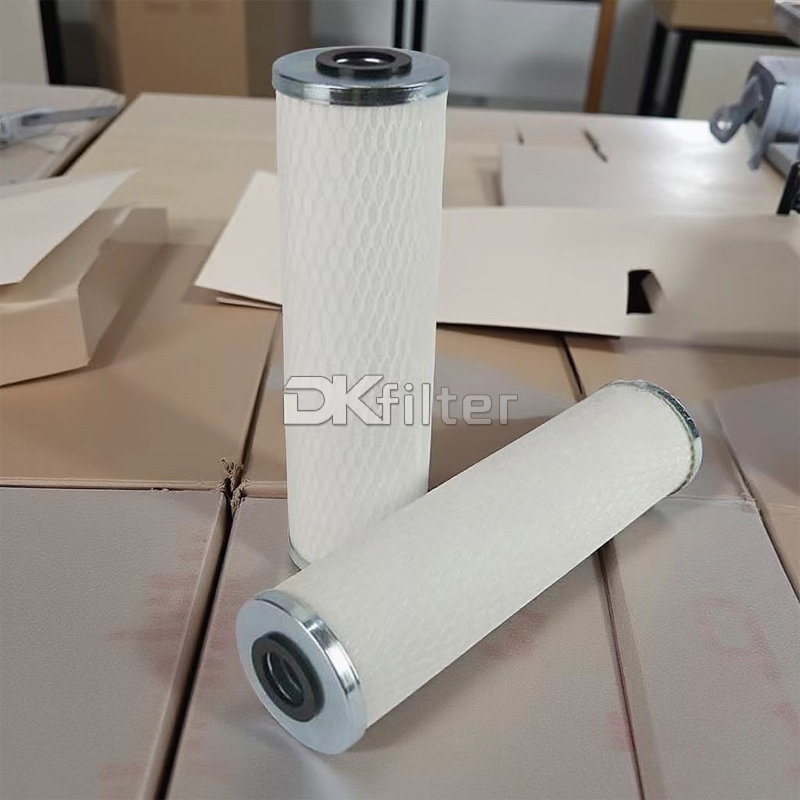

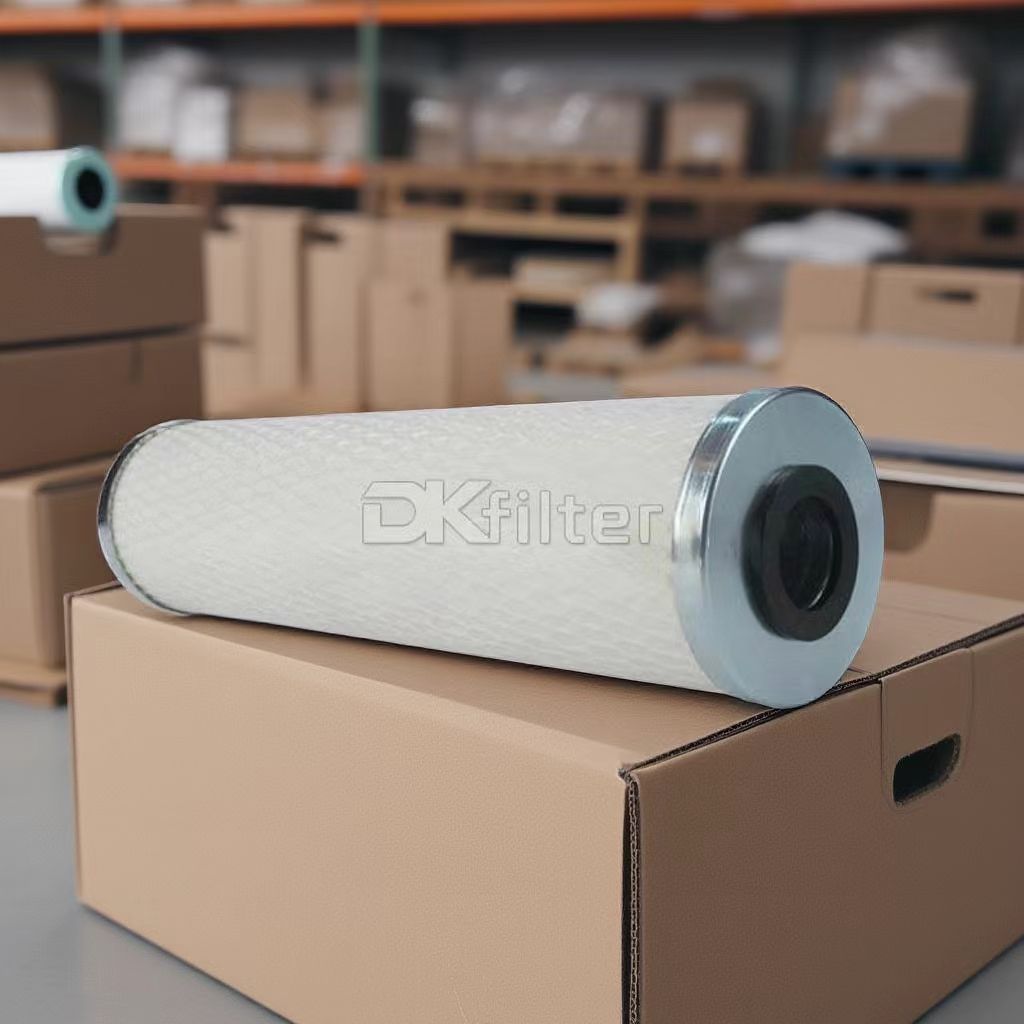

PFS1001ZMH13 Gas Coalescing Cartridge Filter
