P951281-000-480 Donaldson Air Filter Cartridge

DKFILTER supplies Donaldson Air Filter Cartridge P951281-000-480 replacement exactly.The filter media is durablemoisture and high temperature resistantand pulse cleanable.It delivers superior filtration efficiencyexcellent pulse cleaning effectivenessand low resistance to airflow throughout the life of the filter.


General specifications

Quality:

Brand: DKFILTER

Model: P951281-000-480

Filter type: Air Filter Cartridge

Length: 26.00 inches

Outer Diameter: 13.84 inches

Inner Diameter: 9.48 inches

Filter Area: 23.60 m²(254 ft²)

Construction : Corrosion Resistant CS/AL

Series: P191280, P030168, P199710, P191236, P030192 more

Introduction:

DKFILTER supplies different air filter elements:Cellulose filter cartridge,polyester filter cartridge,PTFE membrane filter cartridge,welding&cutting filter cartridge, Antistatic filter cartridge.Fire Retardant filter cartridge, spraying&Blasting filter cartridge.

DKFILTER supplies Donaldson Air Filter Cartridge P951281-000-480 replacement exactly.The filter media is durable,moisture and high temperature resistant,and pulse cleanable.It delivers superior filtration efficiency,excellent pulse cleaning effectiveness,and low resistance to airflow throughout the life of the filter.


Technical data:

ItemSpecifications
Filter Area23.60 m²(254 ft²)
Media TypeFibra-Web
Temperature Limit82 °C (180 °F)
LinerNo
End Cap ConstructionOpen/Open
ShapeOval
Pleat Height38mm (1.50inch)
Anti-StaticNo
Flame RetardantNo


More Relatied Model:

P191461, P191726

P191767, P190949

P191031, P191744

P191310, P191399

P191234, P191006

P181188, P181189

P191772, P030172

P181188, P181189


Filter Material:

We make P951281-000-480 donaldson air filter cartridge use a single unit structure to reduce the number of gaskets and improve overall reliability. P951281-000-480 air cartridge filter have one or more layers of pleated media inside molded fiberglass laminated cylinders to provide a larger particle filtration surface area. Use pleated ripples and separate materials to keep the pleats open for full use.

• The composite glass fiber and fold medium coalescers mainly remove particles from high surface area fold cores.

• All glassfiber media aggregator combines deep particle filtration with deep coalescence structure.

• The all-glass fiber design has a continuous thinner dielectric layer to achieve deep filtration of particles.

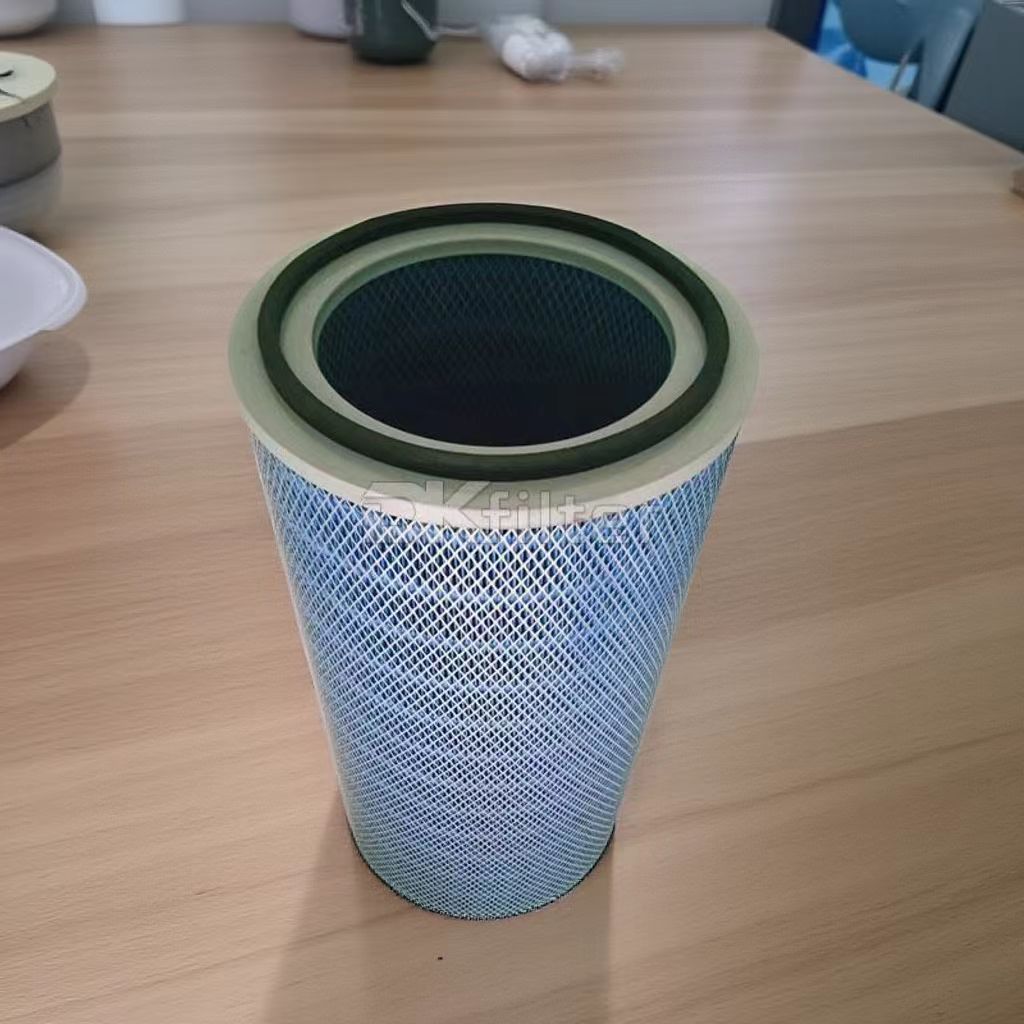

P951281-000-480 Donaldson Air Filter Cartridge


Applications

• Chemical and petrochemical industry

• Pharmaceutical industry

• Food & beverage

• Plastic industry

• Process filtration

• Instrumentation air


Test Standards:

Before delivery, Our manufactured P951281-000-480 air filter cartridge will be tested and follow the standards:

ISO 2941 Collapse & Burst Resistant

ISO 2942 Fabrication & Integrity Test

ISO 2943 Material Compatibility with Fluids

ISO 3724 Flow Fatigue Characteristics

ISO 3968 Pressure Drop vs. Flow Rate

ISO 16889 Multi-pass Performance Testing


Customized Processing:

We corporation are excellent air cartridge filter manufacturer

Parker & Velcon

PECO & Facet

Faudi

Pall

Other types are available on request


Related Specification Filters

Item Specifications
Outer Diameter 352 mm (13.84 inch)
Length 660 mm (26.00 inch)
Inner Diameter 241 mm (9.48 inch)
Filter Area 23.60 m² (254 ft²)
Media Type Anti-Static
Temperature Limit 82 °C (180 °F)
Liner Yes
End Cap Construction Open/Open
Construction Galvanized
Shape Round
Pleat Height 51 mm (2.00 inch)
Anti-Static Yes
Flame Retardant Yes

More filters code number:

P030025 P030166 P030174 P191177 P191607 P191701
P191772 P030172 P191033 P030192 P191772 P030179
P191961 P191280 P030168 P199710 P191236 P191037
P191617 P191463 P191595 P191713 P191462 P191790
P191461 P191726 P191767 P190949 P191031 P191744
P191310 P191399 P191234 P191006 P181188 P181189
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
