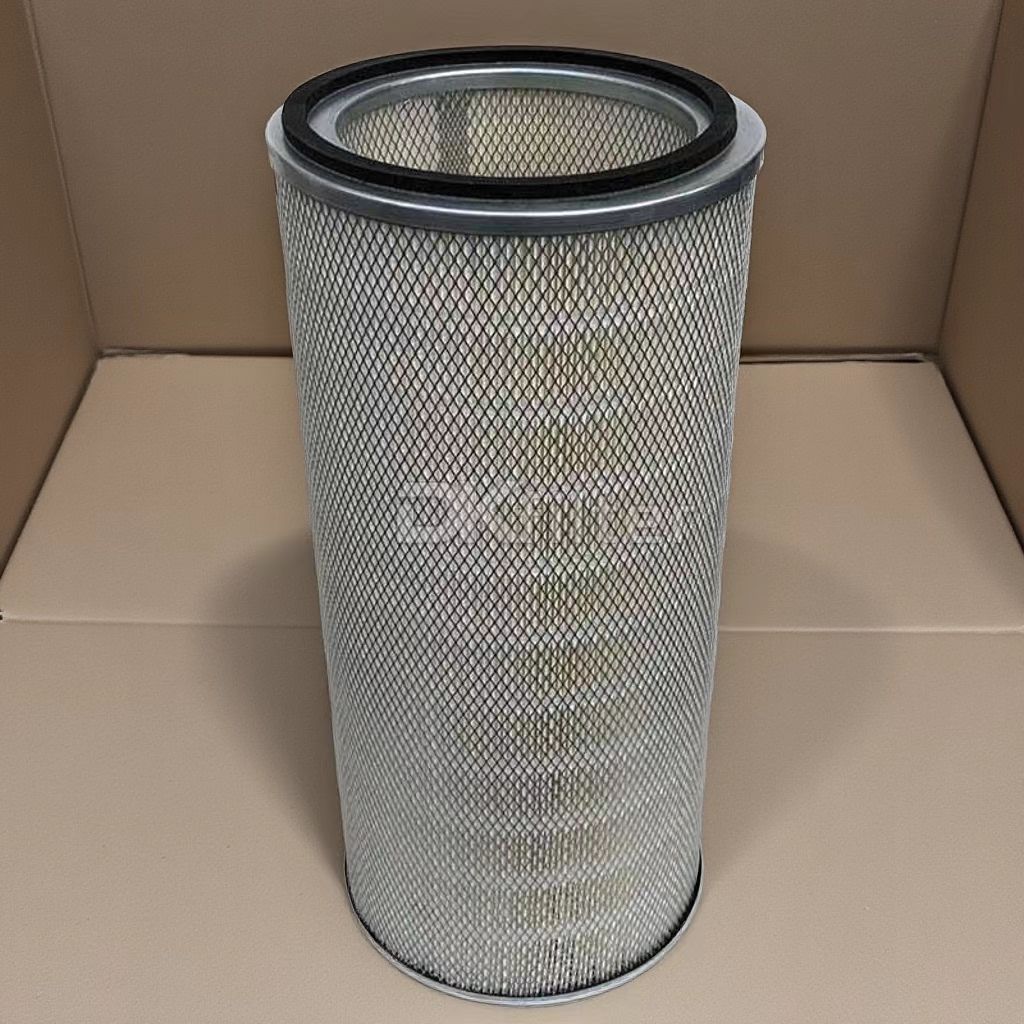

P124866 Donaldson Safety Air Filter Cartridge

DKFILTER makes the replacement of P124866 Donaldson safety air filter cartridge P124866 acts as a backup to the primary filter and to protect the engine during primary filter servicing.The P124866 filter media is durablemoisture and high temperature resistantand pulse cleanable.It delivers superior filtration efficiencyexcellent pulse cleaning effectivenessand low resistance to airflow throughout the life of the filter.

General specifications

Quality:

Brand: DKFILTER

Model: P124866

Type: Donaldson Safety Air Filter

Length: 18.00 inches

Outer Diameter: 8.65 inches

Inner Diameter: 7.06 inches

Filter Media: Fiberglass

Construction Frame: Corrosion Resistant CS/AL

Series: P030904-000-111, P030915-000-111, P148646-016-340 more

Inquire

Product Details Related Specification Filters Communication Requirements

Description:

DKFILTER makes P124866 Donaldson safety air filter cartridge replacement ,which acts as a backup to the primary filter and to protect the engine during primary filter servicing.

• Serve as a backup filter in case of primary filter damage or improper installation.

• Prevent contaminants from entering the clean side of the air intake system during primary filter servicing.

• Designed to plug rapidly if contamination finds its way past the primary filter,alerting operators about an issue.

• Recommend that safety filters are replaced with every third primary filter change unless there has been a failure of the primary filter.

Technical Data:

Item	Specifications
Outer Diameter	219.6mm (8.65 inch)
Length	457.2 mm (18.00 inch)
Inner Diameter	179.2mm (7.06 inch)
Bolt Hole Diameter	22.73(0.98 inch)
Media Type	Safety
Liner	No
End Cap Construction	Open/Closed
Shape	Round
Anti-Static	No
Flame Retardant	No

More Relatied Model:

033779-016-433, P033786-000-111

P034078-016-142,P522963-016-340

P527078-000-111, P527080-016-142

P191321-016-433, P191322-016-433

P191508-016-431, P191550-016-340

P191666-016-433, P521420-016-436

P034078-016-142, P034079-016-142

Filter Material:

We make P124866 donaldson air filter cartridge use a single unit structure to reduce the number of gaskets and improve overall reliability. P124866 air cartridge filter have one or more layers of pleated media inside molded fiberglass laminated cylinders to provide a larger particle filtration surface area. Use pleated ripples and separate materials to keep the pleats open for full use.

• The composite glass fiber and fold medium coalescers mainly remove particles from high surface area fold cores.

• All glassfiber media aggregator combines deep particle filtration with deep coalescence structure.

• The all-glass fiber design has a continuous thinner dielectric layer to achieve deep filtration of particles.

P124866 Donaldson Safety Air Filter Cartridge

Applications

• Chemical and petrochemical industry

• Pharmaceutical industry

• Food & beverage

• Plastic industry

• Process filtration

• Instrumentation air

Test Standards:

Before delivery, Our manufactured P124866 air filter cartridge will be tested and follow the standards:

ISO 2941 Collapse & Burst Resistant

ISO 2942 Fabrication & Integrity Test

ISO 2943 Material Compatibility with Fluids

ISO 3724 Flow Fatigue Characteristics

ISO 3968 Pressure Drop vs. Flow Rate

ISO 16889 Multi-pass Performance Testing

Customized Processing:

We corporation are excellent air cartridge filter manufacturer

Parker & Velcon

PECO & Facet

Faudi

Pall

Other types are available on request

Related Specification Filters

P030904-000-111	P030915-000-111	P031790-016-142	P031792-016-142	P031851-016-436	P033063-016-142
P033741-016-436	P033742-016-142	P033779-016-433	P033786-000-111	P034078-016-142	P034079-016-142
P034079-016-436	P034081-016-142	P034976-016-142	P129196-016-340	P131912-000-111	P134507-000-111
P145891-016-142	P148646-016-340	P151244-016-142	P155248-000-111	P190911-000-111	P191194-000-111
P191321-016-433	P191322-016-433	P191508-016-431	P191550-016-340	P191666-016-433	P521420-016-436
P522193-016-142	P522963-016-340	P527078-000-111	P527080-016-142
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
