Introduction:
• P032403-016-340 dust air filter is made of imported synthetic high-strength polyester long-fiber non-woven material.The fibers are smooth and tubular,and the fibers cross each other.The openings are smaller and the distribution is more uniform,which has good filtration performance.
• The P032403-016-340 filter element is mainly used to filter out metal particles and pollution impurities in the fluid medium,which can protect the normal operation of the equipment.
• When the fluid enters the oil filter,the impurities are blocked, and the clean filtrate is discharged from the filter outlet.
• When cleaning is required,just take out the filter element from the filter,treat it with industrial liquid and put it in,which is convenient and quick.
Technical data:
| Item | Specifications |
|---|
| Outer Diameter 1 | 11.36 inches |
| Outer Diameter 2 | 14.36 inches |
| Length | 26.00 inches |
| Inner Diameter 1 | 7.98 inches |
| Inner Diameter 2 | 10.98 inches |
| Filter Area | 8.27m² (89.00ft²) |
| Media Type | Fibra-Web |
| Temperature Limit | 82 °C (180 °F) |
| Liner | No |
| End Cap Construction | Open/Open |
| Shape | Oval |
| Pleat Height | 38mm (1.50inch) |
| Anti-Static | No |
| Flame Retardant | No |
More Relatied Model:
P033418-016-431, P034307-016-431
P191508-016-431, P031653-016-431
P191443-016-431, P031652-016-431
P034306-016-431, P191510-016-431
P191445-016-431, P199419-016-431
P191137-016-431, P031585-016-431
P199418-016-433, P199609-016-433
P032221-016-433, P033931-016-433
P191889-016-436, P191920-016-436
Filter Material:
We make P032403-016-340 donaldson air filter cartridge use a single unit structure to reduce the number of gaskets and improve overall reliability. P032403-016-340 air cartridge filter have one or more layers of pleated media inside molded fiberglass laminated cylinders to provide a larger particle filtration surface area. Use pleated ripples and separate materials to keep the pleats open for full use.
• The composite glass fiber and fold medium coalescers mainly remove particles from high surface area fold cores.
• All glassfiber media aggregator combines deep particle filtration with deep coalescence structure.
• The all-glass fiber design has a continuous thinner dielectric layer to achieve deep filtration of particles.
Advantages and benefits
• 45% greater filter media compared to standard elements
• Lower differential pressure
• Improved filtration efficiency
• Greater dirt-capturing capacity
• Fewer components required for a given gas flow
Test Standards:
Before delivery, Our manufactured P032403-016-340 high-efficiency air filter cartridge will be tested and follow the standards:
ISO 2941 Collapse & Burst Resistant
ISO 2942 Fabrication & Integrity Test
ISO 2943 Material Compatibility with Fluids
ISO 3724 Flow Fatigue Characteristics
ISO 3968 Pressure Drop vs. Flow Rate
ISO 16889 Multi-pass Performance Testing
Customized Processing:
We corporation are excellent compresse air cartridge filter manufacturer
Parker & Velcon
PECO & Facet
Faudi
Pall
Other types are available on request

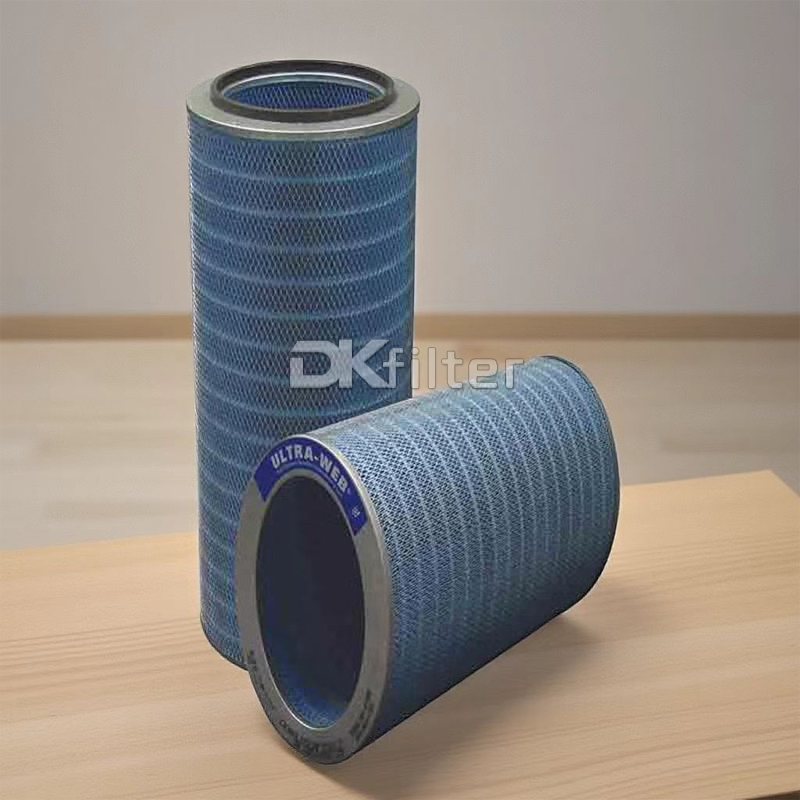

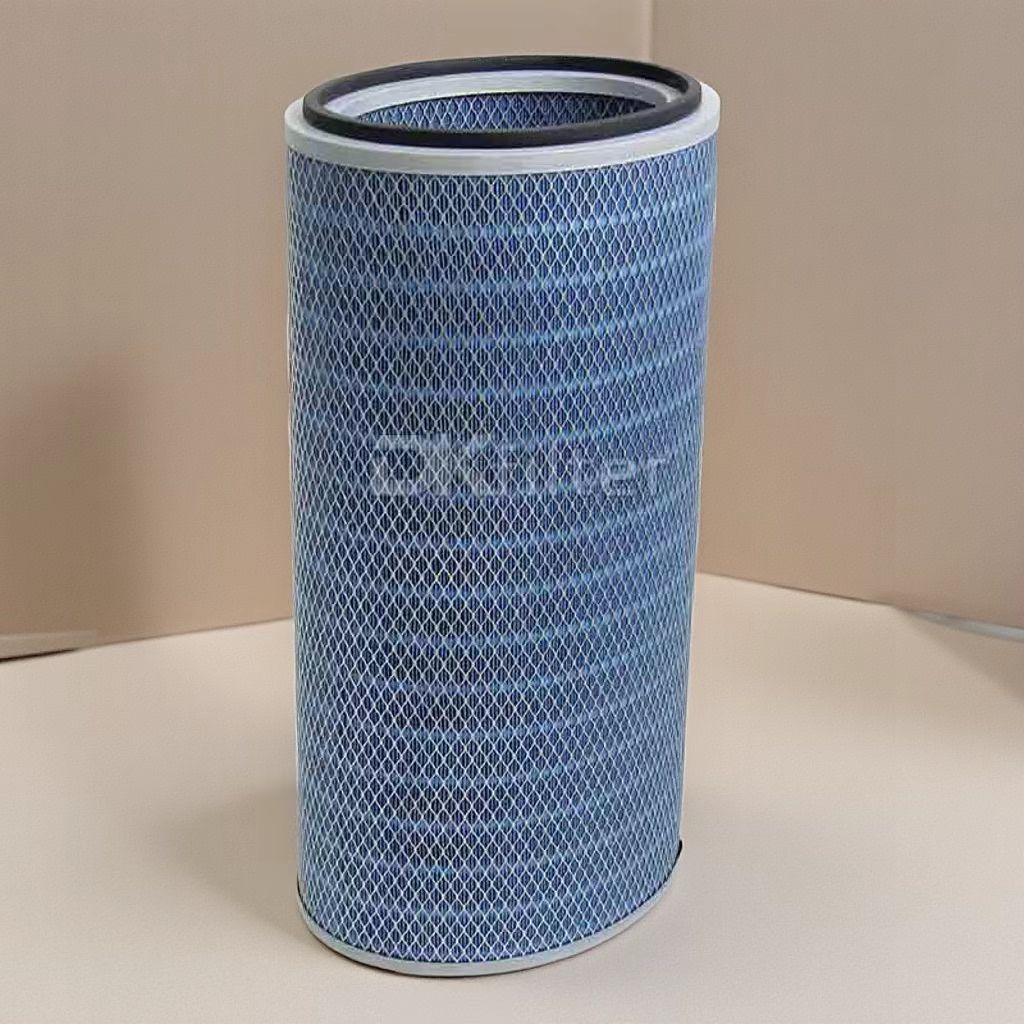

P032403-016-340 Donaldson Oval Air Filter Replacement
