Introduction:
1613-6105-00 Atlas Copco compressor oil air separator is used to remove contaminants that may enter the compressor and damage the unit,the oil itself must be filtered on a regular cycle first. This is done by installing a lubricating oil filter,either cartridge or spin-on,and then ensuring that all the oil is cleaned as it passes through the filter.
Performance Parameters:
| Item | Value |
|---|
| Filtration accuracy..... | 16 μm |
| Height | 210 mm |
| Outer Diameter | 96 mm |
| Thread | 1" x 12 UNF |
| Filter Material..... | Fiberglass |
| Gasket | Buna O-Ring |
| Collapse | 20 bar |
| Bypass Valve Opening Pressure.... | 2.5 bar..... |
| Center Tube | Corrosion Resistant Steel.... |
More Relatied Model:
1613-9503-00, 1613-9503-00, 2914-5029-00
1613-9785-00, 1612-7231-00, 2914-8663-00
1615-6959-01, 1615-9388-01, 2914-9300-00
1615-9464-02, 1619-2702-00, 2914-9302-00
1619-5489-00, 1621-0056-00, 2914-9304-00
1621-0547-99, 1621-5107-00, 2914-5021-00
1901-0002-29, 2200-6411-28, 2200-6411-28
2205-1068-02, 2205-1068-02, 1901-0002-29
Filter Structrue:
1613-6105-00 oil air separator filtration in the 5-25 micron range (depending on application), it’s again,the deposition of oil-borne contaminants over time (similar to oil separators),which causes the differential pressure of the oil filter to increase to a point where it must be replaced to continue to properly filter the compressor oil.
Filtration Curve:
1613-6105-00 oil air separator specific filtration levels are achieved through the exclusive use of advanced filtration media and consistent surface area control, obtained through strict maintenance of fold number and depth. A reliable seal obtained through plasticsol and epoxy encapsulation prevents leakage. Viton seals are used in typical applications of synthetic oils.
Our oil filters are built of the highest quality materials and workmanship,like all of our products.
We make 1613-6105-00 separator filter is Beta grade. Excellent filtration performance. The Beta X = 1000 number means that for every 1000 particles of size x in the fluid, on average only one particle will pass through the filter.
Test Standards:
Before delivery, Our manufactured 1613-6105-00 oil air separator element will be tested and follow the standards:
ISO 2941 Collapse & Burst Resistant
ISO 2942 Fabrication & Integrity Test
ISO 2943 Material Compatibility with Fluids
ISO 3724 Flow Fatigue Characteristics
ISO 3968 Pressure Drop vs. Flow Rate
ISO 16889 Multi-pass Performance Testing
Customized Processing:
We corporation are excellent oil air separator filter cartridge manufacturer
ATLAS COPCO Filters
INGERSOLL RAND Filters
SULLAIR Filters
COMPAIR Filters
FUSHENG Filters
LIU-TECH Filters
MANN Filters
Other types are available on request

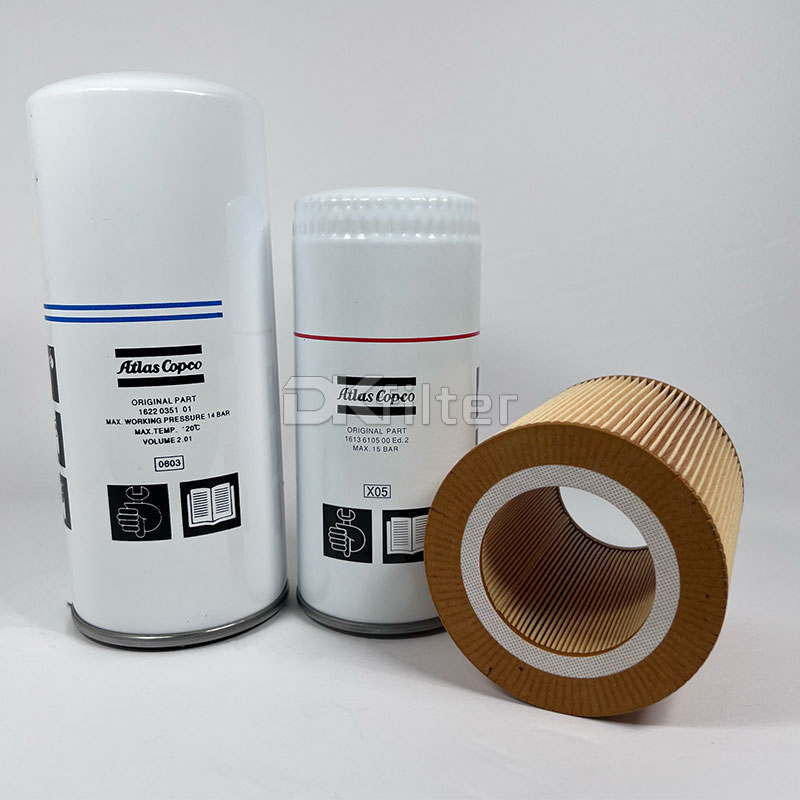

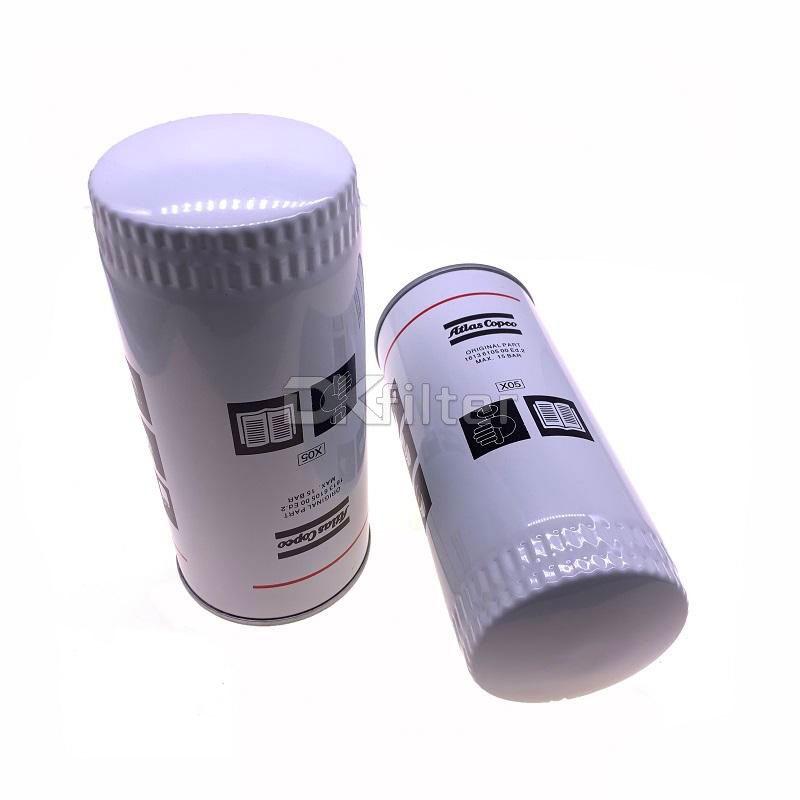

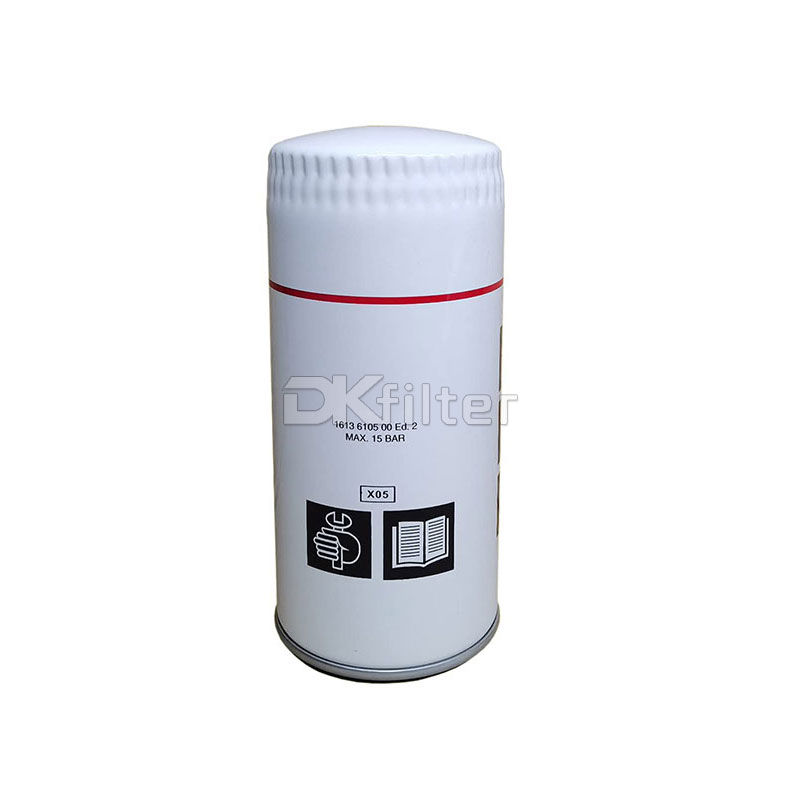

1613-6105-00 Atlas Copco air compressor oil filter element
