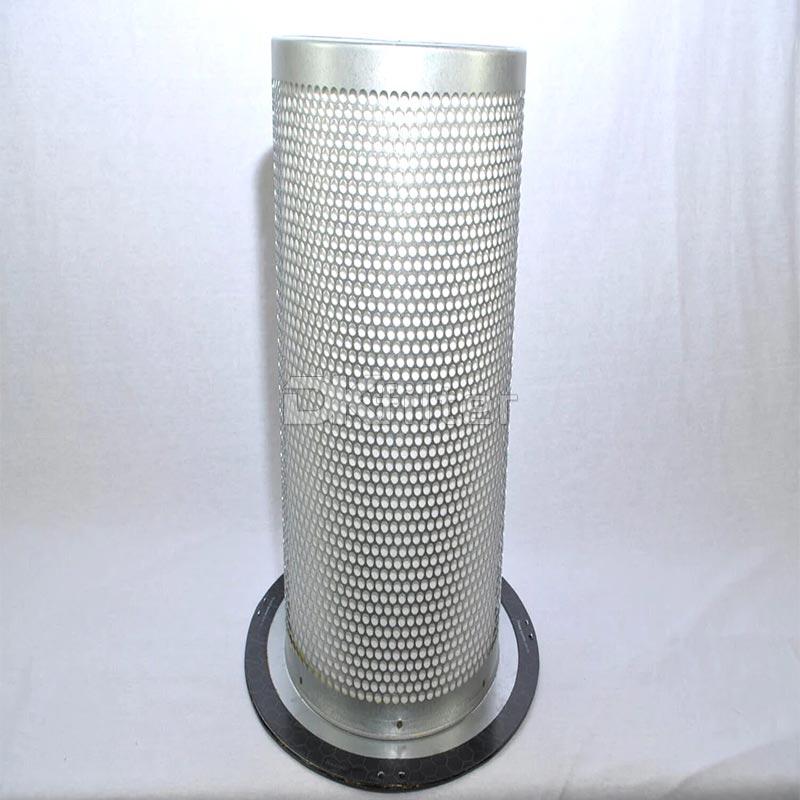

39831885 Ingersoll Rand Screw Air Oil Compressor Separator

39831885 air oil compressor separator is used to separate gaseous oil from compressed air. The manufacturing material is micron-grade glass fiber. The main function is to minimize the fuel consumption of the air compressor.


General specifications

Quality:

Brand: DKFILTER

Model: Ingersoll Rand Screw 39831885

Type: air oil compressor separator

Seal: Viton

Filter material: Fiberglass

End Caps: Corrosion Resistant Steel

Center Tube: Corrosion Resistant Steel

Series: 54595442, 23566938, 39831885, 39831888, 42545368 more

Introduction:

39831885 compressor air oil separator is used to separate gaseous oil from compressed air. The manufacturing material is micron-grade glass fiber. The main function is to minimize the fuel consumption of the air compressor. Collect the large oil droplets condensed in the gaseous oil, and finally return the accumulated oil to the compressor oil line.


Performance Parameters:

1. Initial saturation pressure drop:≤ 0.02MPa

2. Oil content after separation:≤5 ppm

3. Under the condition that the pressure drop is not greater than 0.1MPa,the oil and gas separator can be used for at least 4000 hours.

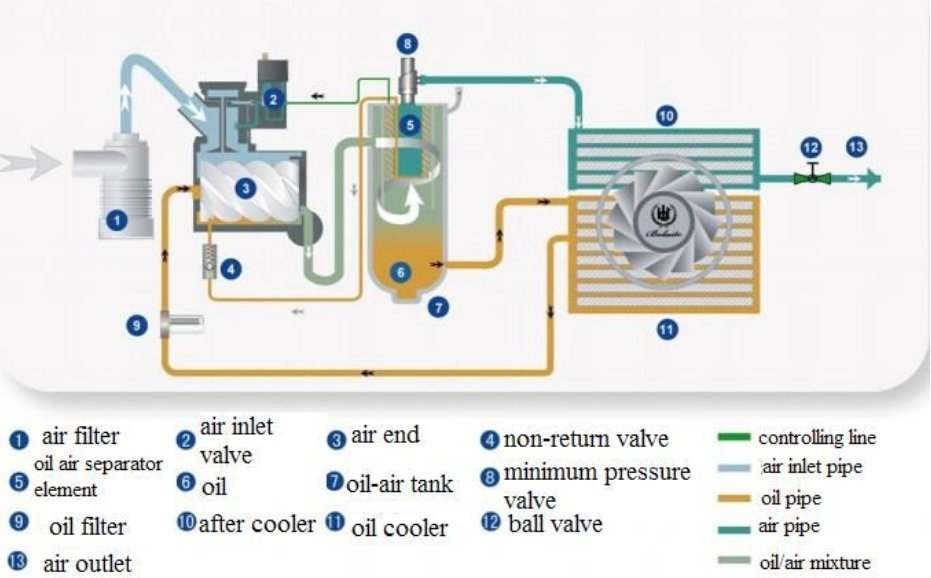

Working principle:

We make 39831885 compressor air oil separator uses micron grade glass fiber to separate gaseous oil from compressed air.The large oil droplets that coalesce from the gaseous oil will then gather under gravity.Finally,the accumulated oil is returned to the compressor oil circuit.In this regard,the micron separation minimizes the fuel consumption of the air compressor.

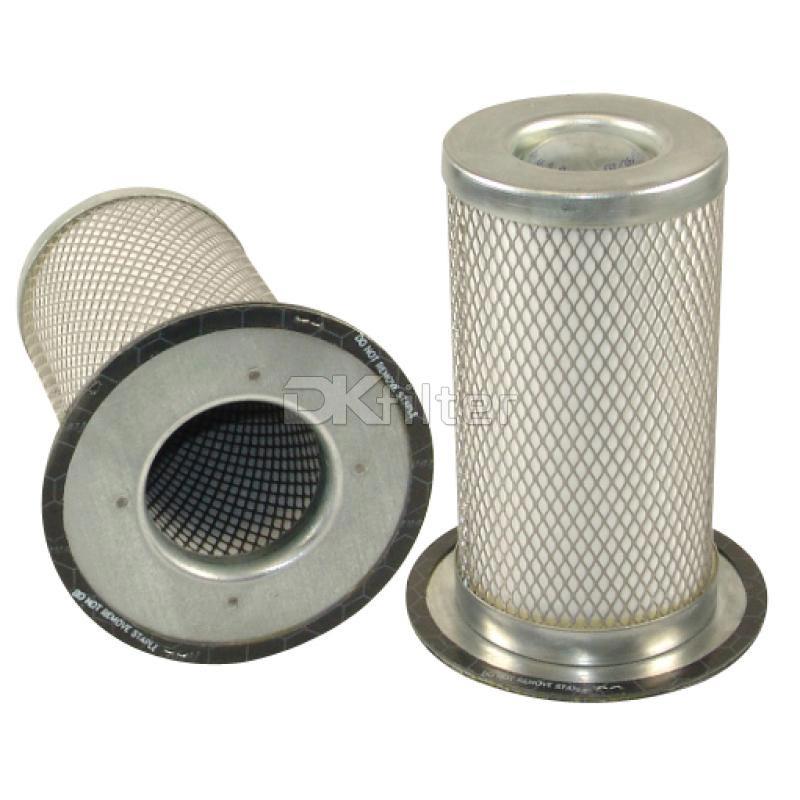

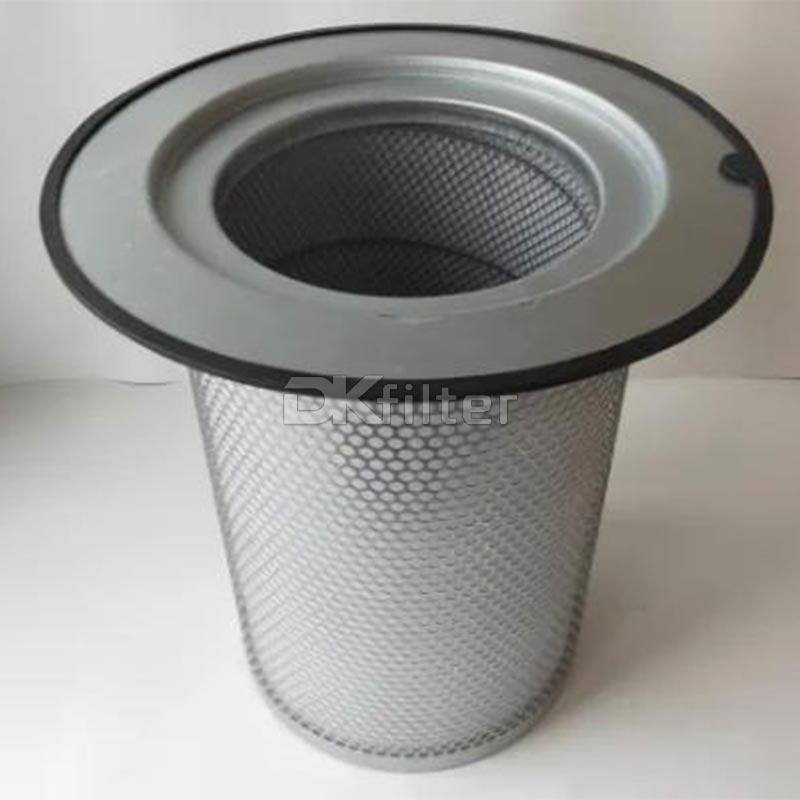

39831885 Ingersoll Rand Screw Air Oil Compressor Separator



Notes:

• The above parameters are obtained under rated working pressure and rated flow conditions.

• The maximum temperature does not exceed 120℃.

• The use of GB/T7631.9-1997 specified DAH lubricating oil.

• Oil content before separation does not exceed 3000ppm.


Test Standards:

Before delivery, Our manufactured 39831885 air oil separator cartridge will be tested and follow the standards:

ISO 2941 Collapse & Burst Resistant

ISO 2942 Fabrication & Integrity Test

ISO 2943 Material Compatibility with Fluids

ISO 3724 Flow Fatigue Characteristics

ISO 3968 Pressure Drop vs. Flow Rate

ISO 16889 Multi-pass Performance Testing


Customized Processing:

We corporation are excellent separator cartridge filter manufacturer

ATLAS COPCO Filters

INGERSOLL RAND Filters

SULLAIR Filters

COMPAIR Filters

FUSHENG Filters

LIU-TECH Filters

MANN Filters

Hitachi Filters

Kaeser Filters

Other types are available on request


Related Specification Filters

22388045 54720735 54749247 54595442 39831885 39831888
42545368 39751391 92890334 54749247 22242606 92754688
39895610 22089551 92754696 39737473 92871326 46501073
42841239 39831904 36876472 42542928 39894598 39863857
39894597 92722750 54601513 54601513 42862077 42841247
39739578 39831912 39863865 54509427 99277998 22219174
39831920 39760590 39863899 54509500 39890660 99245938
89285779 54509435 39863881 38008579 38008587 54639802
42542787 39863840 89202022 22402242 54721345 22111975
89285761 92765783 88181755 92699198 92062132
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
